Stanley Suspended

Office solutions · LED

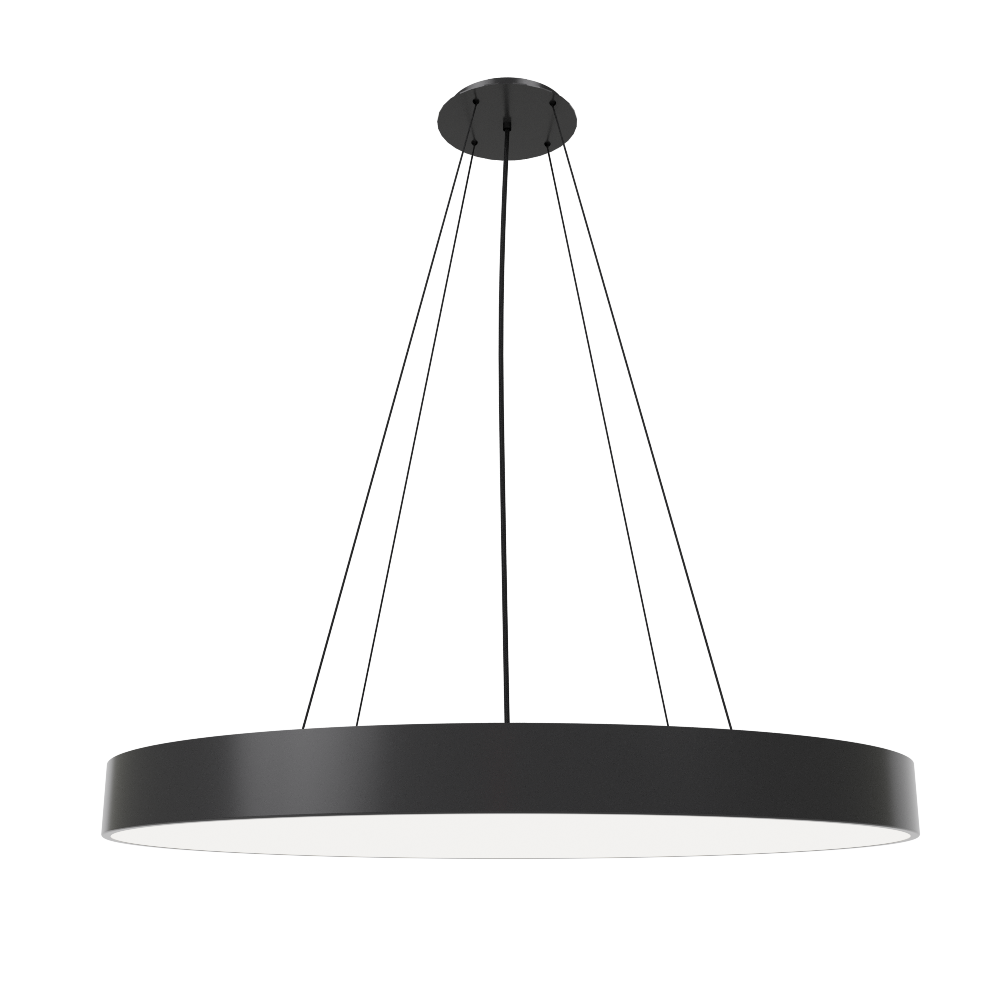

Stanley Suspended

https://www.arlistore.com/web/image/product.template/674/image_1920?unique=5f4599f

Stanley Suspended is a large pendant LED luminaire with high-quality LED source with 50,000 hours lifetime. Available in 5 sizes (500-1200mm), color temperature 4000K with CRI 80+. Pendant mounting with DALI control option available. Wide range of cable colors. High luminous flux up to 12,169 lm. Ideal for offices and large commercial spaces. 5-year warranty.

Technical specifications

Light Source
LED
CCT
4000K
CRI
80
Switching type
Non-dimmable , DALI
Wattage
40-160 W
Lumen output
3042-12169 lm
LED
220 - 240V AC, 50/60Hz
20
I
ce

Housing colors

Black Black RAL 9005
White White RAL 9003

Cable colors

White White 0111
Black Black 0900
Gray Gray 8765
Brown Brown 7953
Red Red 3119
Blue Blue 4867
Light blue Light blue 4906
Cyan Cyan 5305
Orange Orange 2166
Purple Purple 4406
Pink Pink 3358
Green Green 5474
Dark green Dark green 5744
Yellow Yellow 1257
Red/white Red/white 3119z
Black/white Black/white 0900z
Cyan/white Cyan/white 5305z

Light distributions

product.polar.curve.image,53
Default

Options

Product code
Power consumption[W]
0 0
Lumen output[lm]
0 0
CCT
CRI
Dimming
Housing color
STYSUS-1000-840-1-BL-
100.0
7606
4000k
80
Non-dimmable
Black
Power consumption[W]100.0
Lumen output[lm]7606
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-1000-840-1-WH-
100.0
7606
4000k
80
Non-dimmable
White
Power consumption[W]100.0
Lumen output[lm]7606
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-1000-840-2-BL-
100.0
7606
4000k
80
DALI
Black
Power consumption[W]100.0
Lumen output[lm]7606
CCT4000k
CRI80
DimmingDALI
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-1000-840-2-WH-
100.0
7606
4000k
80
DALI
White
Power consumption[W]100.0
Lumen output[lm]7606
CCT4000k
CRI80
DimmingDALI
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-1200-840-1-BL-
160.0
12169
4000k
80
Non-dimmable
Black
Power consumption[W]160.0
Lumen output[lm]12169
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-1200-840-1-WH-
160.0
12169
4000k
80
Non-dimmable
White
Power consumption[W]160.0
Lumen output[lm]12169
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-1200-840-2-BL-
160.0
12169
4000k
80
DALI
Black
Power consumption[W]160.0
Lumen output[lm]12169
CCT4000k
CRI80
DimmingDALI
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-1200-840-2-WH-
160.0
12169
4000k
80
DALI
White
Power consumption[W]160.0
Lumen output[lm]12169
CCT4000k
CRI80
DimmingDALI
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-500-840-1-BL-
40.0
3042
4000k
80
Non-dimmable
Black
Power consumption[W]40.0
Lumen output[lm]3042
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-500-840-1-WH-
40.0
3042
4000k
80
Non-dimmable
White
Power consumption[W]40.0
Lumen output[lm]3042
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-500-840-2-BL-
40.0
3042
4000k
80
DALI
Black
Power consumption[W]40.0
Lumen output[lm]3042
CCT4000k
CRI80
DimmingDALI
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-500-840-2-WH-
40.0
3042
4000k
80
DALI
White
Power consumption[W]40.0
Lumen output[lm]3042
CCT4000k
CRI80
DimmingDALI
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-600-840-1-BL-
72.0
5476
4000k
80
Non-dimmable
Black
Power consumption[W]72.0
Lumen output[lm]5476
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-600-840-1-WH-
72.0
5476
4000k
80
Non-dimmable
White
Power consumption[W]72.0
Lumen output[lm]5476
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-600-840-2-BL-
72.0
5476
4000k
80
DALI
Black
Power consumption[W]72.0
Lumen output[lm]5476
CCT4000k
CRI80
DimmingDALI
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-600-840-2-WH-
72.0
5476
4000k
80
DALI
White
Power consumption[W]72.0
Lumen output[lm]5476
CCT4000k
CRI80
DimmingDALI
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-800-840-1-BL-
90.0
6845
4000k
80
Non-dimmable
Black
Power consumption[W]90.0
Lumen output[lm]6845
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-800-840-1-WH-
90.0
6845
4000k
80
Non-dimmable
White
Power consumption[W]90.0
Lumen output[lm]6845
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-800-840-2-BL-
90.0
6845
4000k
80
DALI
Black
Power consumption[W]90.0
Lumen output[lm]6845
CCT4000k
CRI80
DimmingDALI
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-800-840-2-WH-
90.0
6845
4000k
80
DALI
White
Power consumption[W]90.0
Lumen output[lm]6845
CCT4000k
CRI80
DimmingDALI
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →

Applications and features

Downloads

↓ Datasheet PDF → ↓ CE PDF → ↓ Manual PDF →
