Stanley Surface

Office solutions · LED

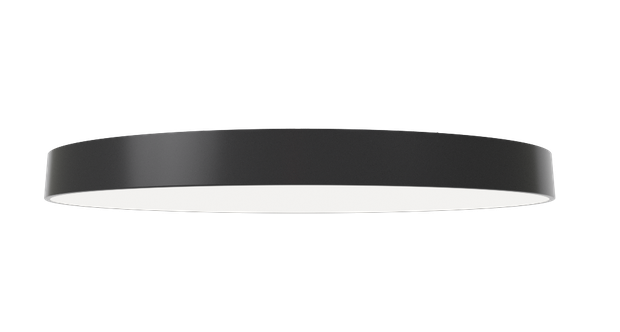

Stanley Surface

https://www.arlistore.com/web/image/product.template/690/image_1920?unique=5f4599f

Stanley Surface is a large ceiling LED luminaire with high-quality LED source with 50,000 hours lifetime. Available in 5 sizes (500-1200mm), color temperature 4000K with CRI 80+. Surface mounting with DALI control option available. High luminous flux up to 12,169 lm. Ideal for offices and large commercial spaces. 5-year warranty.

Technical specifications

Light Source
LED
CCT
4000K
CRI
80
Switching type
Non-dimmable , DALI
Wattage
40-160 W
Lumen output
3042-12169 lm
LED
220 - 240V AC, 50/60Hz
20
I
ce

Housing colors

Black Black RAL 9005
White White RAL 9003

Cable colors

White White 0111

Light distributions

product.polar.curve.image,52
Default

Options

Product code
Power consumption[W]
0 0
Lumen output[lm]
0 0
CCT
CRI
Dimming
Housing color
STYSUS-1000-840-1-BL
100.0
7606
4000k
80
Non-dimmable
Black
Power consumption[W]100.0
Lumen output[lm]7606
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-1000-840-1-WH
100.0
7606
4000k
80
Non-dimmable
White
Power consumption[W]100.0
Lumen output[lm]7606
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-1000-840-2-BL
100.0
7606
4000k
80
DALI
Black
Power consumption[W]100.0
Lumen output[lm]7606
CCT4000k
CRI80
DimmingDALI
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-1000-840-2-WH
100.0
7606
4000k
80
DALI
White
Power consumption[W]100.0
Lumen output[lm]7606
CCT4000k
CRI80
DimmingDALI
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-1200-840-1-BL
160.0
12169
4000k
80
Non-dimmable
Black
Power consumption[W]160.0
Lumen output[lm]12169
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-1200-840-1-WH
160.0
12169
4000k
80
Non-dimmable
White
Power consumption[W]160.0
Lumen output[lm]12169
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-1200-840-2-BL
160.0
12169
4000k
80
DALI
Black
Power consumption[W]160.0
Lumen output[lm]12169
CCT4000k
CRI80
DimmingDALI
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-1200-840-2-WH
160.0
12169
4000k
80
DALI
White
Power consumption[W]160.0
Lumen output[lm]12169
CCT4000k
CRI80
DimmingDALI
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →

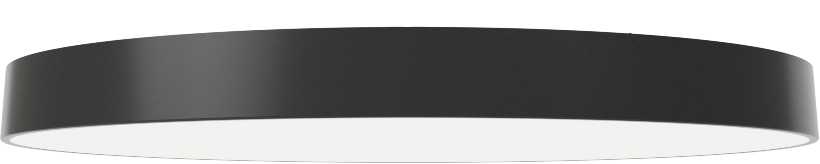

STYSUS-500-840-1-BL
40.0
3042
4000k
80
Non-dimmable
Black
Power consumption[W]40.0
Lumen output[lm]3042
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-500-840-1-WH
40.0
3042
4000k
80
Non-dimmable
White
Power consumption[W]40.0
Lumen output[lm]3042
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-500-840-2-BL
40.0
3042
4000k
80
DALI
Black
Power consumption[W]40.0
Lumen output[lm]3042
CCT4000k
CRI80
DimmingDALI
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-500-840-2-WH
40.0
3042
4000k
80
DALI
White
Power consumption[W]40.0
Lumen output[lm]3042
CCT4000k
CRI80
DimmingDALI
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-600-840-1-BL
72.0
5476
4000k
80
Non-dimmable
Black
Power consumption[W]72.0
Lumen output[lm]5476
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-600-840-1-WH
72.0
5476
4000k
80
Non-dimmable
White
Power consumption[W]72.0
Lumen output[lm]5476
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-600-840-2-BL
72.0
5476
4000k
80
DALI
Black
Power consumption[W]72.0
Lumen output[lm]5476
CCT4000k
CRI80
DimmingDALI
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-600-840-2-WH
72.0
5476
4000k
80
DALI
White
Power consumption[W]72.0
Lumen output[lm]5476
CCT4000k
CRI80
DimmingDALI
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-800-840-1-BL
90.0
6845
4000k
80
Non-dimmable
Black
Power consumption[W]90.0
Lumen output[lm]6845
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-800-840-1-WH
90.0
6845
4000k
80
Non-dimmable
White
Power consumption[W]90.0
Lumen output[lm]6845
CCT4000k
CRI80
DimmingNon-dimmable
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-800-840-2-BL
90.0
6845
4000k
80
DALI
Black
Power consumption[W]90.0
Lumen output[lm]6845
CCT4000k
CRI80
DimmingDALI
Housing colorBlack
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
STYSUS-800-840-2-WH
90.0
6845
4000k
80
DALI
White
Power consumption[W]90.0
Lumen output[lm]6845
CCT4000k
CRI80
DimmingDALI
Housing colorWhite
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →

Downloads

↓ Datasheet PDF → ↓ CE PDF → ↓ Manual PDF →
