Office solutions · LED
STYSUS-1200-840-1-WH-

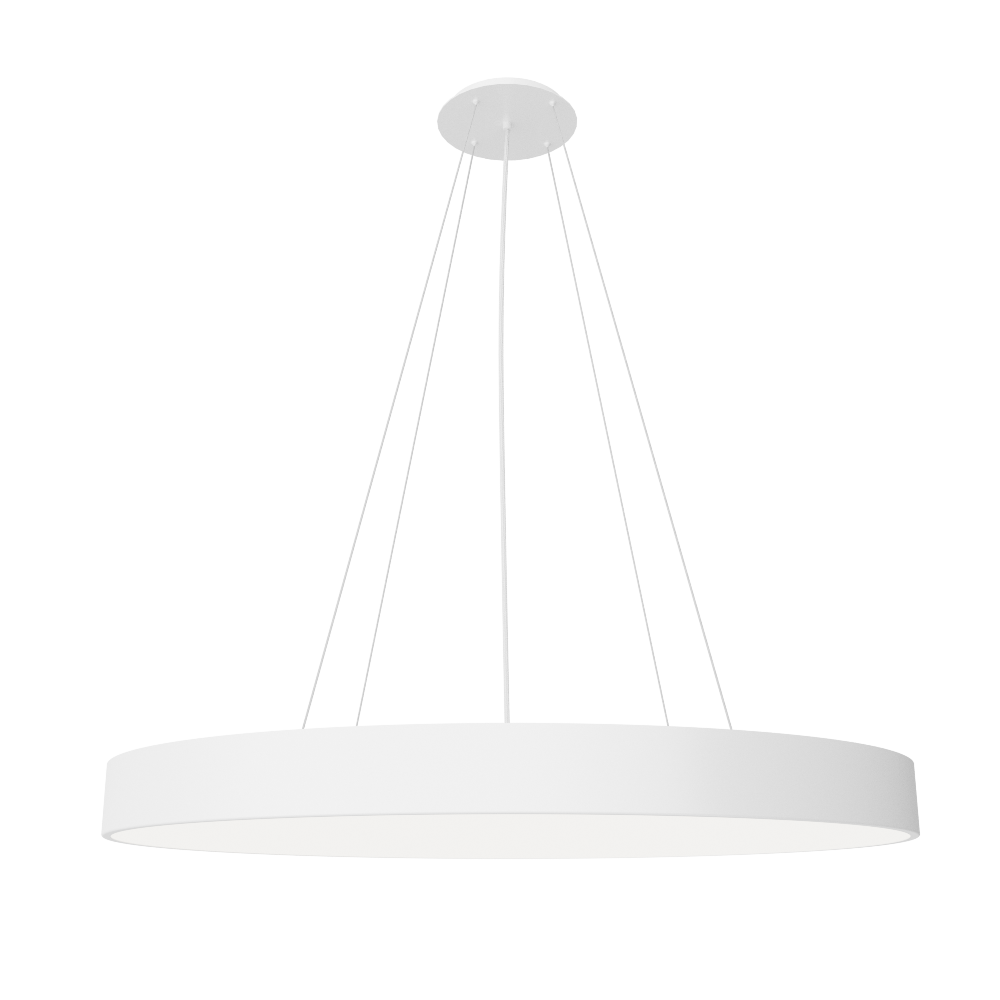

Stanley Suspended is a large pendant LED luminaire with high-quality LED source with 50,000 hours lifetime. Available in 5 sizes (500-1200mm), color temperature 4000K with CRI 80+. Pendant mounting with DALI control option available. Wide range of cable colors. High luminous flux up to 12,169 lm. Ideal for offices and large commercial spaces. 5-year warranty.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 80
- Switching type
- Non-dimmable
- Connected load
- 160.00 W
- Lumen output
- 12,169.00 lm
- Efficiency
- 76.1 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
Non-dimmable
IP protection
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
160.00 W
Lumen output
12,169.00 lm
Efficiency
76.1 lm/W
Optical system
Diffuser
Optical part material
PC
Housing material
Steel
Surface finish
Powder coated
Height
100.00 mm
Diameter
1,200.00 mm
Weight
15.80 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing colors
Cable colors

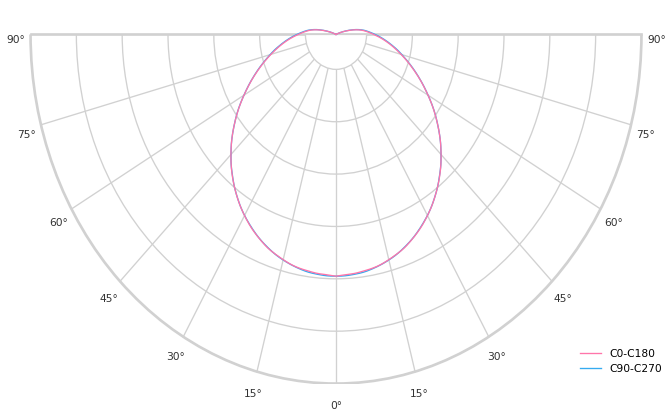

Dimmensions and light distribution
