Stanley Suspended

Office solutions · LED

STYSUS-1000-840-2-BL-

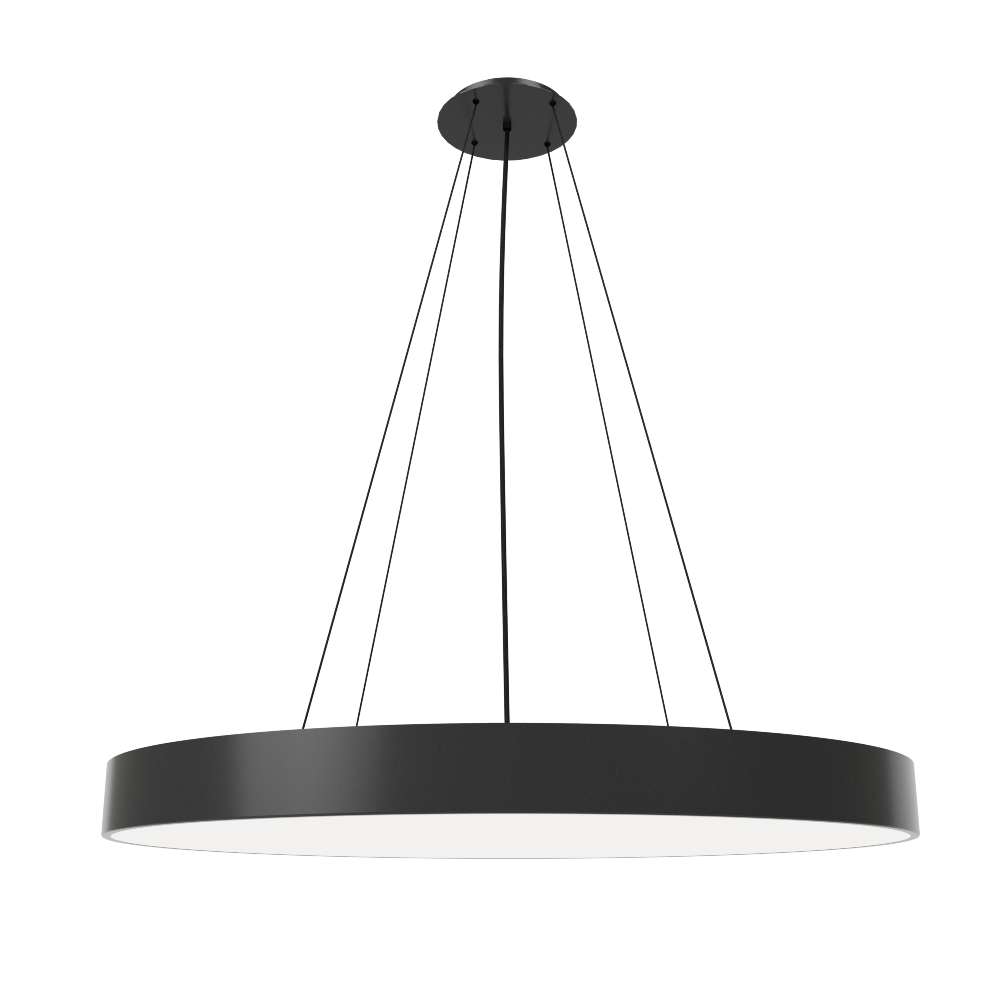

Stanley Suspended is a large pendant LED luminaire with high-quality LED source with 50,000 hours lifetime. Available in 5 sizes (500-1200mm), color temperature 4000K with CRI 80+. Pendant mounting with DALI control option available. Wide range of cable colors. High luminous flux up to 12,169 lm. Ideal for offices and large commercial spaces. 5-year warranty.

Technical specifications

Light Source
LED
CCT
4000k
CRI
80
Switching type
DALI
Connected load
100.00 W
Lumen output
7,606.00 lm
Efficiency
76.1 lm/W
LED
220 - 240V AC, 50/60Hz
20
I
ce
4000k
80

Downloads

↓ Datasheet PDF → ↓ LDT file LDT → ↓ CE PDF → ↓ Manual PDF →

Technical data

Mains voltage

220 - 240V AC, 50/60Hz

Connection method

Plug-in terminal

Switching type

DALI

IP protection

20

Protection class

I

Ambient temperature

0 to +25 °C

Light Source

LED

CCT

4000k

CRI

80

Connected load

100.00 W

Lumen output

7,606.00 lm

Efficiency

76.1 lm/W

Optical system

Diffuser

Optical part material

PC

Housing material

Steel

Surface finish

Powder coated

Height

100.00 mm

Diameter

1,000.00 mm

Weight

11.80 kg

Service lifetime (L80 B10)

50 000 h

Warranty

5 years

Illuminance Calculator

7606 lm · 100.0 W · DALI
Enter room width (1-100 m)
Enter room length (1-100 m)
Enter room height (2-20 m)
Must be less than or equal to room height
Select a room type
Select room cleanliness

Housing colors

Black Black RAL 9005
White White RAL 9003

Cable colors

White White 0111
Black Black 0900
Gray Gray 8765
Brown Brown 7953
Red Red 3119
Blue Blue 4867
Light blue Light blue 4906
Cyan Cyan 5305
Orange Orange 2166
Purple Purple 4406
Pink Pink 3358
Green Green 5474
Dark green Dark green 5744
Yellow Yellow 1257
Red/white Red/white 3119z
Black/white Black/white 0900z
Cyan/white Cyan/white 5305z

Dimmensions and light distribution

Stanley Suspended
Dimmensions
Stanley Suspended

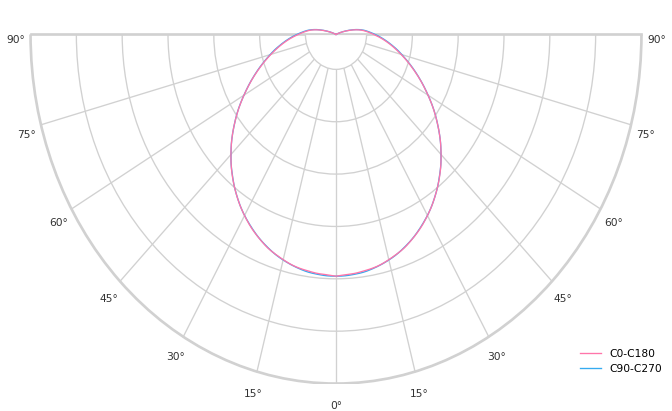

Polar curve
