Heavy

Industrial solutions · LED

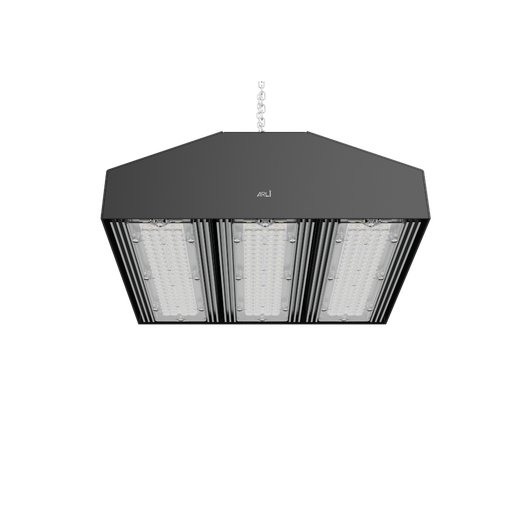

Heavy

https://www.arlistore.com/web/image/product.template/122/image_1920?unique=152624d

Heavy LED light is perfect for heavy industry, with high temperature resistance up to +60°C. Its casing prevents dust from reaching the coolers and a thin film on the lens protects against particles. With an efficiency of up to 164 lm/W, it provides bright and efficient lighting for your production hall. Say goodbye to issues with graphite fracture particles - Heavy LED light is the solution.

Technical specifications

Light Source
LED
CCT
4000K, 5000K
CRI
80
Switching type
Non-dimmable , DALI
Wattage
99-196 W
Lumen output
16926-32224 lm
LED
220 - 240V AC, 50/60Hz
65
I

Light distributions

product.polar.curve.image,115
75°
product.polar.curve.image,116
90°
product.polar.curve.image,117
HR
product.polar.curve.image,118
WHR

Options

Product code
Power consumption[W]
0 0
Lumen output[lm]
0 0
CCT
CRI
Dimming
Light distribution

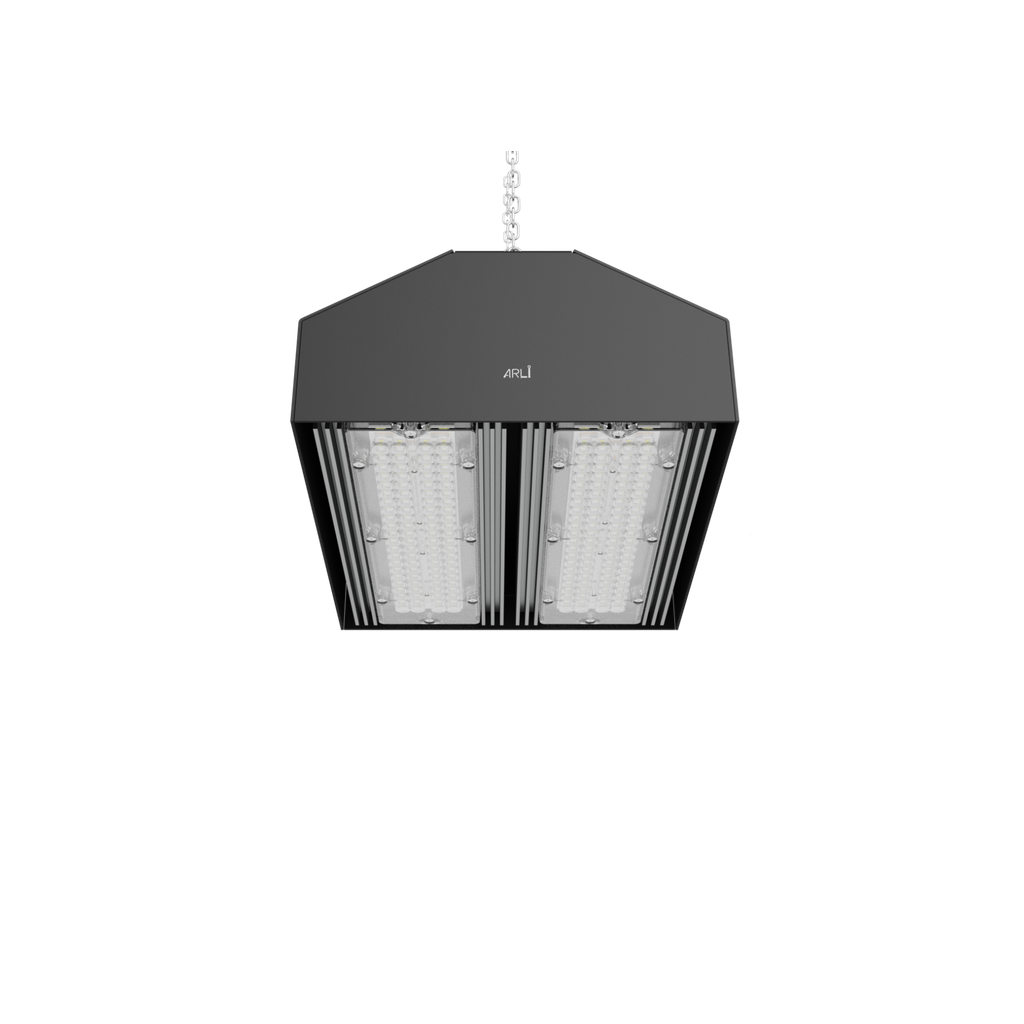

HEA3-L-840-1-75
196.22
32224
4000k
80
Non-dimmable
75°
Power consumption[W]196.22
Lumen output[lm]32224
CCT4000k
CRI80
DimmingNon-dimmable
Lenses75°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-L-840-1-90
196.22
32224
4000k
80
Non-dimmable
90°
Power consumption[W]196.22
Lumen output[lm]32224
CCT4000k
CRI80
DimmingNon-dimmable
Lenses90°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-L-840-1-HR
196.22
32224
4000k
80
Non-dimmable
HR
Power consumption[W]196.22
Lumen output[lm]32224
CCT4000k
CRI80
DimmingNon-dimmable
LensesHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-L-840-1-WHR
196.22
32224
4000k
80
Non-dimmable
WHR
Power consumption[W]196.22
Lumen output[lm]32224
CCT4000k
CRI80
DimmingNon-dimmable
LensesWHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-L-840-2-75
196.22
32224
4000k
80
DALI
75°
Power consumption[W]196.22
Lumen output[lm]32224
CCT4000k
CRI80
DimmingDALI
Lenses75°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-L-840-2-90
196.22
32224
4000k
80
DALI
90°
Power consumption[W]196.22
Lumen output[lm]32224
CCT4000k
CRI80
DimmingDALI
Lenses90°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-L-840-2-HR
196.22
32224
4000k
80
DALI
HR
Power consumption[W]196.22
Lumen output[lm]32224
CCT4000k
CRI80
DimmingDALI
LensesHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-L-840-2-WHR
196.22
32224
4000k
80
DALI
WHR
Power consumption[W]196.22
Lumen output[lm]32224
CCT4000k
CRI80
DimmingDALI
LensesWHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-L-850-1-75
196.22
32224
5000k
80
Non-dimmable
75°
Power consumption[W]196.22
Lumen output[lm]32224
CCT5000k
CRI80
DimmingNon-dimmable
Lenses75°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-L-850-1-90
196.22
32224
5000k
80
Non-dimmable
90°
Power consumption[W]196.22
Lumen output[lm]32224
CCT5000k
CRI80
DimmingNon-dimmable
Lenses90°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-L-850-1-HR
196.22
32224
5000k
80
Non-dimmable
HR
Power consumption[W]196.22
Lumen output[lm]32224
CCT5000k
CRI80
DimmingNon-dimmable
LensesHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-L-850-1-WHR
196.22
32224
5000k
80
Non-dimmable
WHR
Power consumption[W]196.22
Lumen output[lm]32224
CCT5000k
CRI80
DimmingNon-dimmable
LensesWHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-L-850-2-75
196.22
32224
5000k
80
DALI
75°
Power consumption[W]196.22
Lumen output[lm]32224
CCT5000k
CRI80
DimmingDALI
Lenses75°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-L-850-2-90
196.22
32224
5000k
80
DALI
90°
Power consumption[W]196.22
Lumen output[lm]32224
CCT5000k
CRI80
DimmingDALI
Lenses90°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-L-850-2-HR
196.22
32224
5000k
80
DALI
HR
Power consumption[W]196.22
Lumen output[lm]32224
CCT5000k
CRI80
DimmingDALI
LensesHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-L-850-2-WHR
196.22
32224
5000k
80
DALI
WHR
Power consumption[W]196.22
Lumen output[lm]32224
CCT5000k
CRI80
DimmingDALI
LensesWHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-840-1-75
129.61
21483
4000k
80
Non-dimmable
75°
Power consumption[W]129.61
Lumen output[lm]21483
CCT4000k
CRI80
DimmingNon-dimmable
Lenses75°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-840-1-90
129.61
21483
4000k
80
Non-dimmable
90°
Power consumption[W]129.61
Lumen output[lm]21483
CCT4000k
CRI80
DimmingNon-dimmable
Lenses90°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-840-1-HR
129.61
21483
4000k
80
Non-dimmable
HR
Power consumption[W]129.61
Lumen output[lm]21483
CCT4000k
CRI80
DimmingNon-dimmable
LensesHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-840-1-WHR
129.61
21483
4000k
80
Non-dimmable
WHR
Power consumption[W]129.61
Lumen output[lm]21483
CCT4000k
CRI80
DimmingNon-dimmable
LensesWHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-840-2-75
129.61
21483
4000k
80
DALI
75°
Power consumption[W]129.61
Lumen output[lm]21483
CCT4000k
CRI80
DimmingDALI
Lenses75°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-840-2-90
129.61
21483
4000k
80
DALI
90°
Power consumption[W]129.61
Lumen output[lm]21483
CCT4000k
CRI80
DimmingDALI
Lenses90°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-840-2-HR
129.61
21483
4000k
80
DALI
HR
Power consumption[W]129.61
Lumen output[lm]21483
CCT4000k
CRI80
DimmingDALI
LensesHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-840-2-WHR
129.61
21483
4000k
80
DALI
WHR
Power consumption[W]129.61
Lumen output[lm]21483
CCT4000k
CRI80
DimmingDALI
LensesWHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-850-1-75
129.61
21483
5000k
80
Non-dimmable
75°
Power consumption[W]129.61
Lumen output[lm]21483
CCT5000k
CRI80
DimmingNon-dimmable
Lenses75°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-850-1-90
129.61
21483
5000k
80
Non-dimmable
90°
Power consumption[W]129.61
Lumen output[lm]21483
CCT5000k
CRI80
DimmingNon-dimmable
Lenses90°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-850-1-HR
129.61
21483
5000k
80
Non-dimmable
HR
Power consumption[W]129.61
Lumen output[lm]21483
CCT5000k
CRI80
DimmingNon-dimmable
LensesHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-850-1-WHR
129.61
21483
5000k
80
Non-dimmable
WHR
Power consumption[W]129.61
Lumen output[lm]21483
CCT5000k
CRI80
DimmingNon-dimmable
LensesWHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-850-2-75
129.61
21483
5000k
80
DALI
75°
Power consumption[W]129.61
Lumen output[lm]21483
CCT5000k
CRI80
DimmingDALI
Lenses75°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-850-2-90
129.61
21483
5000k
80
DALI
90°
Power consumption[W]129.61
Lumen output[lm]21483
CCT5000k
CRI80
DimmingDALI
Lenses90°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-850-2-HR
129.61
21483
5000k
80
DALI
HR
Power consumption[W]129.61
Lumen output[lm]21483
CCT5000k
CRI80
DimmingDALI
LensesHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-M-850-2-WHR
129.61
21483
5000k
80
DALI
WHR
Power consumption[W]129.61
Lumen output[lm]21483
CCT5000k
CRI80
DimmingDALI
LensesWHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-840-1-75
99.14
16926
4000k
80
Non-dimmable
75°
Power consumption[W]99.14
Lumen output[lm]16926
CCT4000k
CRI80
DimmingNon-dimmable
Lenses75°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-840-1-90
99.14
16926
4000k
80
Non-dimmable
90°
Power consumption[W]99.14
Lumen output[lm]16926
CCT4000k
CRI80
DimmingNon-dimmable
Lenses90°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-840-1-HR
99.14
16926
4000k
80
Non-dimmable
HR
Power consumption[W]99.14
Lumen output[lm]16926
CCT4000k
CRI80
DimmingNon-dimmable
LensesHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-840-1-WHR
99.14
16926
4000k
80
Non-dimmable
WHR
Power consumption[W]99.14
Lumen output[lm]16926
CCT4000k
CRI80
DimmingNon-dimmable
LensesWHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-840-2-75
99.14
16926
4000k
80
DALI
75°
Power consumption[W]99.14
Lumen output[lm]16926
CCT4000k
CRI80
DimmingDALI
Lenses75°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-840-2-90
99.14
16926
4000k
80
DALI
90°
Power consumption[W]99.14
Lumen output[lm]16926
CCT4000k
CRI80
DimmingDALI
Lenses90°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-840-2-HR
99.14
16926
4000k
80
DALI
HR
Power consumption[W]99.14
Lumen output[lm]16926
CCT4000k
CRI80
DimmingDALI
LensesHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-840-2-WHR
99.14
16926
4000k
80
DALI
WHR
Power consumption[W]99.14
Lumen output[lm]16926
CCT4000k
CRI80
DimmingDALI
LensesWHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-850-1-75
99.14
16926
5000k
80
Non-dimmable
75°
Power consumption[W]99.14
Lumen output[lm]16926
CCT5000k
CRI80
DimmingNon-dimmable
Lenses75°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-850-1-90
99.14
16926
5000k
80
Non-dimmable
90°
Power consumption[W]99.14
Lumen output[lm]16926
CCT5000k
CRI80
DimmingNon-dimmable
Lenses90°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-850-1-HR
99.14
16926
5000k
80
Non-dimmable
HR
Power consumption[W]99.14
Lumen output[lm]16926
CCT5000k
CRI80
DimmingNon-dimmable
LensesHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-850-1-WHR
99.14
16926
5000k
80
Non-dimmable
WHR
Power consumption[W]99.14
Lumen output[lm]16926
CCT5000k
CRI80
DimmingNon-dimmable
LensesWHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-850-2-75
99.14
16926
5000k
80
DALI
75°
Power consumption[W]99.14
Lumen output[lm]16926
CCT5000k
CRI80
DimmingDALI
Lenses75°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-850-2-90
99.14
16926
5000k
80
DALI
90°
Power consumption[W]99.14
Lumen output[lm]16926
CCT5000k
CRI80
DimmingDALI
Lenses90°
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-850-2-HR
99.14
16926
5000k
80
DALI
HR
Power consumption[W]99.14
Lumen output[lm]16926
CCT5000k
CRI80
DimmingDALI
LensesHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
HEA3-S-850-2-WHR
99.14
16926
5000k
80
DALI
WHR
Power consumption[W]99.14
Lumen output[lm]16926
CCT5000k
CRI80
DimmingDALI
LensesWHR
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →

Applications and features

Downloads

↓ Datasheet PDF → ↓ CE PDF → ↓ Manual PDF →

Used in projects

Industry Podbrezova Ironworks Slovakia

Podbrezova Ironworks

Zobraziť projekt →

Alternatives

Heavy

Heavy

https://www.arlistore.com/web/image/product.template/122/image_1920?unique=152624d
324.09 € 324.09 €

    This combination does not exist.

    Contact Us
