Industrial solutions · LED

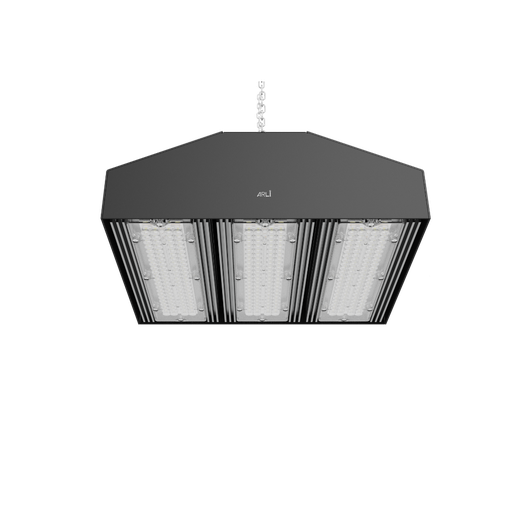

HEA3-L-840-2-90
Heavy LED light is perfect for heavy industry, with high temperature resistance up to +60°C. Its casing prevents dust from reaching the coolers and a thin film on the lens protects against particles. With an efficiency of up to 164 lm/W, it provides bright and efficient lighting for your production hall. Say goodbye to issues with graphite fracture particles - Heavy LED light is the solution.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 80
- Switching type
- DALI
- Connected load
- 196.22 W
- Lumen output
- 32,224.50 lm
- Efficiency
- 164.2 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
DALI
IP protection
65
Protection class
I
Impact rating
IK 08
Ambient temperature
-25 to +60 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
196.22 W
Lumen output
32,224.50 lm
Efficiency
164.2 lm/W
Ripple
3 %
DALI address
1
Standby power
0.50 W
Inrush current
89 A
Inrush time
584 μs
Optical system
Lenses
Optical part material
PC
Housing material
Aluminium
Surface finish
Powder coated
Width
296.00 mm
Height
135.00 mm
Length
320.00 mm
Weight
7.50 kg
Service lifetime (L80 B10)
75 000 h
Warranty
5 years
Illuminance Calculator

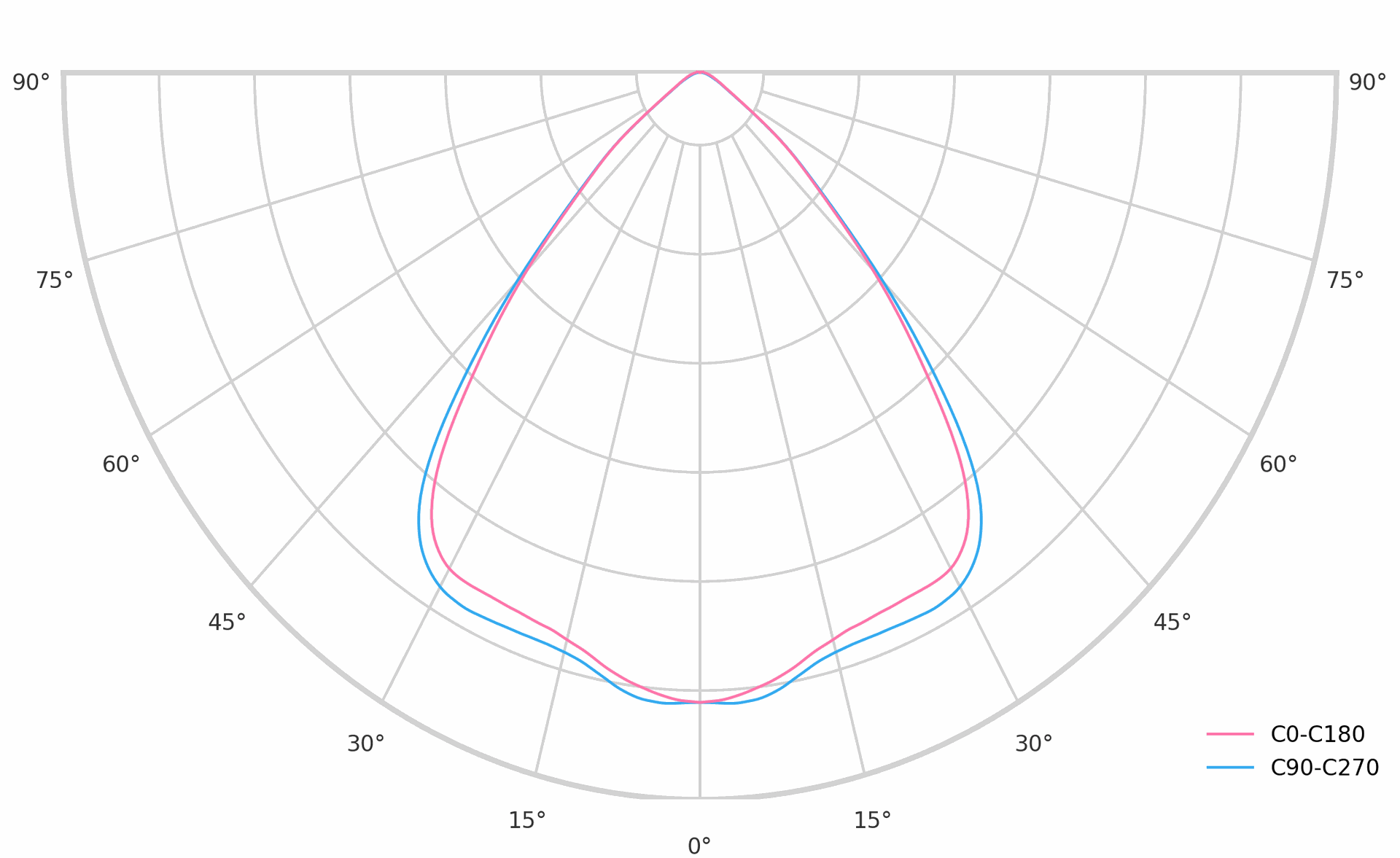

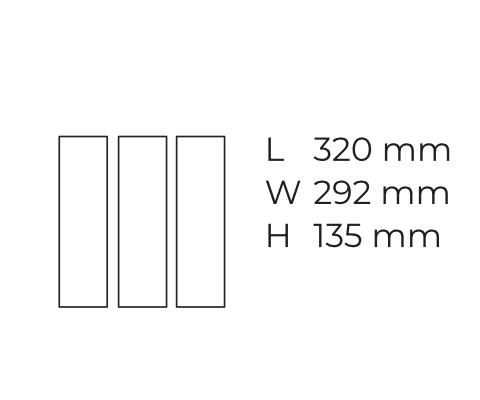

Dimmensions and light distribution
