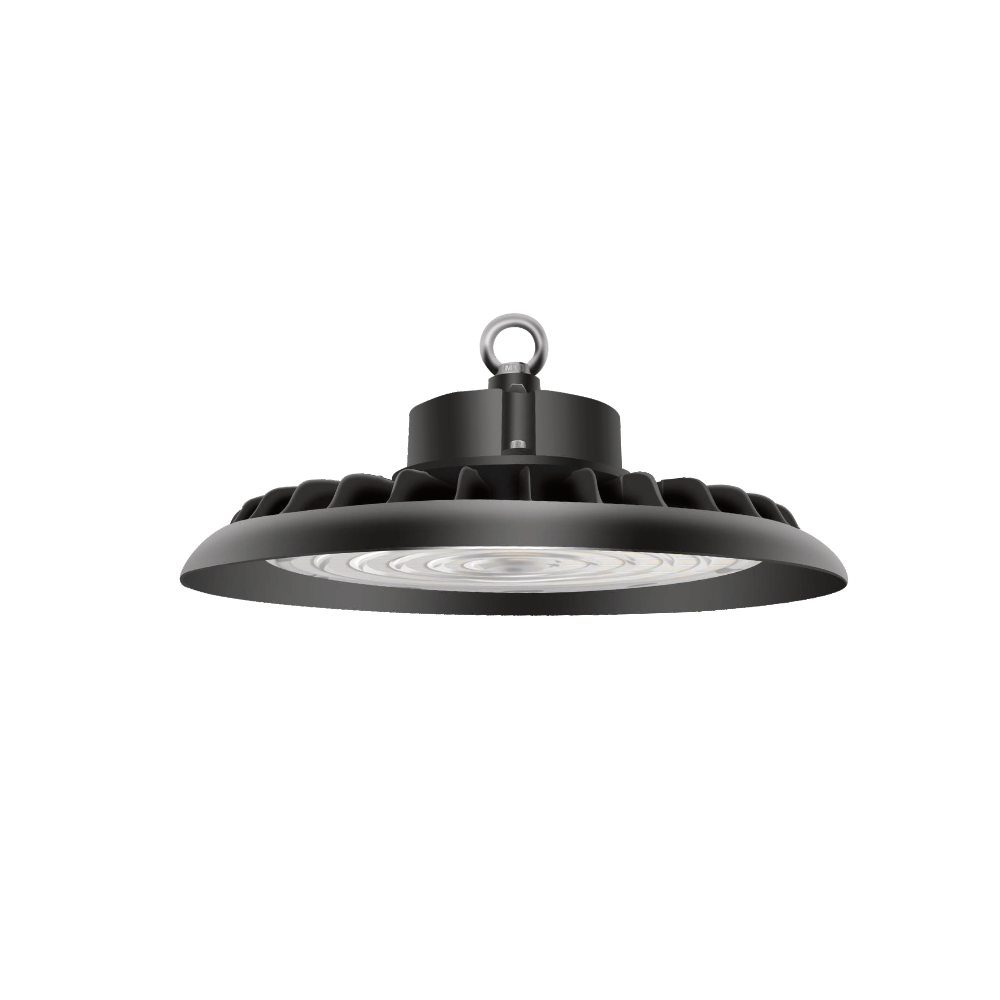

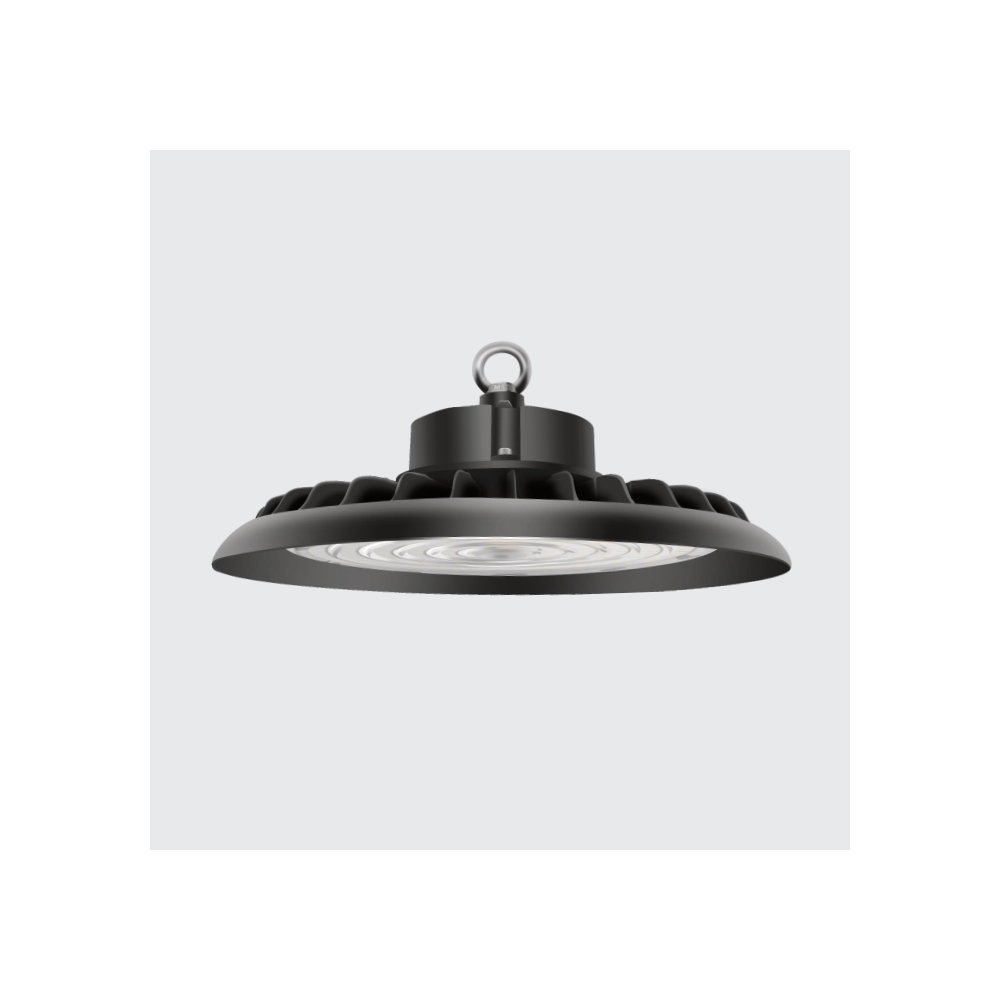

High bay led light

Cross

99,09 €

High-bay led light created with an emphasis on efficiency and easy installation. Suitable for installation in warehouses and production halls.

More details

Or

Product detail
MAINS VOLTAGE: 220 - 240 V AC, 50 - 60Hz
CONNECTION: 3-pole
PROTECTION RATING: IP 65
LIGHT SOURCE: LED
OPTICAL SYSTEM: Lenses
WIRING: Fix
LENS MATERIAL: Polycarbonate
CRI (Ra): 80
CCT: 4000k
HOUSING MATERIAL: Aluminum
AMBIENT TEMPERATURE: -25 °C to +30 °C
SERVICE LIFETIME (L80, B10): 50 000h
IMPACT RATING: IK 08
ACCESORIES: Chain or rope suspension
WARRANTY: 5 years
Datasheet
Cross Datasheet
Installation manual
Cross Installation manual
LDT data
Cross LDT data

High-bay led light created with an emphasis on efficiency and easy installation. Suitable for installation in warehouses and production halls.

  • Type of installation: Suspended
  • Light distribution: Direct
  • Colour of the luminaires: Black (RAL 9005)
  • Material: Aluminum
  • Light source: LED module
  • Connection of the luminaires: ON / OFF
  • Connection of the luminaires: DALI
  • Connection of the luminaires: 1-10V
  • Dimensions (L × W × H mm): 258x139
  • Dimensions (L × W × H mm): 299x139
  • Dimensions (L × W × H mm): 347x142
  • IP protection: IP65
Type of installation: Suspended
Light distribution: Direct
Colour of the luminaires: Black (RAL 9005)
Material: Aluminum
Light source: LED module
Connection of the luminaires: ON / OFF
Connection of the luminaires: DALI
Connection of the luminaires: 1-10V
Dimensions (L × W × H mm): 258x139
Dimensions (L × W × H mm): 299x139
Dimensions (L × W × H mm): 347x142
IP protection: IP65
