Stanley Surface

Office solutions · LED

STYSUS-800-840-1-WH

Stanley Surface is a large ceiling LED luminaire with high-quality LED source with 50,000 hours lifetime. Available in 5 sizes (500-1200mm), color temperature 4000K with CRI 80+. Surface mounting with DALI control option available. High luminous flux up to 12,169 lm. Ideal for offices and large commercial spaces. 5-year warranty.

Technical specifications

Light Source
LED
CCT
4000k
CRI
80
Switching type
Non-dimmable
Connected load
90.00 W
Lumen output
6,845.00 lm
Efficiency
76.1 lm/W
LED
220 - 240V AC, 50/60Hz
20
I
ce
4000k
80

Downloads

↓ Datasheet PDF → ↓ LDT file LDT → ↓ CE PDF → ↓ Manual PDF →

Technical data

Mains voltage

220 - 240V AC, 50/60Hz

Connection method

Plug-in terminal

Switching type

Non-dimmable

IP protection

20

Protection class

I

Ambient temperature

0 to +25 °C

Light Source

LED

CCT

4000k

CRI

80

Connected load

90.00 W

Lumen output

6,845.00 lm

Efficiency

76.1 lm/W

Optical system

Diffuser

Optical part material

PC

Housing material

Steel

Surface finish

Powder coated

Height

100.00 mm

Diameter

800.00 mm

Weight

9.00 kg

Service lifetime (L80 B10)

50 000 h

Warranty

5 years

Illuminance Calculator

6845 lm · 90.0 W · Non-dimmable
Enter room width (1-100 m)
Enter room length (1-100 m)
Enter room height (2-20 m)
Must be less than or equal to room height
Select a room type
Select room cleanliness

Housing colors

Black Black RAL 9005
White White RAL 9003

Cable colors

White White 0111

Dimmensions and light distribution

Stanley Surface
Dimmensions
Stanley Surface

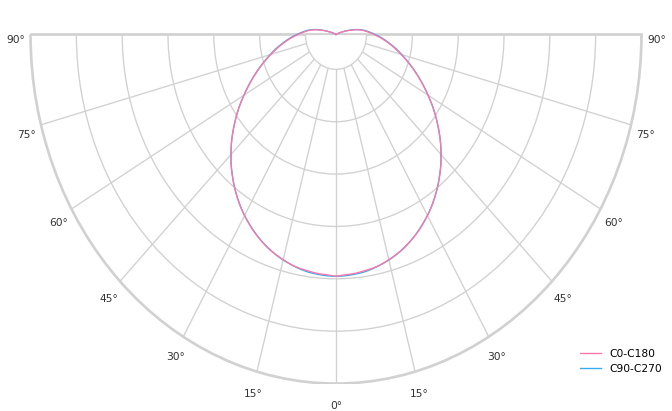

Polar curve
