Area G3

Exterior solutions · LED

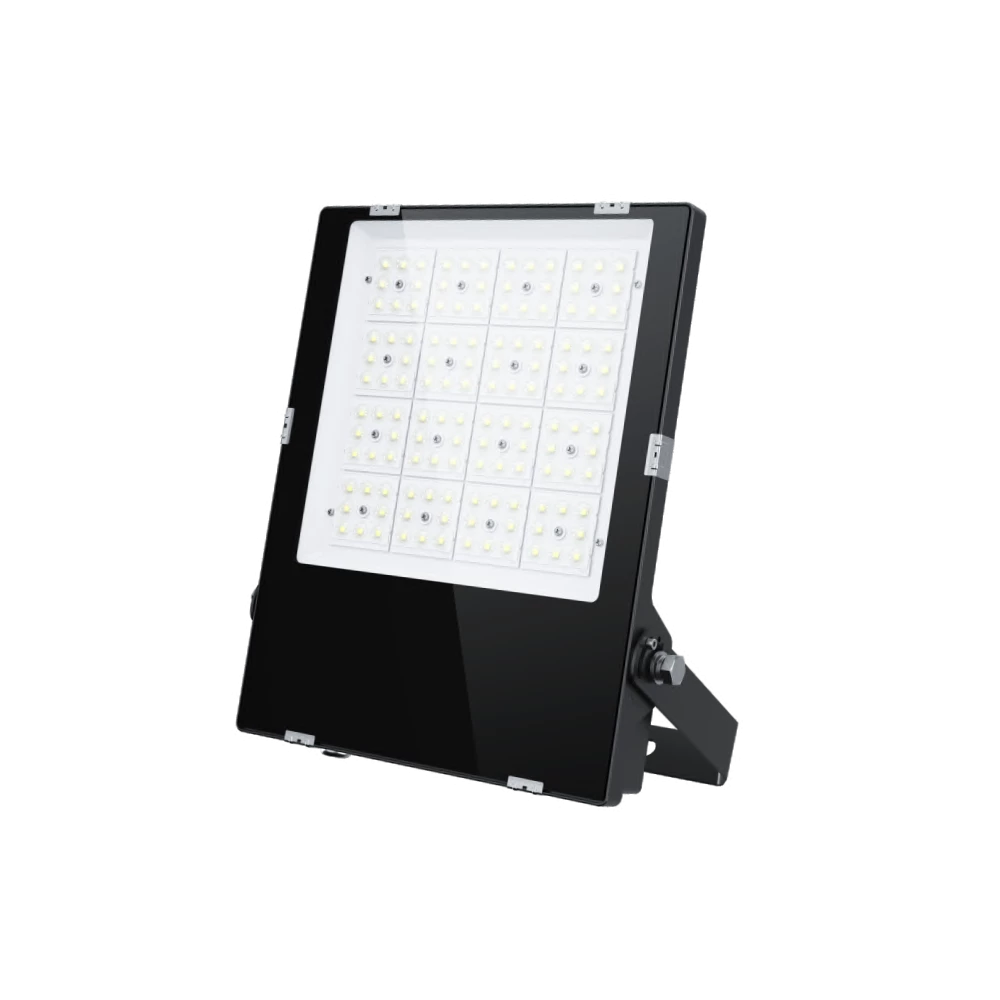

Area G3

https://www.arlistore.com/web/image/product.template/64/image_1920?unique=7500abc

Area G3 is an ideal solution for most outdoor applications such as wall mounted around building facades, gardens, paths near to buildings, garages, entrance ways and drives.

Technical specifications

Light Source
LED
CCT
4000K, 5000K
CRI
80
Switching type
Non-dimmable , DALI
Wattage
100-200 W
Lumen output
14088-35289 lm
LED
220 - 240V AC, 50/60Hz
66
I
ce

Light distributions

product.polar.curve.image,1
ASYM1
product.polar.curve.image,2
ASYM2

Options

Product code
Power consumption[W]
0 0
Lumen output[lm]
0 0
CCT
CRI
Dimming
Light distribution
AREA-L-840-1-ASYM2
200.0
35289
4000k
80
Non-dimmable
ASYM2
Power consumption[W]200.0
Lumen output[lm]35289
CCT4000k
CRI80
DimmingNon-dimmable
LensesASYM2
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
AREA-L-840-2-ASYM2
200.0
35289
4000k
80
DALI
ASYM2
Power consumption[W]200.0
Lumen output[lm]35289
CCT4000k
CRI80
DimmingDALI
LensesASYM2
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
AREA-L-850-1-ASYM2
200.0
35289
5000k
80
Non-dimmable
ASYM2
Power consumption[W]200.0
Lumen output[lm]35289
CCT5000k
CRI80
DimmingNon-dimmable
LensesASYM2
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
AREA-L-850-2-ASYM2
200.0
35289
5000k
80
DALI
ASYM2
Power consumption[W]200.0
Lumen output[lm]35289
CCT5000k
CRI80
DimmingDALI
LensesASYM2
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
AREA-M-840-1-ASYM1
150.0
21409
4000k
80
Non-dimmable
ASYM1
Power consumption[W]150.0
Lumen output[lm]21409
CCT4000k
CRI80
DimmingNon-dimmable
LensesASYM1
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
AREA-M-840-2-ASYM1
150.0
21409
4000k
80
DALI
ASYM1
Power consumption[W]150.0
Lumen output[lm]21409
CCT4000k
CRI80
DimmingDALI
LensesASYM1
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
AREA-M-850-1-ASYM1
150.0
21409
5000k
80
Non-dimmable
ASYM1
Power consumption[W]150.0
Lumen output[lm]21409
CCT5000k
CRI80
DimmingNon-dimmable
LensesASYM1
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
AREA-M-850-2-ASYM1
150.0
21409
5000k
80
DALI
ASYM1
Power consumption[W]150.0
Lumen output[lm]21409
CCT5000k
CRI80
DimmingDALI
LensesASYM1
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
AREA-S-840-1-ASYM1
100.0
14088
4000k
80
Non-dimmable
ASYM1
Power consumption[W]100.0
Lumen output[lm]14088
CCT4000k
CRI80
DimmingNon-dimmable
LensesASYM1
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
AREA-S-840-2-ASYM1
100.0
14088
4000k
80
DALI
ASYM1
Power consumption[W]100.0
Lumen output[lm]14088
CCT4000k
CRI80
DimmingDALI
LensesASYM1
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
AREA-S-850-1-ASYM1
100.0
14088
5000k
80
Non-dimmable
ASYM1
Power consumption[W]100.0
Lumen output[lm]14088
CCT5000k
CRI80
DimmingNon-dimmable
LensesASYM1
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →
AREA-S-850-2-ASYM1
100.0
14088
5000k
80
DALI
ASYM1
Power consumption[W]100.0
Lumen output[lm]14088
CCT5000k
CRI80
DimmingDALI
LensesASYM1
↓ DatasheetPDF → ↓ LDT súborLDT → Zobraziť detail →

Applications and features

Downloads

↓ Datasheet PDF → ↓ CE PDF → ↓ Manual PDF →
