Exterior solutions · LED

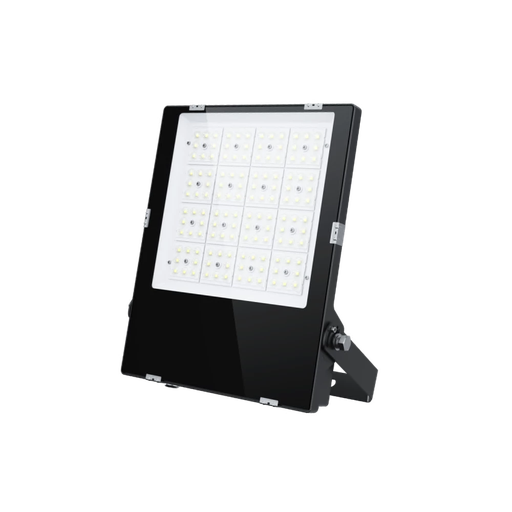

AREA-L-840-2-ASYM2
Area G3 is an ideal solution for most outdoor applications such as wall mounted around building facades, gardens, paths near to buildings, garages, entrance ways and drives.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 80
- Switching type
- DALI
- Connected load
- 200.00 W
- Lumen output
- 35,289.00 lm
- Efficiency
- 176.4 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
DALI
IP protection
66
Protection class
I
Impact rating
IK 08
Ambient temperature
-30 to +35 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
200.00 W
Lumen output
35,289.00 lm
Efficiency
176.4 lm/W
DALI address
1
Inrush current
100 A
Optical system
Lenses
Optical part material
Hardened glass
Housing material
Die-cast aluminium
Surface finish
Powder coated
Width
328.00 mm
Height
53.00 mm
Length
407.00 mm
Weight
5.20 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Dimmensions and light distribution
Dimmensions

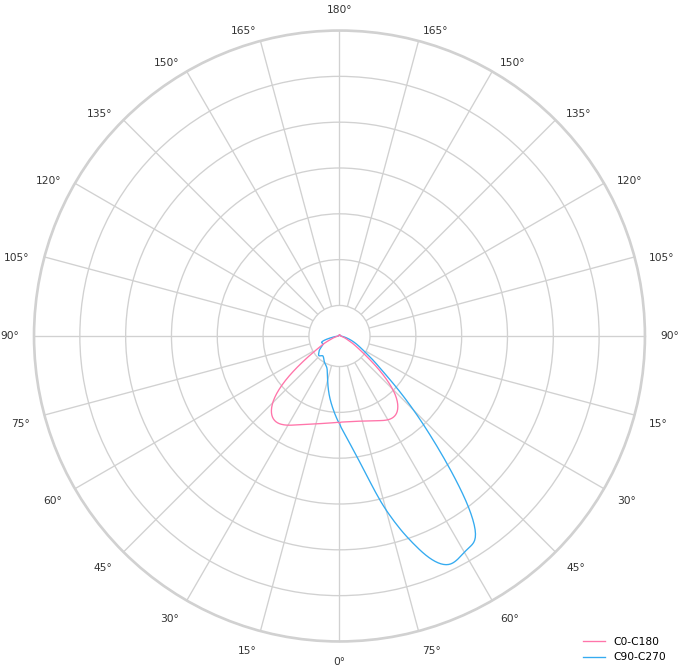

Polar curve
