Exterior solutions · LED

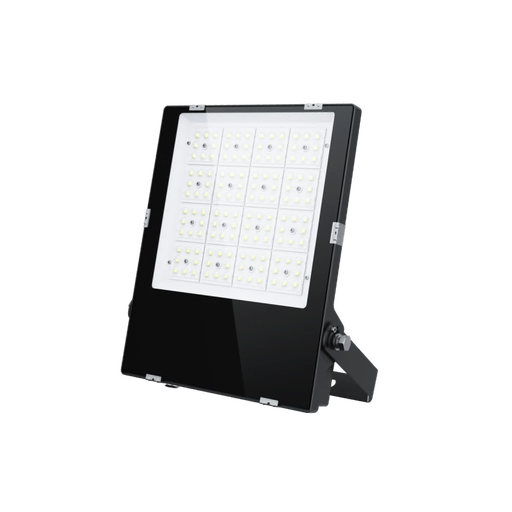

AREA-M-850-1-ASYM1
Area G3 is an ideal solution for most outdoor applications such as wall mounted around building facades, gardens, paths near to buildings, garages, entrance ways and drives.
Technical specifications
- Light Source
- LED
- CCT
- 5000k
- CRI
- 80
- Switching type
- Non-dimmable
- Connected load
- 150.00 W
- Lumen output
- 21,409.00 lm
- Efficiency
- 142.7 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
Non-dimmable
IP protection
66
Protection class
I
Impact rating
IK 08
Ambient temperature
-30 to +35 °C
Light Source
LED
CCT
5000k
CRI
80
Connected load
150.00 W
Lumen output
21,409.00 lm
Efficiency
142.7 lm/W
Inrush current
100 A
Optical system
Lenses
Optical part material
Hardened glass
Housing material
Die-cast aluminium
Surface finish
Powder coated
Width
264.00 mm
Height
53.00 mm
Length
336.00 mm
Weight
3.30 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Dimmensions and light distribution
Dimmensions

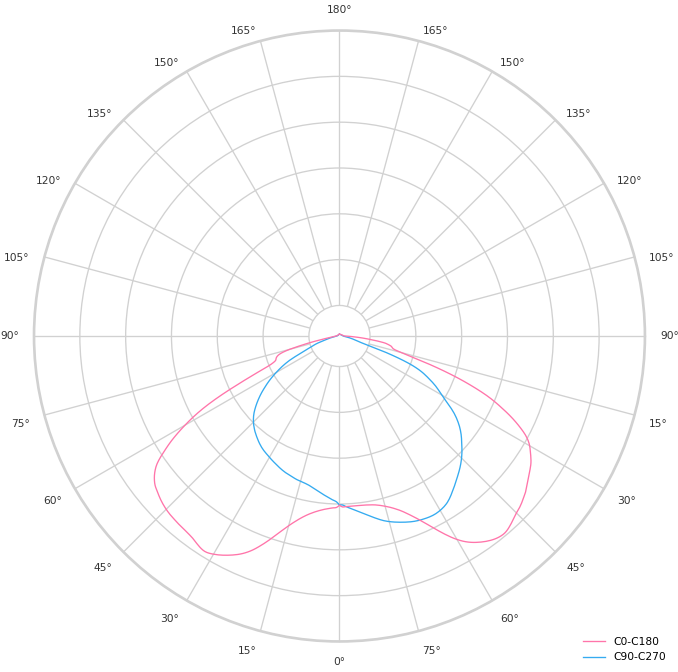

Polar curve
