Square easy
Technical specifications
Light Source
LED
CCT
3000K, 4000K
CRI
80
Switching type
Nestmievateľné , DALI
Wattage
22-30 W
Lumen output
3520-4800 lm
Specification

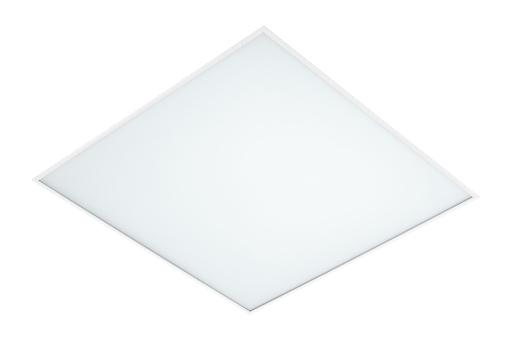

Square easy je LED panel 595x595 mm s najmodernejšou LED technológiou a LED zdrojom s životnosťou 50 000 hodín. Dostupné v 3 výkonoch, farebných teplotách 3000K/4000K s CRI 80+. Oceľové telo s PMMA difúzorom pre optimálnu distribúciu svetla a možnosť DALI riadenia. Plne kompatibilné s existujúcou osvetľovacou infraštruktúrou. Ideálne pre kancelárie, haly a komerčné priestory. 5-ročná záruka.
Light distributions
Default
Options
Product code
Power consumption[W]
Lumen output[lm]
CCT
CRI
Dimming
SQEA-L-830-1
30.0
4800
3000k
80
Non-dimmable
Power consumption[W]
30.0
Lumen output[lm]
4800
CCT
3000k
CRI
80
Dimming
Non-dimmable
SQEA-L-830-2
30.0
4800
3000k
80
DALI
Power consumption[W]
30.0
Lumen output[lm]
4800
CCT
3000k
CRI
80
Dimming
DALI
SQEA-L-840-1
30.0
4800
4000k
80
Non-dimmable
Power consumption[W]
30.0
Lumen output[lm]
4800
CCT
4000k
CRI
80
Dimming
Non-dimmable
SQEA-L-840-2
30.0
4800
4000k
80
DALI
Power consumption[W]
30.0
Lumen output[lm]
4800
CCT
4000k
CRI
80
Dimming
DALI
SQEA-M-830-1
26.0
4160
3000k
80
Non-dimmable
Power consumption[W]
26.0
Lumen output[lm]
4160
CCT
3000k
CRI
80
Dimming
Non-dimmable
SQEA-M-830-2
26.0
4160
3000k
80
DALI
Power consumption[W]
26.0
Lumen output[lm]
4160
CCT
3000k
CRI
80
Dimming
DALI
SQEA-M-840-1
26.0
4160
4000k
80
Non-dimmable
Power consumption[W]
26.0
Lumen output[lm]
4160
CCT
4000k
CRI
80
Dimming
Non-dimmable
SQEA-M-840-2
26.0
4160
4000k
80
DALI
Power consumption[W]
26.0
Lumen output[lm]
4160
CCT
4000k
CRI
80
Dimming
DALI
SQEA-S-830-1
22.0
3520
3000k
80
Non-dimmable
Power consumption[W]
22.0
Lumen output[lm]
3520
CCT
3000k
CRI
80
Dimming
Non-dimmable
SQEA-S-830-2
22.0
3520
3000k
80
DALI
Power consumption[W]
22.0
Lumen output[lm]
3520
CCT
3000k
CRI
80
Dimming
DALI
SQEA-S-840-1
22.0
3520
4000k
80
Non-dimmable
Power consumption[W]
22.0
Lumen output[lm]
3520
CCT
4000k
CRI
80
Dimming
Non-dimmable
SQEA-S-840-2
22.0
3520
4000k
80
DALI
Power consumption[W]
22.0
Lumen output[lm]
3520
CCT
4000k
CRI
80
Dimming
DALI
