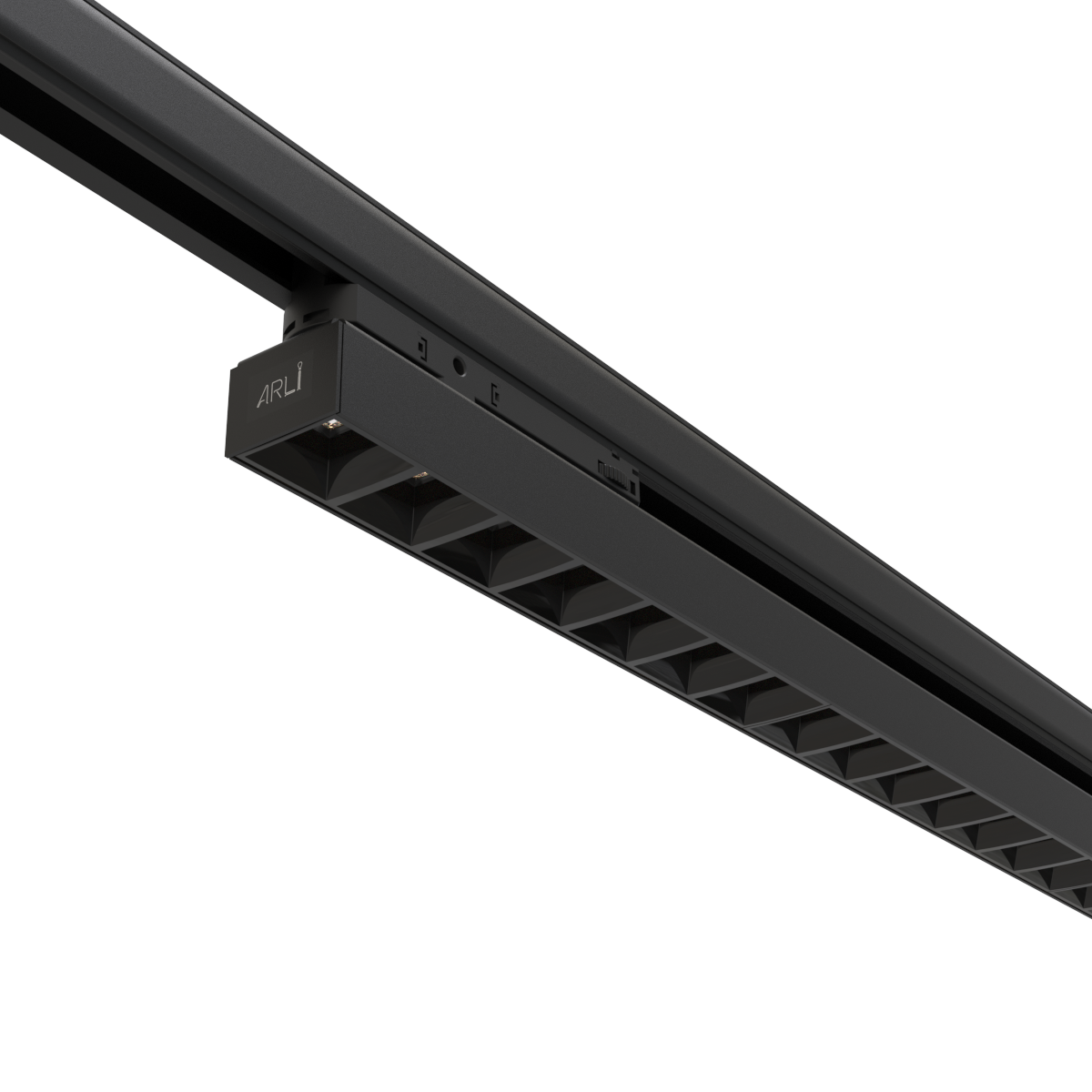

WORT-M-830-2-50-BL
Technical specifications
Light Source
LED
CCT
3000k
CRI
80
Switching type
DALI
Connected load
37.74 W
Lumen output
4,666.20 lm
Efficiency
123.6 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3-phase track adapter
Switching type
DALI
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
80
Connected load
37.74 W
Lumen output
4,666.20 lm
Efficiency
123.6 lm/W
Ripple
1 %
DALI address
1
Standby power
0.30 W
Inrush current
15 A
Inrush time
100 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
44.00 mm
Height
53.00 mm
Length
1,122.00 mm
Weight
2.80 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing color

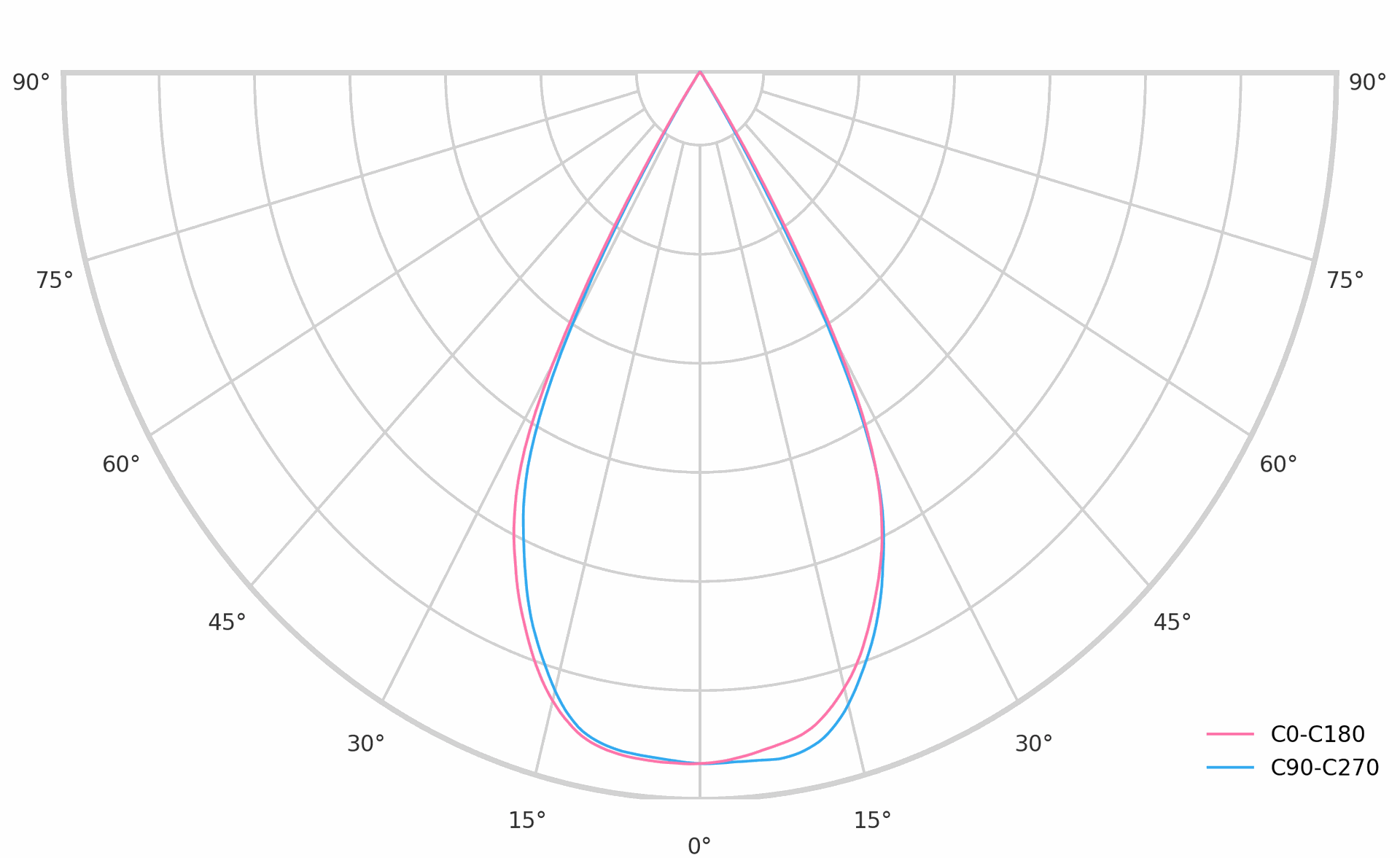

Dimmensions and light distribution
