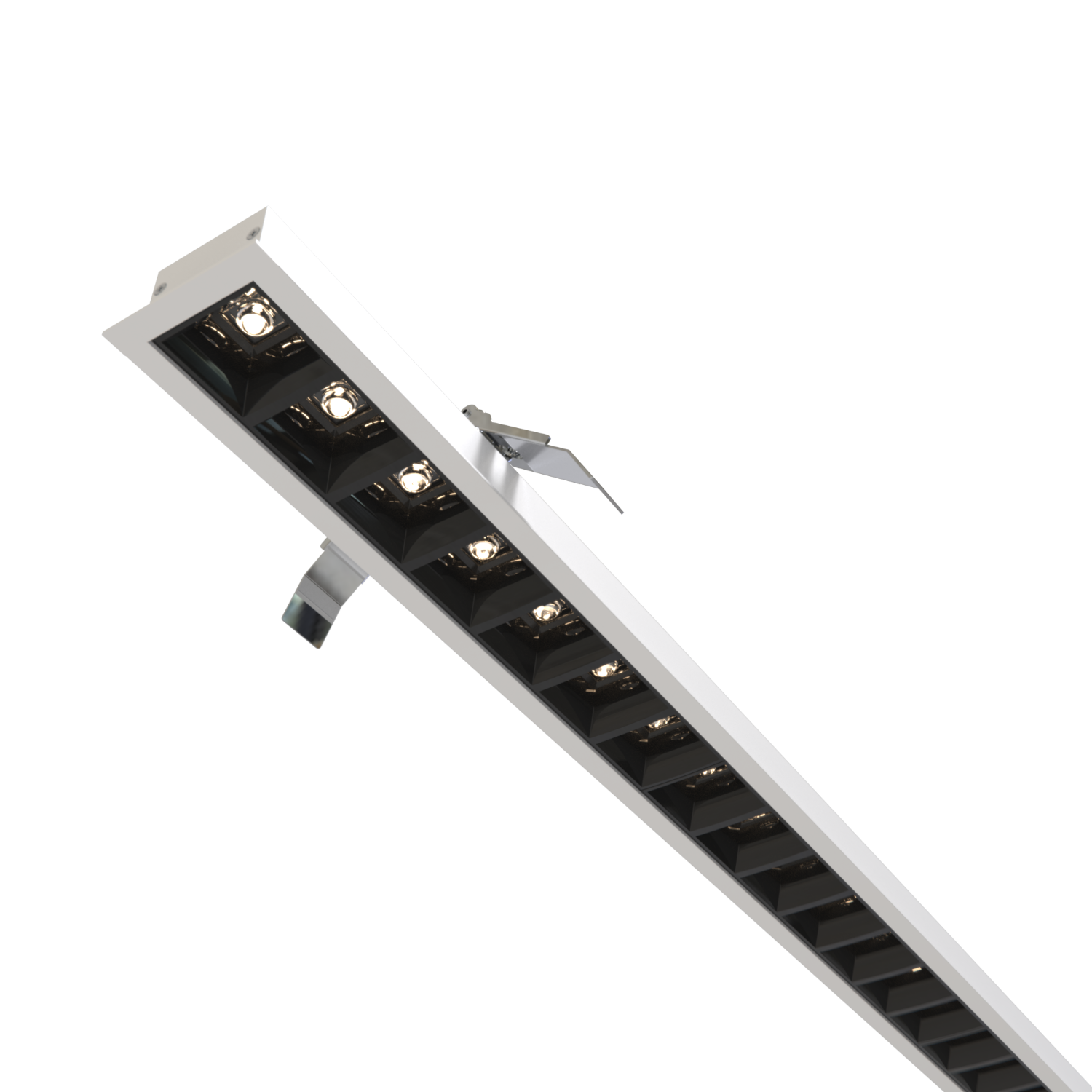

WORREC-579-M-940-1-80-BL
Technical specifications
Light Source
LED
Switching type
Non-dimmable
Connected load
20.24 W
Lumen output
2,240.00 lm
Efficiency
110.7 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Screw terminal
Switching type
Non-dimmable
IP protection
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
Connected load
20.24 W
Lumen output
2,240.00 lm
Efficiency
110.7 lm/W
Ripple
3 %
Inrush current
8 A
Inrush time
48 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
59.00 mm
Height
53.00 mm
Length
579.00 mm
Weight
1.00 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing color

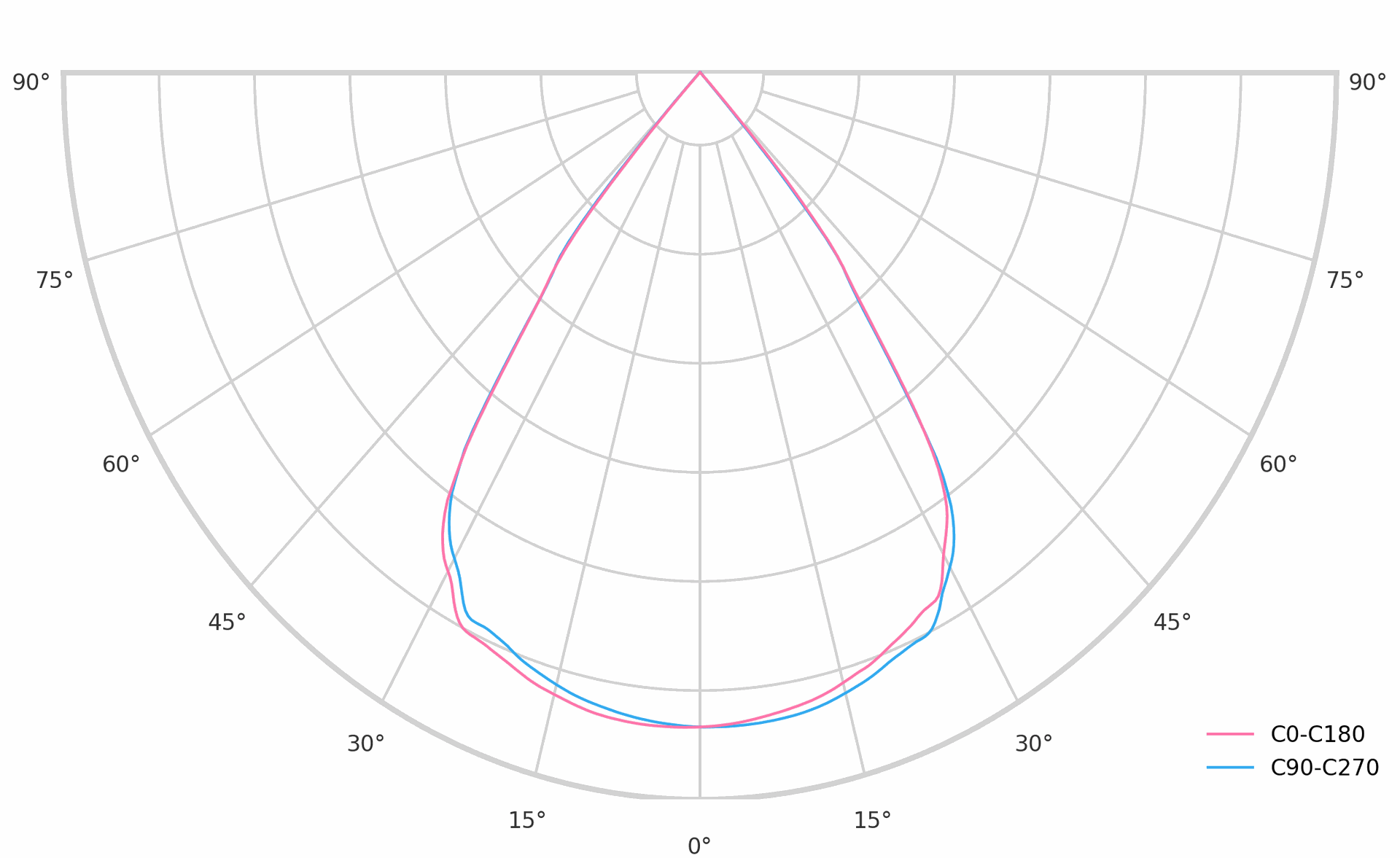

Dimmensions and light distribution
