Office solutions · LED

BASICSUS-1200-840-1-PD-BL

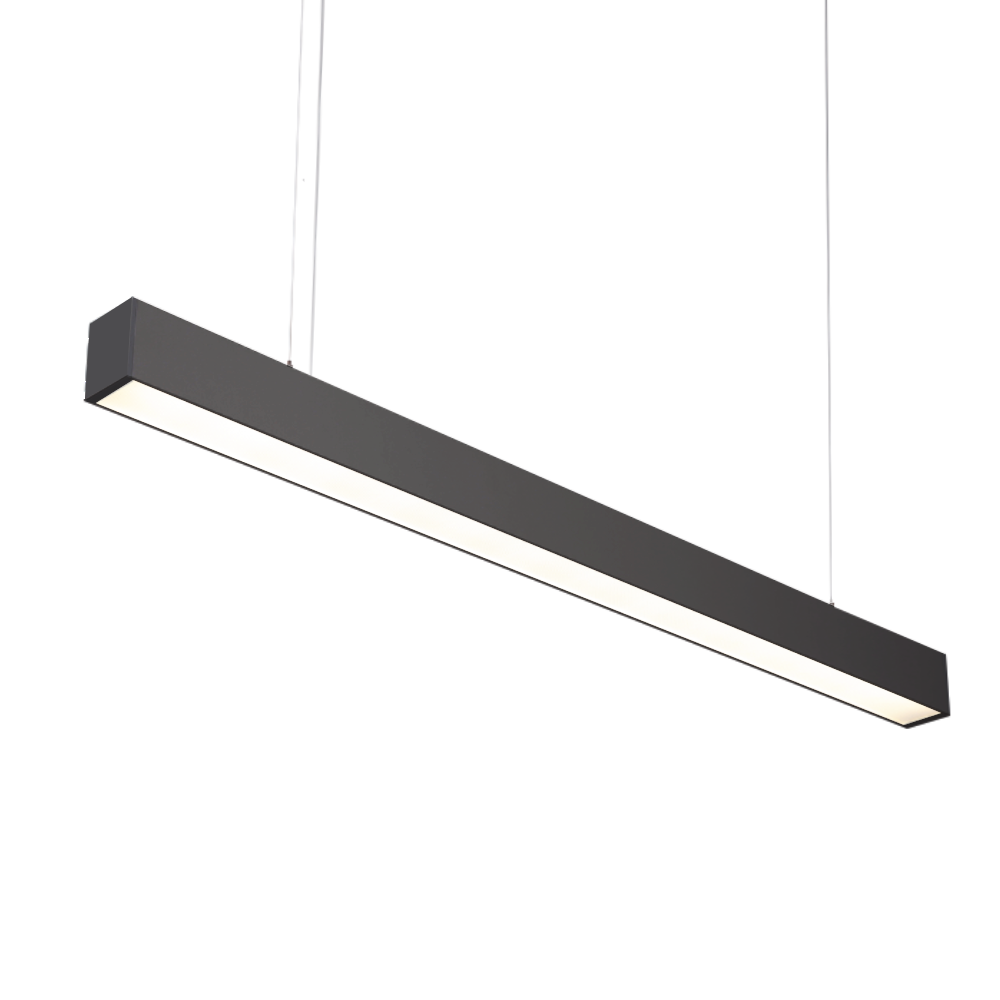

Basic linear led luminaire for offices, meeting rooms, corridors and households.

Technical specifications

Light Source: LED
CCT: 4000k
CRI: 80
Switching type: Non-dimmable
Connected load: 26.60 W
Lumen output: 3,181.60 lm
Efficiency: 119.6 lm/W

Downloads

↓ Datasheet PDF → ↓ LDT file LDT → ↓ CE PDF → ↓ Manual PDF →

Technical data

Mains voltage

220 - 240V AC, 50/60Hz

Connection method

Plug-in terminal

Switching type

Non-dimmable

IP protection

Protection class

Ambient temperature

0 to +25 °C

Light Source

LED

CCT

4000k

CRI

Connected load

26.60 W

Lumen output

3,181.60 lm

Efficiency

119.6 lm/W

Optical system

Lenses

Optical part material

Housing material

Aluminium

Surface finish

Powder coated

Width

50.00 mm

Height

70.00 mm

Length

1,200.00 mm

Weight

1.70 kg

Service lifetime (L80 B30)

50 000 h

Warranty

3 years

Illuminance Calculator

3181 lm · 26.6 W · Non-dimmable

Room width (m) *

Enter room width (1-100 m)

Room length (m) *

Enter room length (1-100 m)

Room height (m) *

Enter room height (2-20 m)

Mounting heights of lights (m) *

Must be less than or equal to room height

Room type *

Select a room type

Use custom illuminance and uniformity values

Room cleanliness *

Select room cleanliness

Illuminance calculation completed successfully

Calculation Results

Number of luminaires

Average illuminance

- lx

Uniformity

Total power

- W

Product

Flux

Power

Total power

Total flux

Maintenance factor

0.8

Room dimensions

Area

Room type

Total flux per area

Total power per area

Floor Plan

Light distribution Map

Room cross-section

* This is an indicative calculation only. For a precise lighting design project, do not hesitate to contact us.

Want to save calculations and see your prices? Get in touch — we'll set up your account.

Housing colors

Black RAL 9005

White RAL 9003

Dimmensions and light distribution

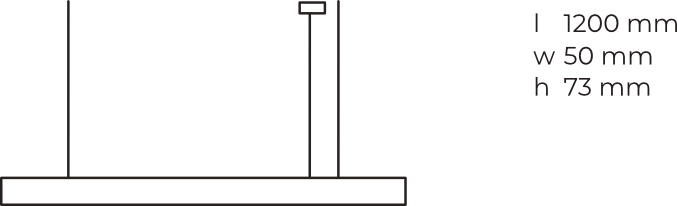

Dimmensions

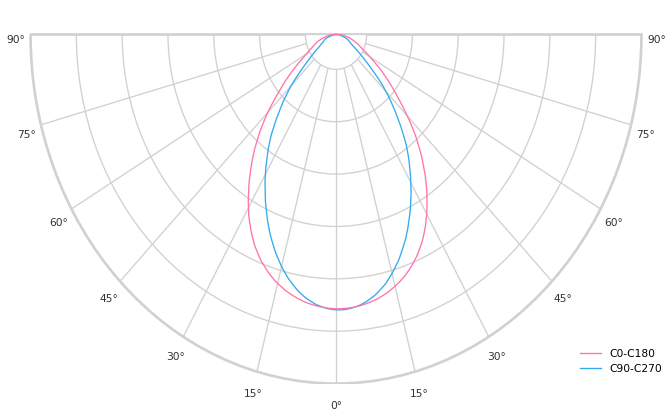

Polar curve
