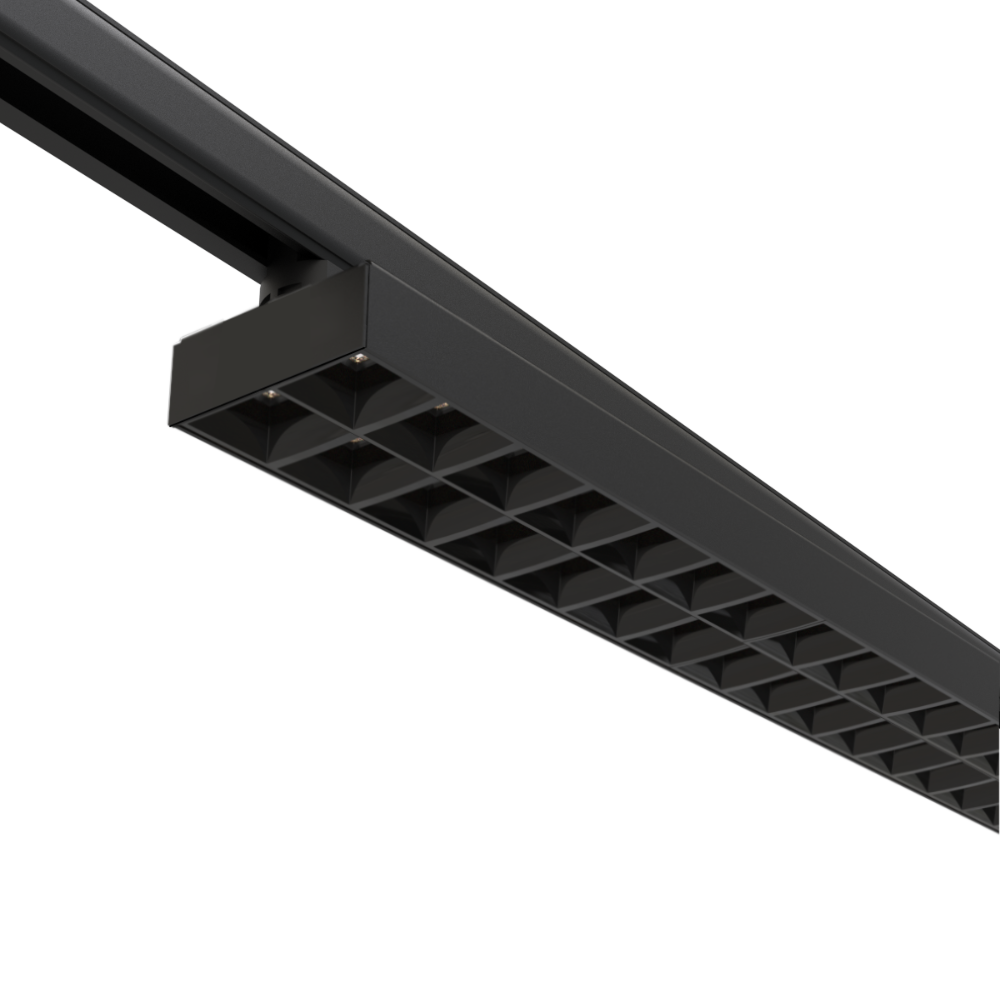

WORTDUO-M-950-2-WAS-BL
Technical specifications
Light Source
LED
CCT
5000k
CRI
90
Switching type
DALI
Connected load
40.60 W
Lumen output
4,314.96 lm
Efficiency
106.3 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3-phase track adapter
Switching type
DALI
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
5000k
CRI
90
Connected load
40.60 W
Lumen output
4,314.96 lm
Efficiency
106.3 lm/W
Ripple
1 %
DALI address
1
Standby power
0.30 W
Inrush current
15 A
Inrush time
100 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing color

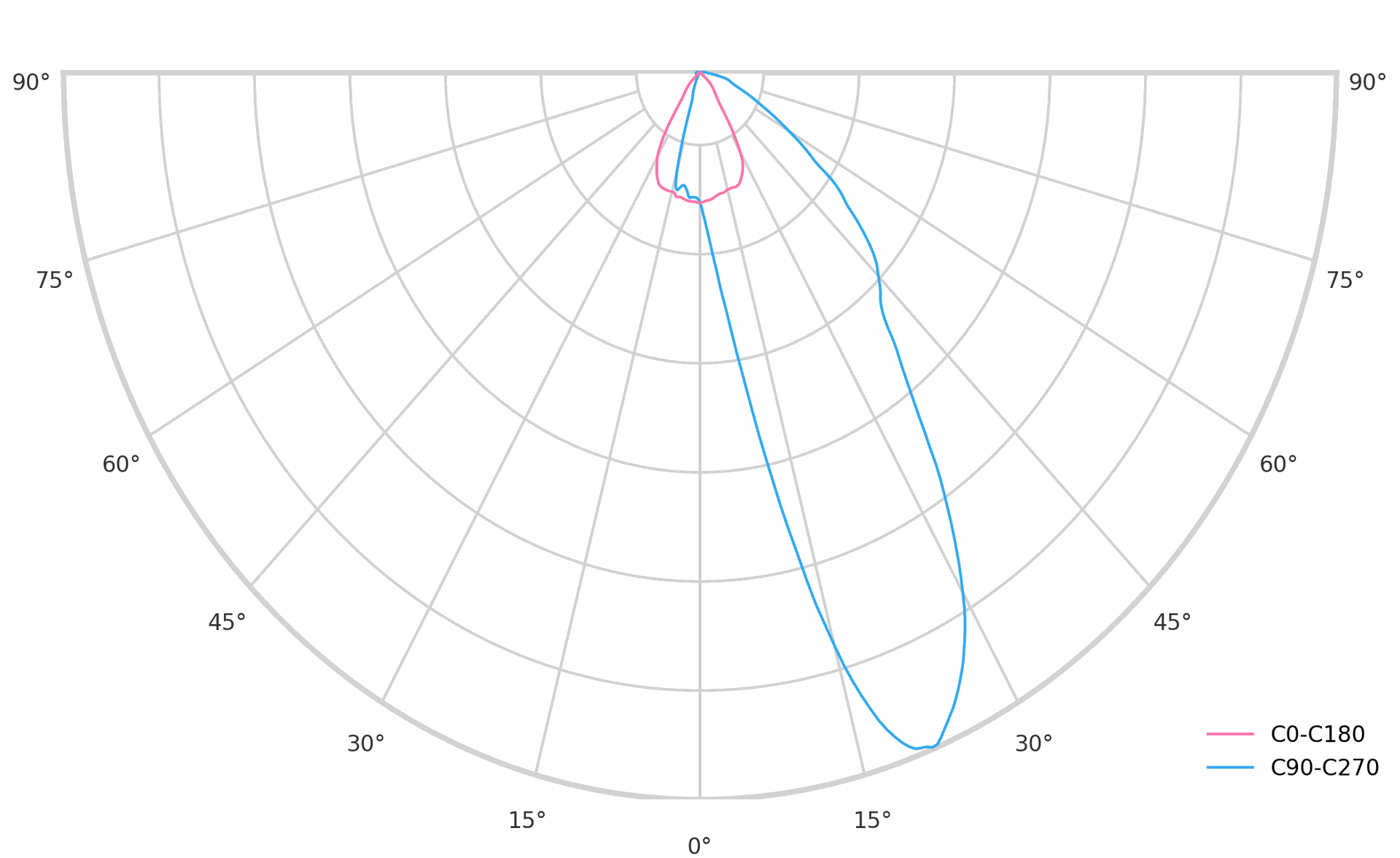

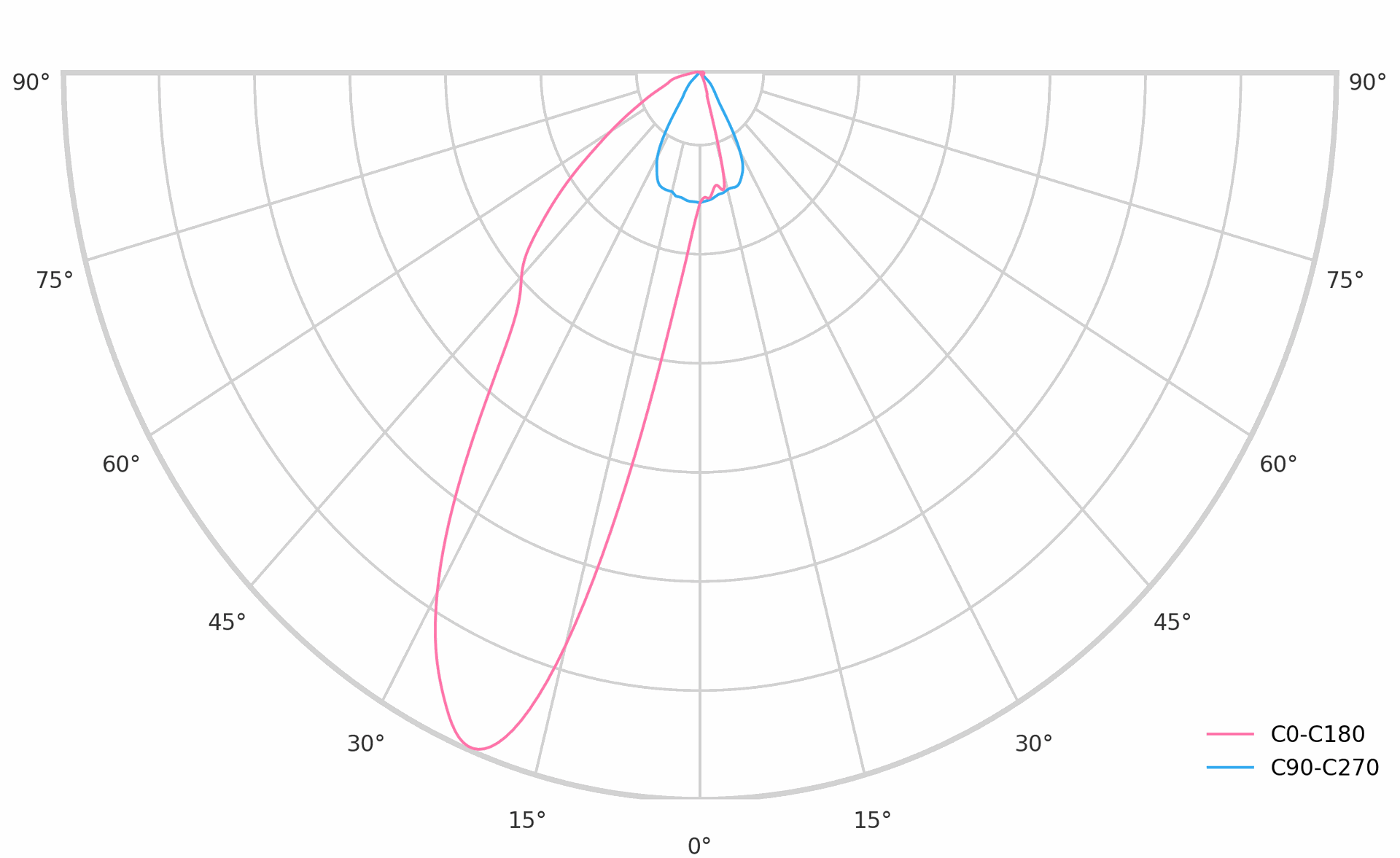

Dimmensions and light distribution
