Office solutions · LED
PRIME-8-M-840-2-PD-BL

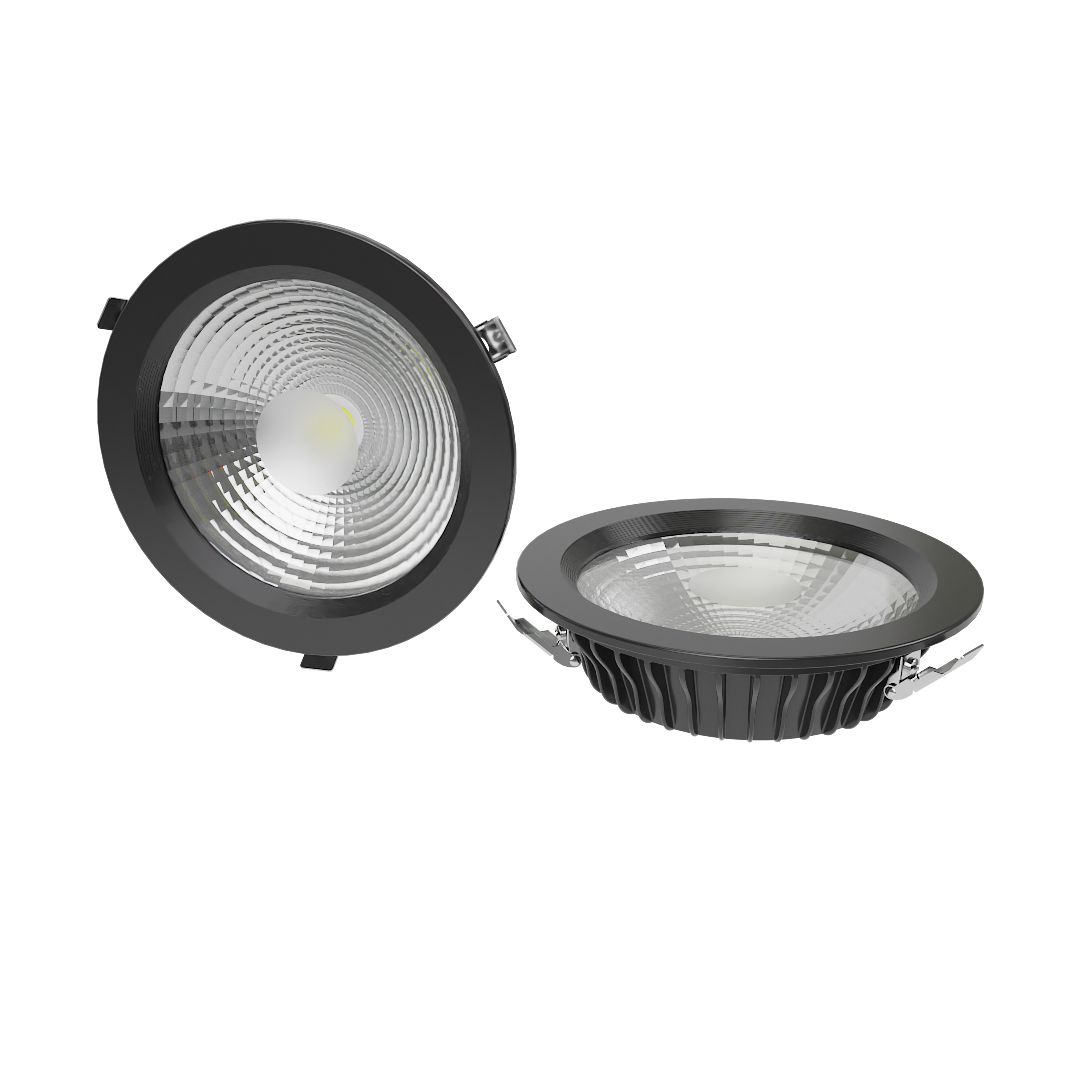

Prime is a recessed LED downlight with aluminum reflector and LED source with 50,000 hours lifetime. Available in 3 sizes and 3 power options, color temperatures 3000K/4000K with CRI 80+. Three light distribution types (Clear, Diffuse, Partly diffuse) with separate LED driver and DALI control option available. Ideal for offices, commercial spaces and residential buildings. 5-year warranty.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 80
- Switching type
- DALI
- Connected load
- 18.30 W
- Lumen output
- 2,185.00 lm
- Efficiency
- 119.4 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
DALI
IP protection
44/20
Protection class
II
Ambient temperature
0 to +30 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
18.30 W
Lumen output
2,185.00 lm
Efficiency
119.4 lm/W
Optical system
Reflector
Optical part material
Hardened glass
Housing material
Die-cast aluminium
Surface finish
Powder coated
Height
75.00 mm
Diameter
242.00 mm
Weight
1.00 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing colors

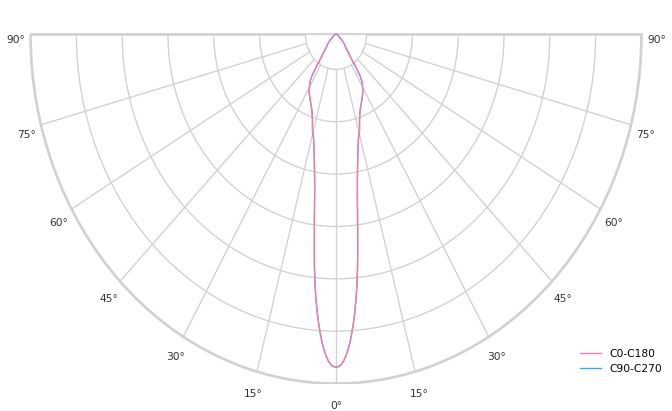

Dimmensions and light distribution
