Industrial solutions · LED

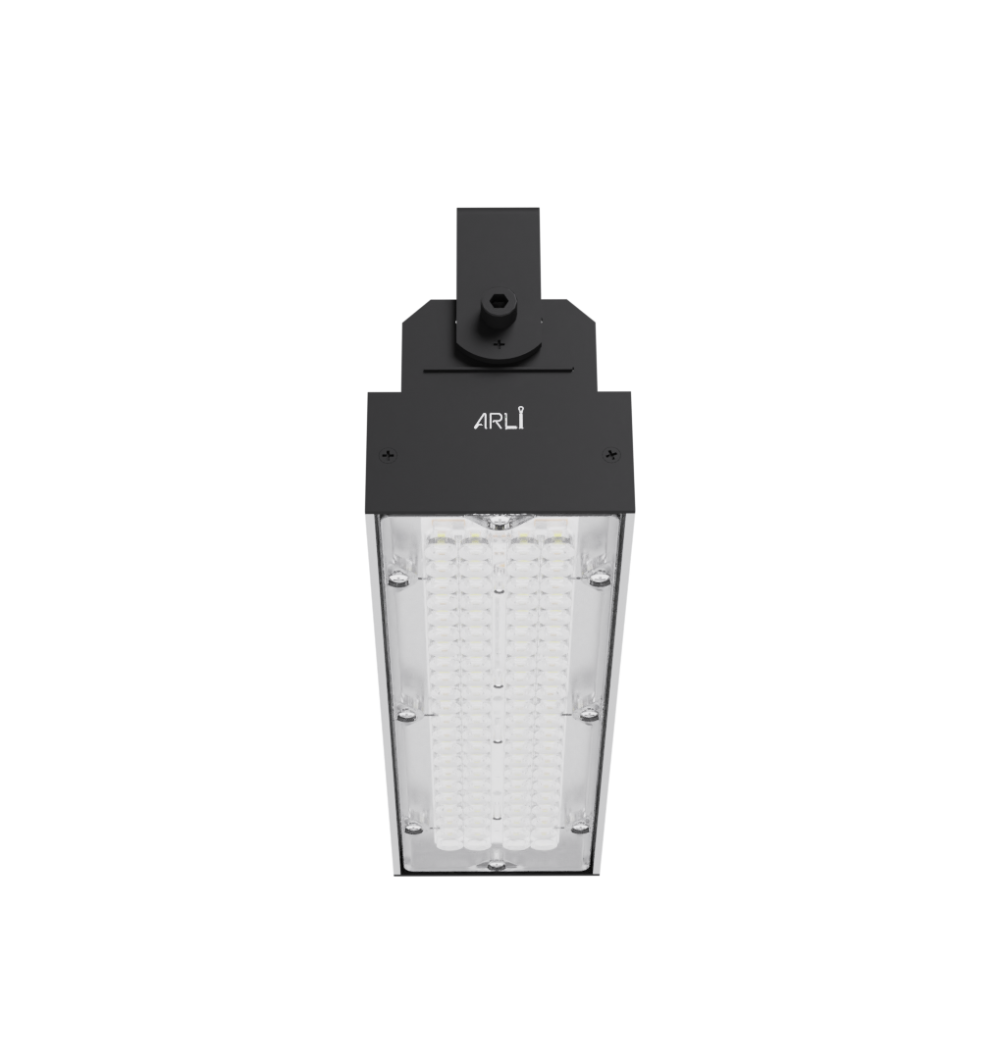

INDSUR3-S-850-1-90
High-bay led light created with an emphasis on efficiency and easy installation. Suitable for installation in warehouses and production halls.
Technical specifications
- Light Source
- LED
- CCT
- 5000k
- CRI
- 80
- Switching type
- Non-dimmable
- Connected load
- 68.63 W
- Lumen output
- 10,741.50 lm
- Efficiency
- 156.5 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
Non-dimmable
IP protection
65
Protection class
I
Impact rating
IK 08
Ambient temperature
-25 to 30 °C
Light Source
LED
CCT
5000k
CRI
80
Connected load
68.63 W
Lumen output
10,741.50 lm
Efficiency
156.5 lm/W
Ripple
3 %
Inrush current
89 A
Inrush time
584 μs
Optical system
Lenses
Optical part material
PC
Housing material
Aluminium
Surface finish
Powder coated
Width
92.00 mm
Height
100.00 mm
Length
320.00 mm
Weight
3.10 kg
Service lifetime (L80 B10)
>100 000 h
Warranty
7 years
Illuminance Calculator
10741 lm
· 68.63 W
· Non-dimmable
Dimmensions and light distribution

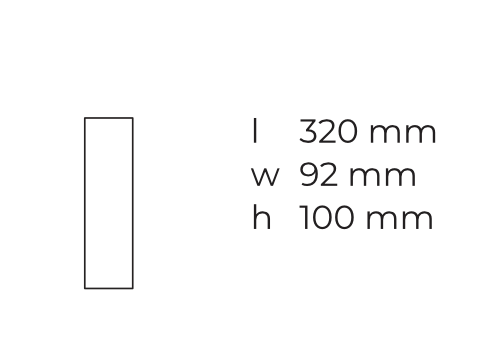

Dimmensions

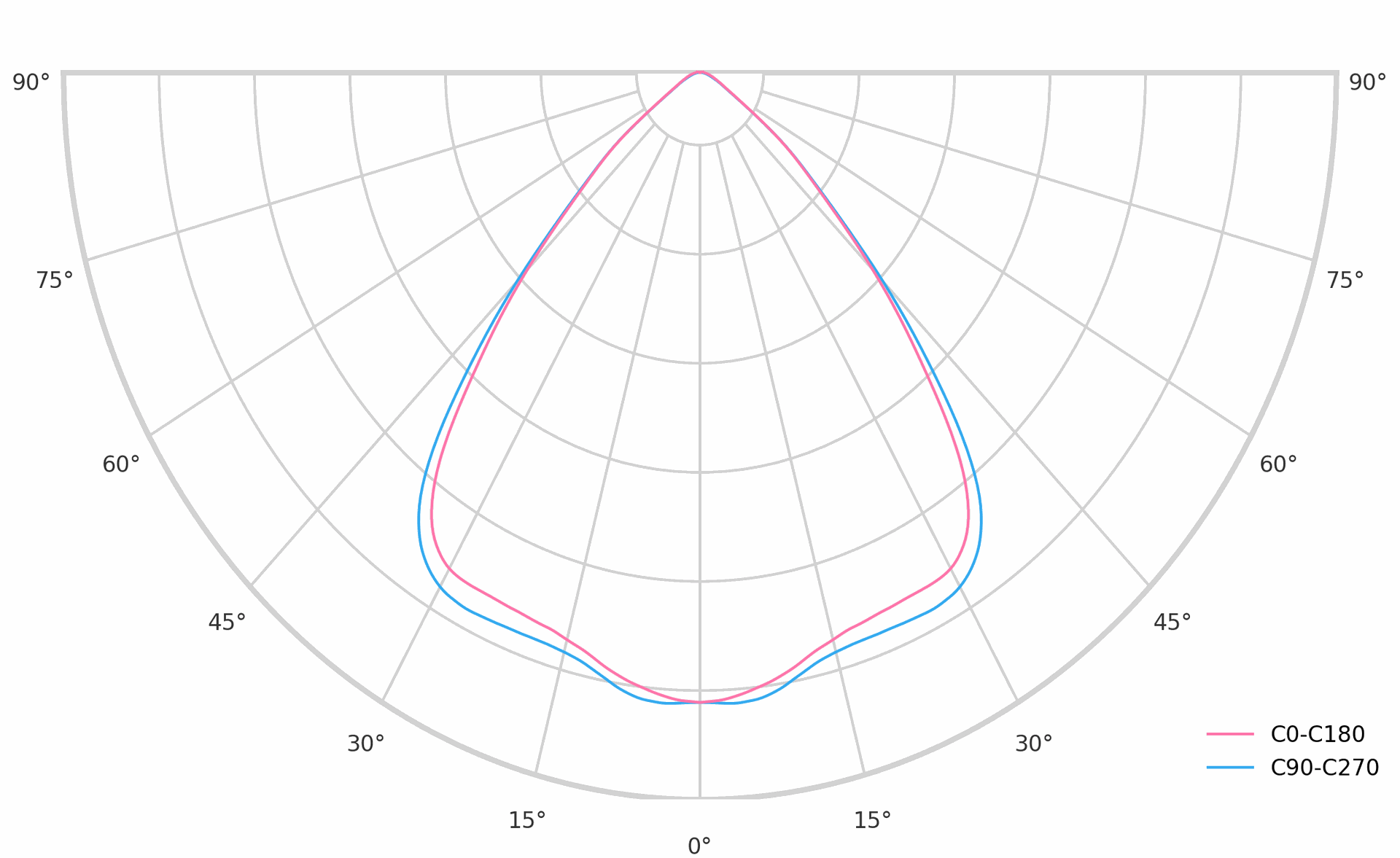

Polar curve
