DL easy

Office solutions · LED

DL-M-840-1

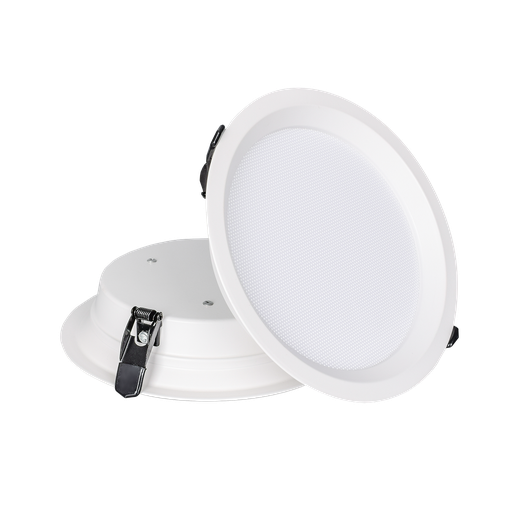

Indoor LED recessed mounted downlight with aluminum reflector. With separate LED driver for direct connection to mains voltage

Technical specifications

Light Source
LED
CCT
4000k
CRI
80
Switching type
Non-dimmable
Connected load
22.00 W
Lumen output
2,530.00 lm
Efficiency
115.0 lm/W
LED
220 - 240V AC, 50/60Hz
20
II
ce
4000k
80

Downloads

↓ Datasheet PDF → ↓ LDT file LDT → ↓ CE PDF → ↓ Manual PDF →

Technical data

Mains voltage

220 - 240V AC, 50/60Hz

Connection method

Screw terminal

Switching type

Non-dimmable

IP protection

20

Protection class

II

Ambient temperature

0 to +25 °C

Light Source

LED

CCT

4000k

CRI

80

Connected load

22.00 W

Lumen output

2,530.00 lm

Efficiency

115.0 lm/W

Optical system

Diffuser

Optical part material

PMMA

Housing material

Aluminium

Surface finish

Powder coated

Height

35.00 mm

Diameter

185.00 mm

Weight

0.40 kg

Service lifetime (L70 B50)

30 000 h

Warranty

2 years

Illuminance Calculator

2530 lm · 22.0 W · Non-dimmable
Enter room width (1-100 m)
Enter room length (1-100 m)
Enter room height (2-20 m)
Must be less than or equal to room height
Select a room type
Select room cleanliness

Dimmensions and light distribution

DL easy

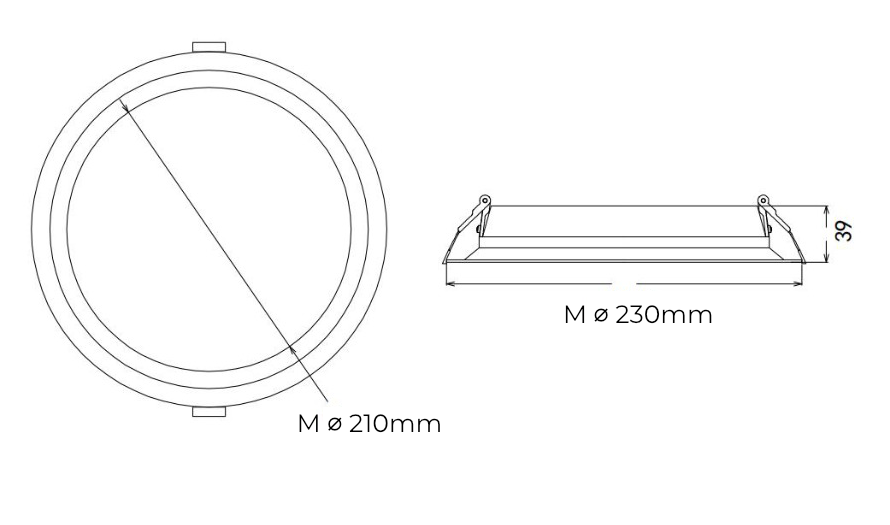

Dimmensions
DL easy

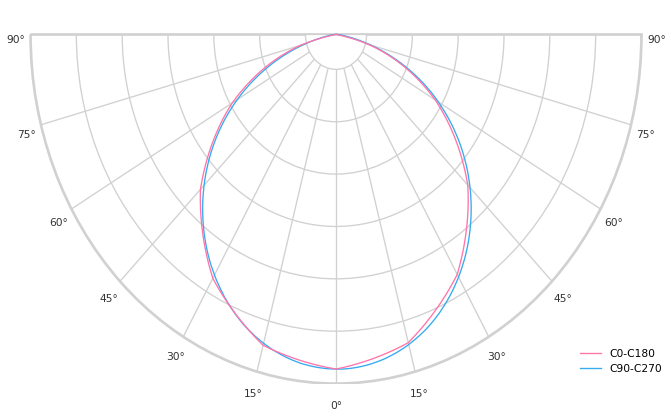

Polar curve
