Retails solutions · LED
DIABLOART-BL-M-1-24
Light that tells the truth about colour. Track spotlight for galleries, museums and showrooms A painting should look the way the artist painted it — not the way a light fitting tints it. Diablo Art therefore uses a full spectrum close to daylight: reds stay red, skin tones in a portrait stay alive, a white canvas stays white. With colour rendering of CRI 97 it ranks among the most faithful light sources installed in exhibition spaces today. Every spotlight in the room emits the same shade of white, so a wall with twenty paintings doesn’t end up with twenty different whites. Four beam widths from narrow spot to wide flood, DALI dimming, black or white housing. Fits standard 3-circuit track and replaces an existing spotlight without touching the ceiling. 5-year warranty.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 97
- Connected load
- 19.53 W
- Lumen output
- 1,716.00 lm
- Efficiency
- 87.9 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3-phase track adapter
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
97
Connected load
19.53 W
Lumen output
1,716.00 lm
Efficiency
87.9 lm/W
Ripple
5 %
Inrush current
7 A
Inrush time
28 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Height
132.00 mm
Diameter
90.00 mm
Weight
0.80 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Housing colors

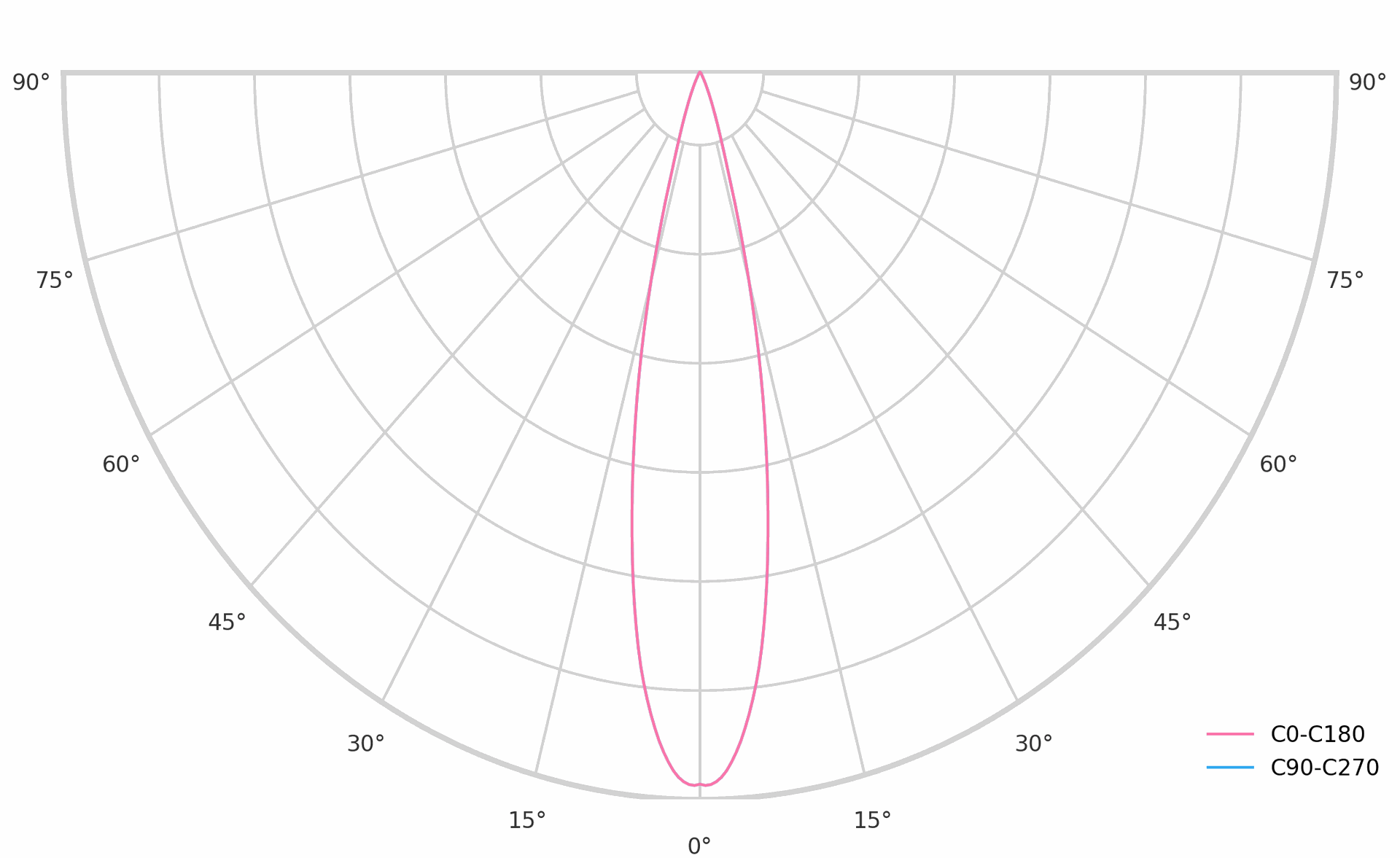

Dimmensions and light distribution
