Office solutions · LED

LINBASSUS-WH-L-1-840

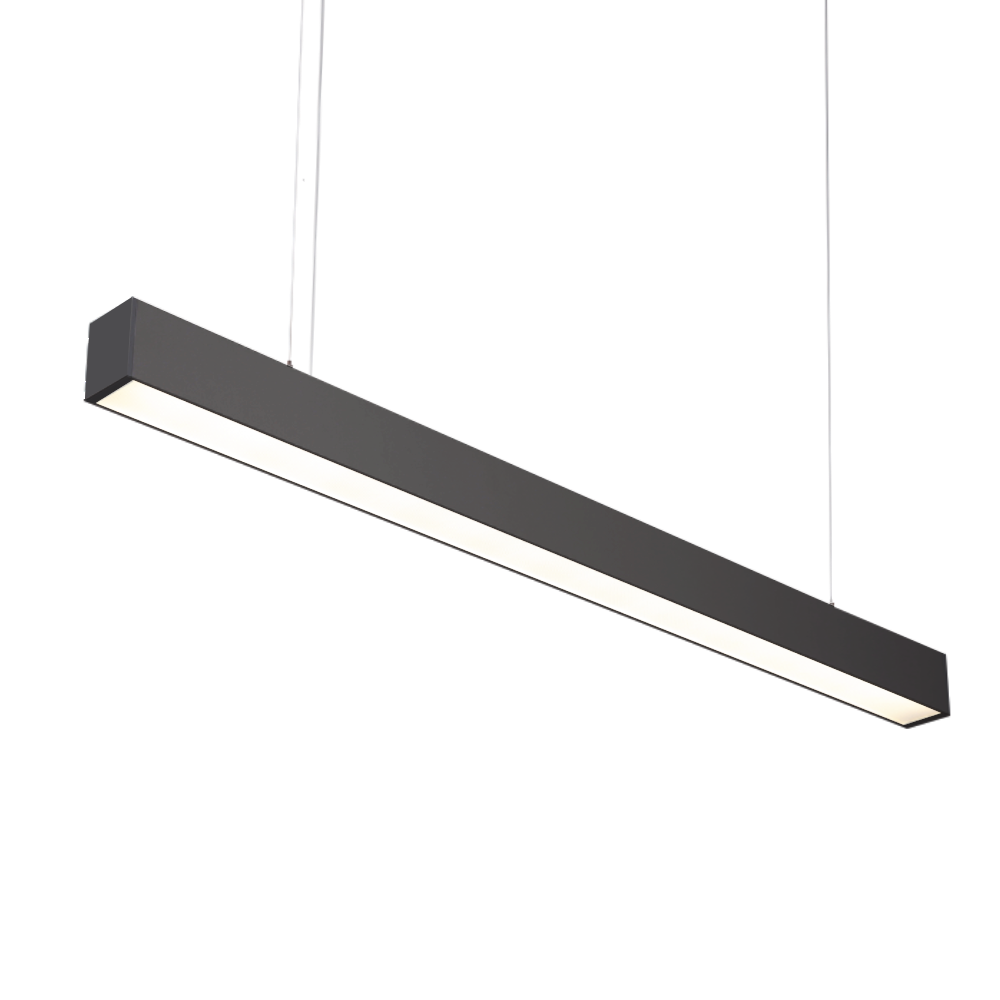

Linear pendant luminaire for offices, classrooms and corridors. Aluminium profile 45 × 75 mm, PC diffuser, white or black finish (RAL 9003 / RAL 9005).

Technical specifications

Light Source: LED
CCT: 4000
CRI: 80
Connected load: 39.60 W
Lumen output: 4,650.00 lm
Efficiency: 117.4 lm/W

Downloads

↓ Datasheet PDF → ↓ LDT file LDT → ↓ CE PDF → ↓ Manual PDF →

Technical data

Mains voltage

220 - 240V AC, 50/60Hz

Connection method

Plug-in terminal

IP protection

Protection class

Ambient temperature

0 to +25 °C

Light Source

LED

CCT

4000

CRI

Connected load

39.60 W

Lumen output

4,650.00 lm

Efficiency

117.4 lm/W

Optical system

Diffuser

Optical part material

Housing material

Aluminium

Surface finish

Powder coated

Width

45.00 mm

Height

75.00 mm

Length

1,208.00 mm

Weight

1.60 kg

Service lifetime (L70 B10)

100 000 h

Warranty

5 years

Illuminance Calculator

4650 lm · 39.6 W

Room width (m) *

Enter room width (1-100 m)

Room length (m) *

Enter room length (1-100 m)

Room height (m) *

Enter room height (2-20 m)

Mounting heights of lights (m) *

Must be less than or equal to room height

Room type *

Select a room type

Use custom illuminance and uniformity values

Room cleanliness *

Select room cleanliness

Illuminance calculation completed successfully

Calculation Results

Number of luminaires

Average illuminance

- lx

Uniformity

Total power

- W

Product

Flux

Power

Total power

Total flux

Maintenance factor

0.8

Room dimensions

Area

Room type

Total flux per area

Total power per area

Floor Plan

Light distribution Map

Room cross-section

* This is an indicative calculation only. For a precise lighting design project, do not hesitate to contact us.

Want to save calculations and see your prices? Get in touch — we'll set up your account.

Housing colors

Black RAL 9005

White RAL 9003

Dimmensions and light distribution

Dimmensions

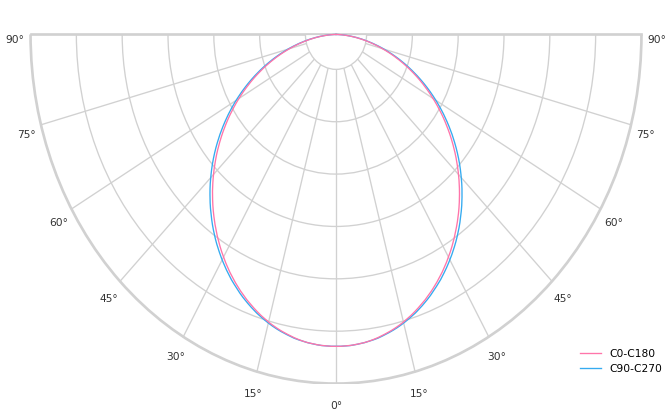

Polar curve
