Base Track

BASETR-L-930-1-WH

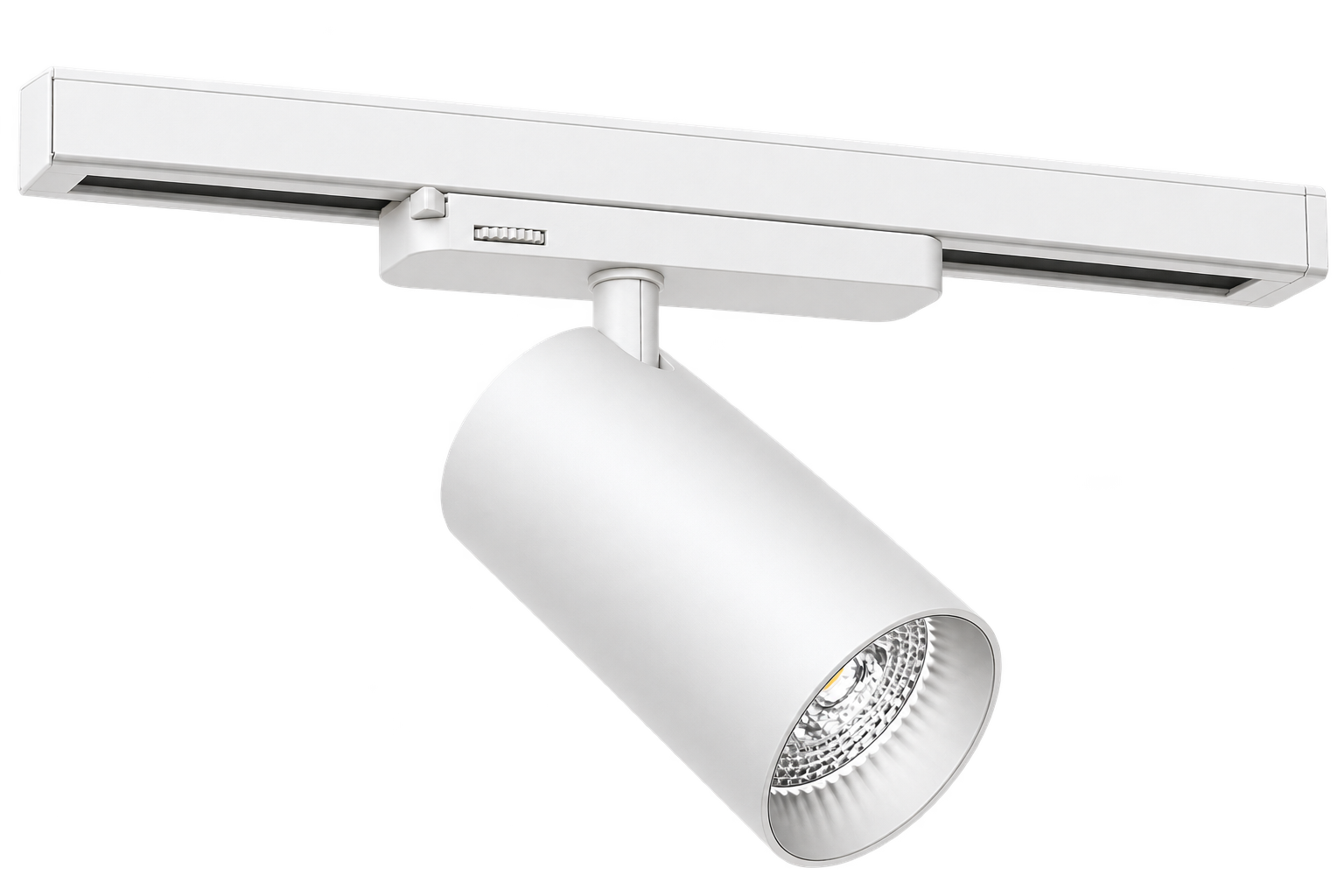

A track spotlight for retail stores, showrooms and exhibition spaces. A COB light source with CRI > 90 and two-axis adjustment let you aim light precisely at merchandise or displays. Black or white finish, for 3-phase track. Part of the Base range. Standard version without configuration, at a price that holds up in budget-driven projects.

Technical specifications

Light Source
LED
CCT
3000
CRI
90
Connected load
27.60 W
Lumen output
2,721.00 lm
Efficiency
98.6 lm/W
LED
220 - 240V AC, 50/60Hz
20
II
ce
True
90

Downloads

↓ Datasheet PDF → ↓ LDT file LDT → ↓ CE PDF → ↓ Manual PDF →

Technical data

Mains voltage

220 - 240V AC, 50/60Hz

Connection method

3-phase track adapter

IP protection

20

Protection class

II

Ambient temperature

0 to +25 °C

Light Source

LED

CCT

3000

CRI

90

Connected load

27.60 W

Lumen output

2,721.00 lm

Efficiency

98.6 lm/W

Optical system

Lenses

Optical part material

PMMA

Housing material

Aluminium

Surface finish

Powder coated

Height

160.00 mm

Diameter

78.00 mm

Weight

0.53 kg

Service lifetime (L80 B30)

50 000 h

Warranty

5 years

Illuminance Calculator

2721 lm · 27.6 W
Enter room width (1-100 m)
Enter room length (1-100 m)
Enter room height (2-20 m)
Must be less than or equal to room height
Select a room type
Select room cleanliness

Housing colors

Black Black RAL 9005
White White RAL 9003

Dimmensions and light distribution

Base Track
Dimmensions
Base Track

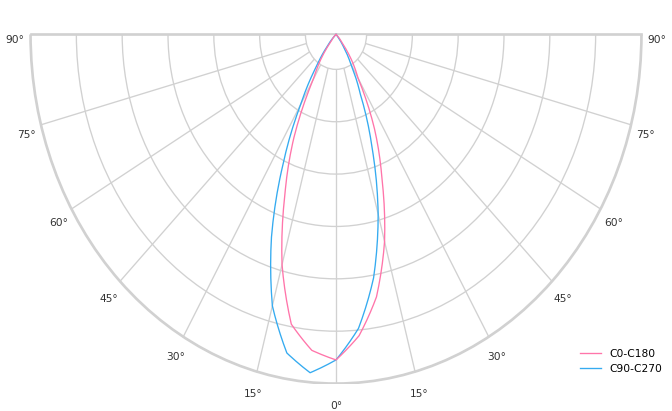

Polar curve
