BASETR-M-940-1-BL

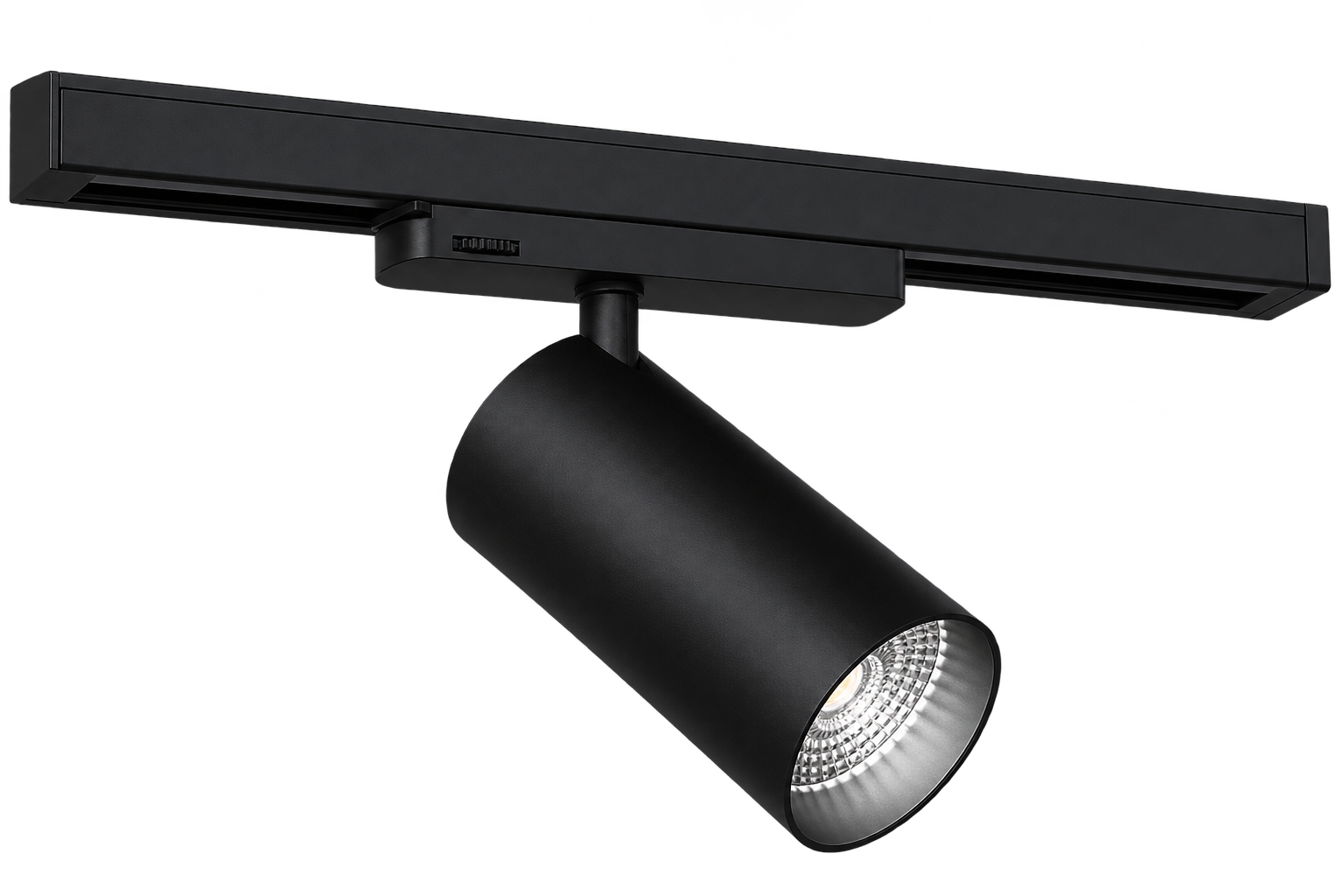

A track spotlight for retail stores, showrooms and exhibition spaces. A COB light source with CRI > 90 and two-axis adjustment let you aim light precisely at merchandise or displays. Black or white finish, for 3-phase track. Part of the Base range. Standard version without configuration, at a price that holds up in budget-driven projects.
Technical specifications
- Light Source
- LED
- CCT
- 4000
- CRI
- 90
- Connected load
- 19.80 W
- Lumen output
- 1,908.00 lm
- Efficiency
- 96.4 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3-phase track adapter
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000
CRI
90
Connected load
19.80 W
Lumen output
1,908.00 lm
Efficiency
96.4 lm/W
Optical system
Lenses
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Height
130.00 mm
Diameter
65.00 mm
Weight
0.35 kg
Service lifetime (L80 B30)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing colors

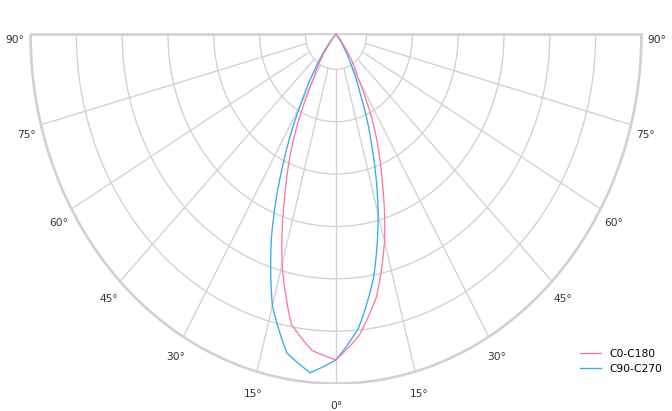

Dimmensions and light distribution
