ReconVis-S-840-25

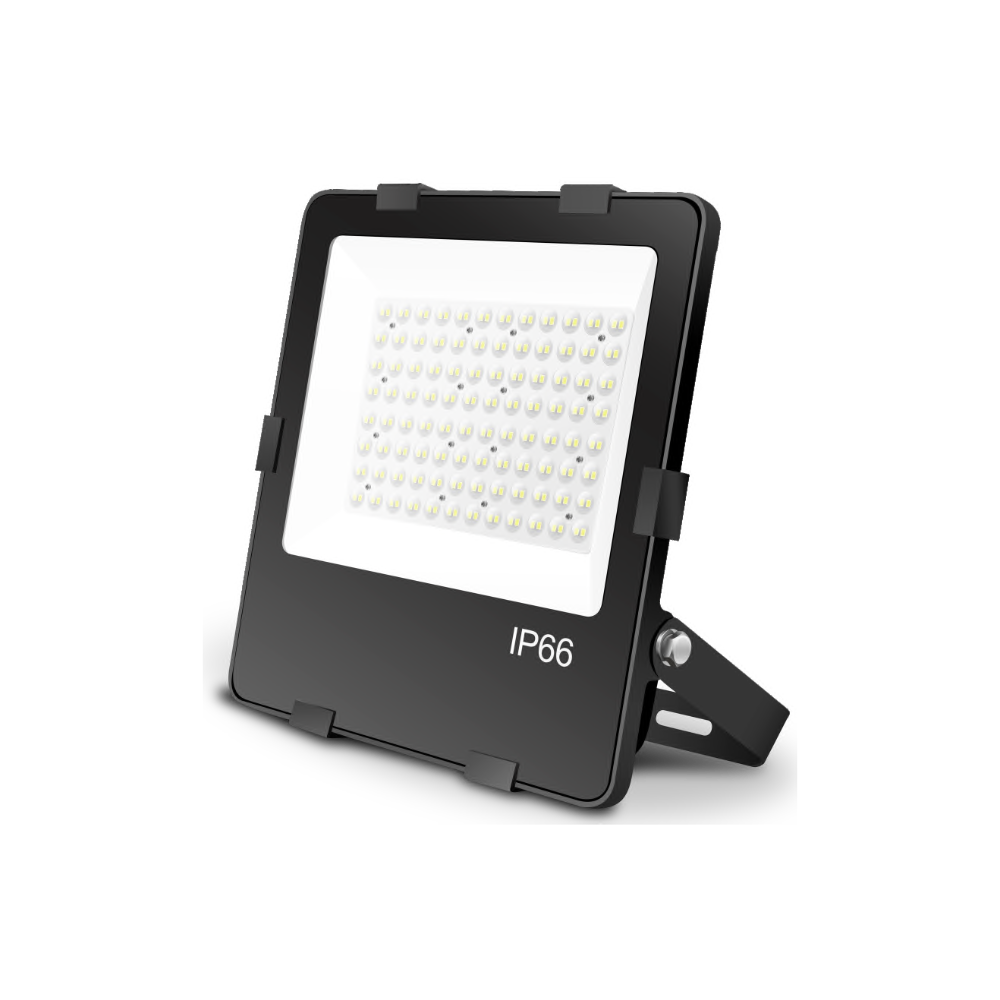

Recon Vision is a tiltable floodlight for production lines. It lights an assembly spot, a part position or the area a camera captures. The floodlight mounts on the machine frame and tilts onto the spot that needs light. The optic is selected at order: 10° for small areas, 25° for larger ones. We fit it in production. The luminaires have low ripple, under 3 % at 100 Hz. That is why vision gets no black frames.
Technical specifications
- Light Source
- LED
- Connected load
- 27.44 W
- Lumen output
- 3,631.20 lm
- Efficiency
- 132.3 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
IP protection
66
Protection class
I
Impact rating
IK 08
Ambient temperature
-30 to +35 °C
Light Source
LED
Connected load
27.44 W
Lumen output
3,631.20 lm
Efficiency
132.3 lm/W
Ripple
1 %
Inrush current
12 A
Inrush time
41 μs
Optical system
Lenses
Optical part material
Hardened glass
Housing material
Die-cast aluminium
Surface finish
Powder coated
Width
204.00 mm
Height
50.00 mm
Length
232.00 mm
Service lifetime (L80 B10)
35 000 h
Warranty
5 years

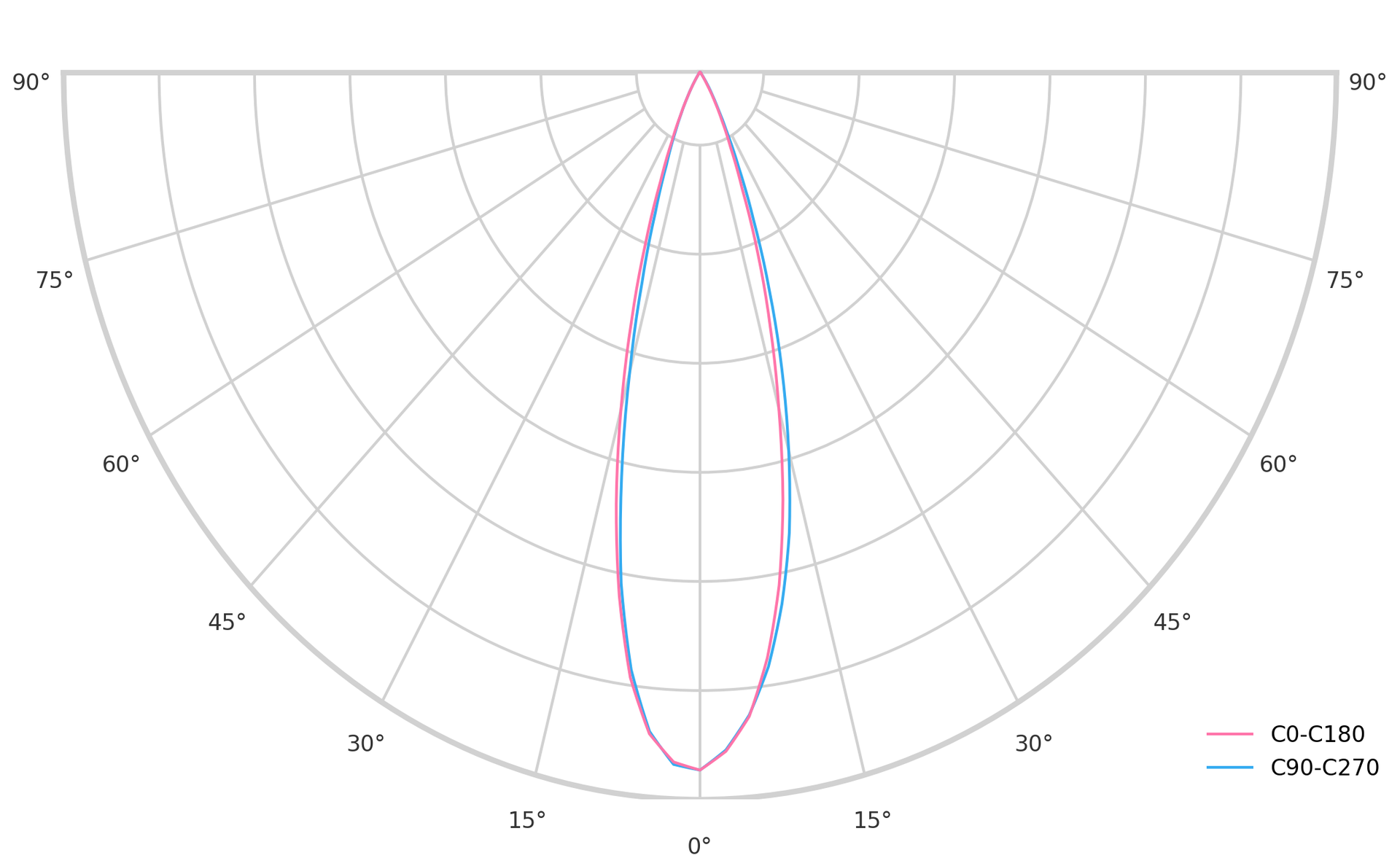

Dimmensions and light distribution
