Trium

Industrial solutions · LED

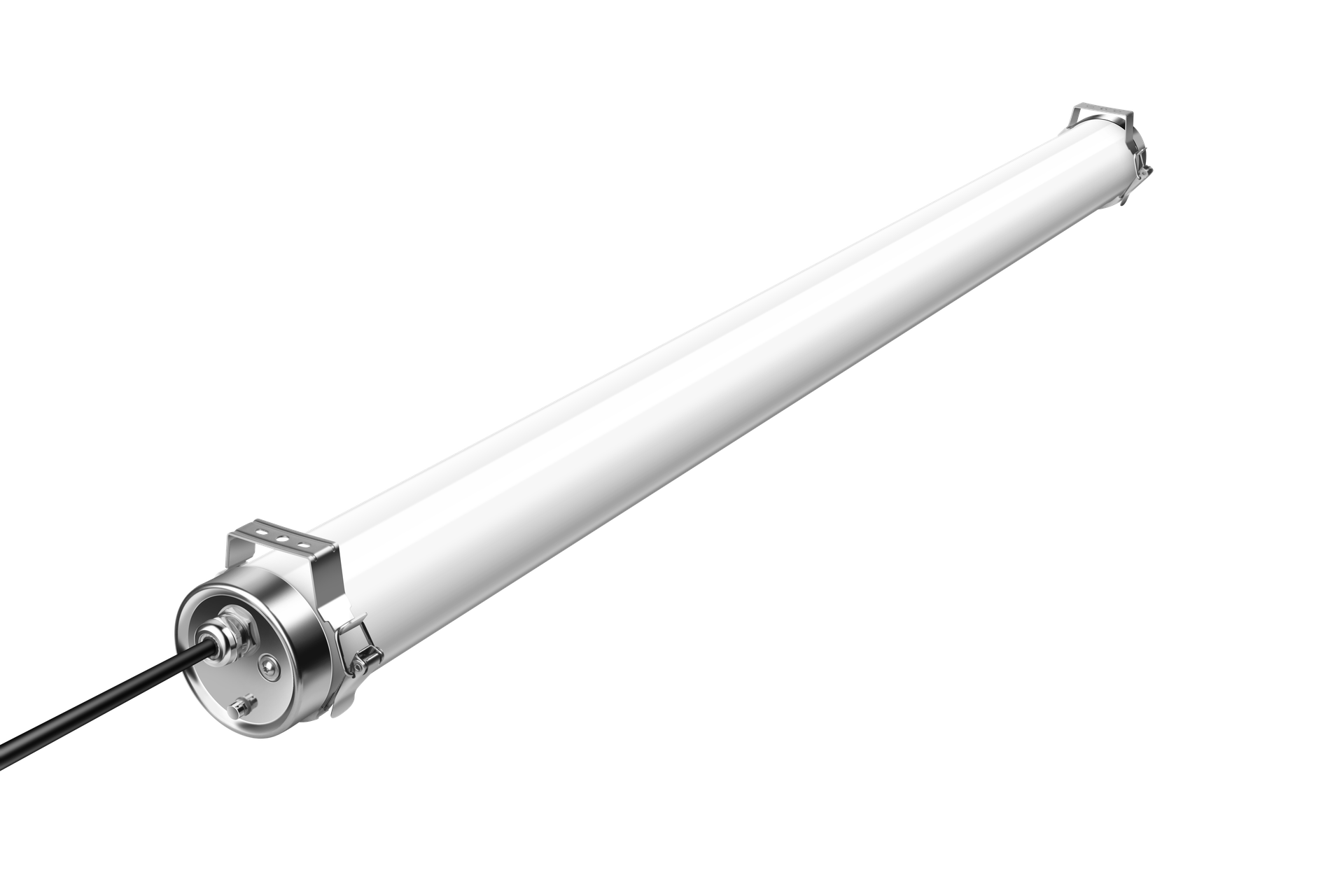

TRIUM-M-840-1

Linear LED luminaire rated IP69K. Built for food processing and industrial facilities that clean with pressure and steam. 5-year warranty.

Technical specifications

Light Source
LED
CCT
4000
CRI
80
Connected load
55.86 W
Lumen output
8,000.00 lm
Efficiency
143.2 lm/W
LED
220 - 240V AC, 50/60Hz
69k
I
ce
80

Downloads

↓ Datasheet PDF → ↓ LDT file LDT → ↓ CE PDF → ↓ Manual PDF →

Technical data

Mains voltage

220 - 240V AC, 50/60Hz

Connection method

Connection cable

IP protection

69k

Protection class

I

Impact rating

IK 10

Ambient temperature

-20 to +45 °C

Light Source

LED

CCT

4000

CRI

80

Connected load

55.86 W

Lumen output

8,000.00 lm

Efficiency

143.2 lm/W

Inrush current

15 A

Inrush time

220 μs

Optical system

Diffuser

Optical part material

PMMA

Housing material

Plastic

Width

81.00 mm

Height

81.00 mm

Length

1,500.00 mm

Weight

2.30 kg

Service lifetime (L70 B10)

102 000 h

Warranty

5 years

Illuminance Calculator

8000 lm · 55.86 W
Enter room width (1-100 m)
Enter room length (1-100 m)
Enter room height (2-20 m)
Must be less than or equal to room height
Select a room type
Select room cleanliness

Dimmensions and light distribution

Trium
Dimmensions
Trium

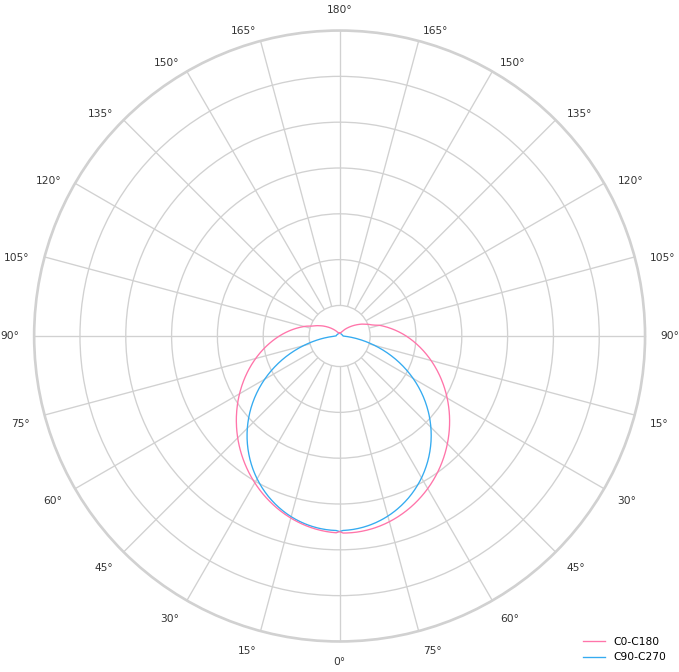

Polar curve
