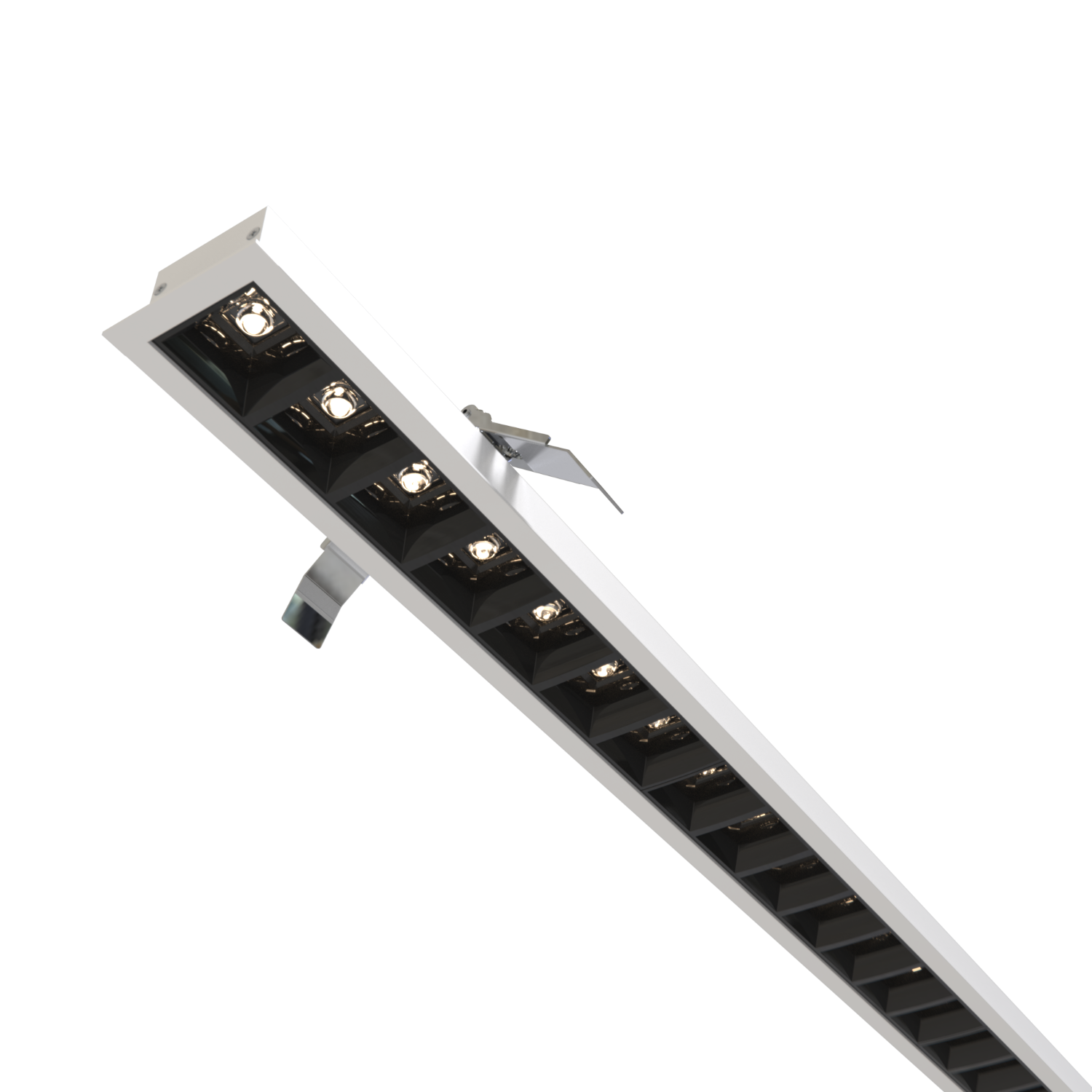

WORREC-579-S-850-2-80-WH
Technical specifications
Light Source
LED
Switching type
DALI
Connected load
18.67 W
Lumen output
2,390.02 lm
Efficiency
128.0 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Screw terminal
Switching type
DALI
IP protection
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
Connected load
18.67 W
Lumen output
2,390.02 lm
Efficiency
128.0 lm/W
Ripple
3 %
DALI address
1
Standby power
0.50 W
Inrush current
5 A
Inrush time
45 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
59.00 mm
Height
53.00 mm
Length
579.00 mm
Weight
1.00 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing color

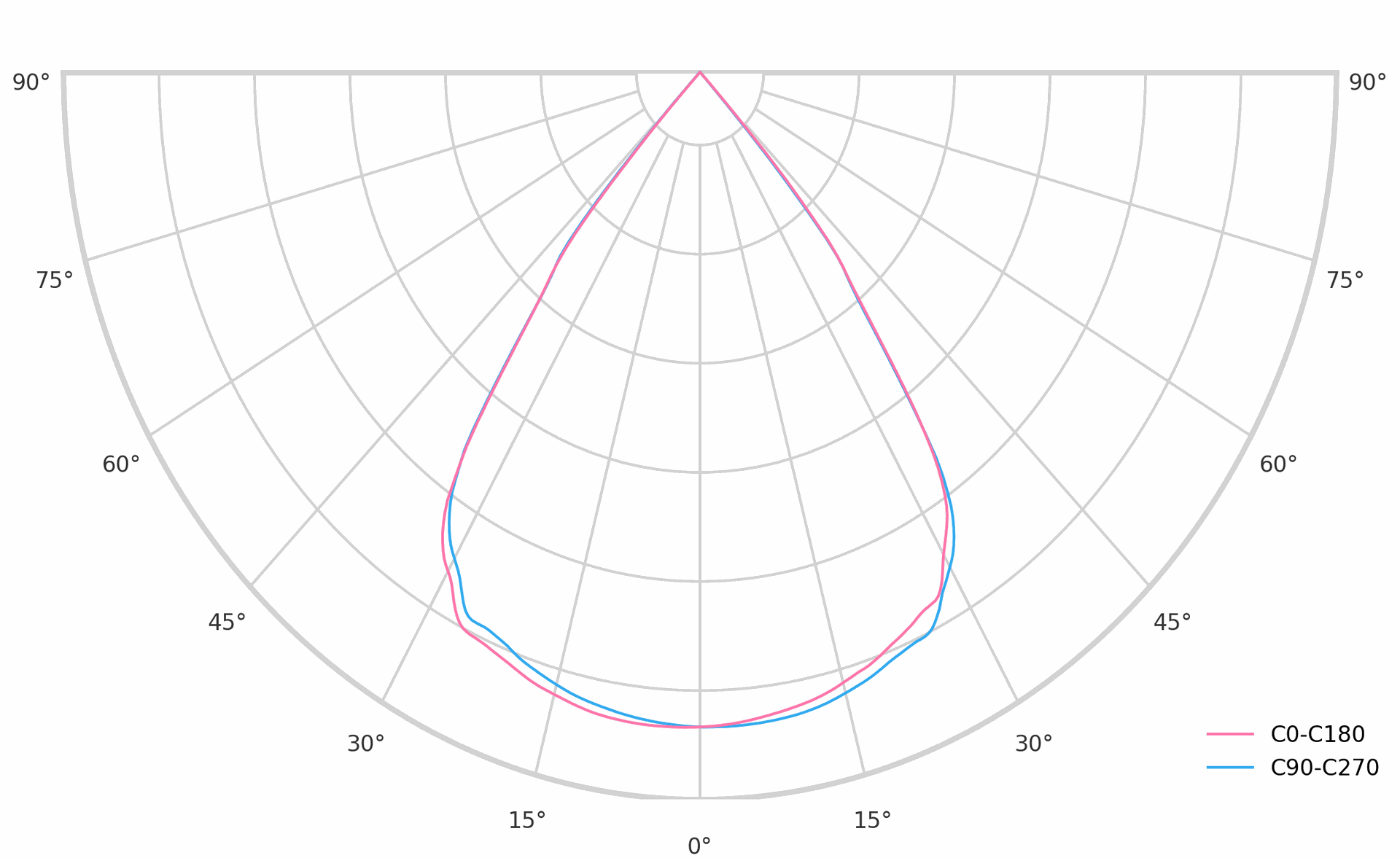

Dimmensions and light distribution
