Office solutions · LED
DIABLOSUS-M-935-2-24-WH-

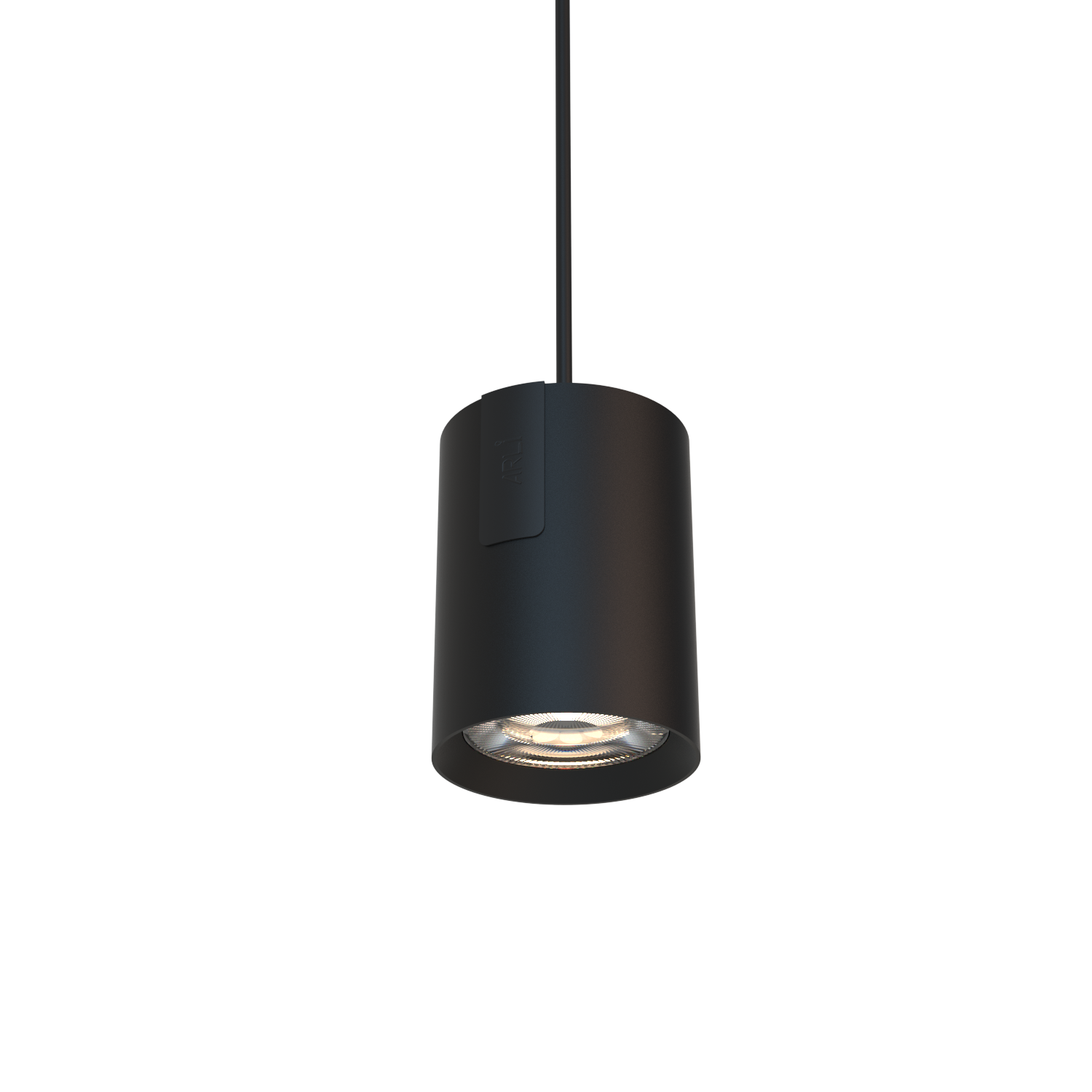

Diablo is a compact suspended 3-phase LED spotlight with integrated power supply and aluminum heatsink with 50,000 hours lifetime. Available in 3 power options, wide range of color temperatures (2700K-4000K) with CRI 80+/90+. Four light distribution types (15°, 24°, 36°, 60°) and DALI control option available. Ideal for commercial spaces, showrooms and households. 5-year warranty.
Technical specifications
- Light Source
- LED
- Switching type
- DALI
- Connected load
- 19.60 W
- Lumen output
- 2,545.84 lm
- Efficiency
- 129.9 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3-phase track adapter
Switching type
DALI
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
Connected load
19.60 W
Lumen output
2,545.84 lm
Efficiency
129.9 lm/W
Ripple
3 %
DALI address
1
Standby power
0.50 W
Inrush current
5 A
Inrush time
50 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Die-cast aluminium
Surface finish
Powder coated
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing colors
Cable colors

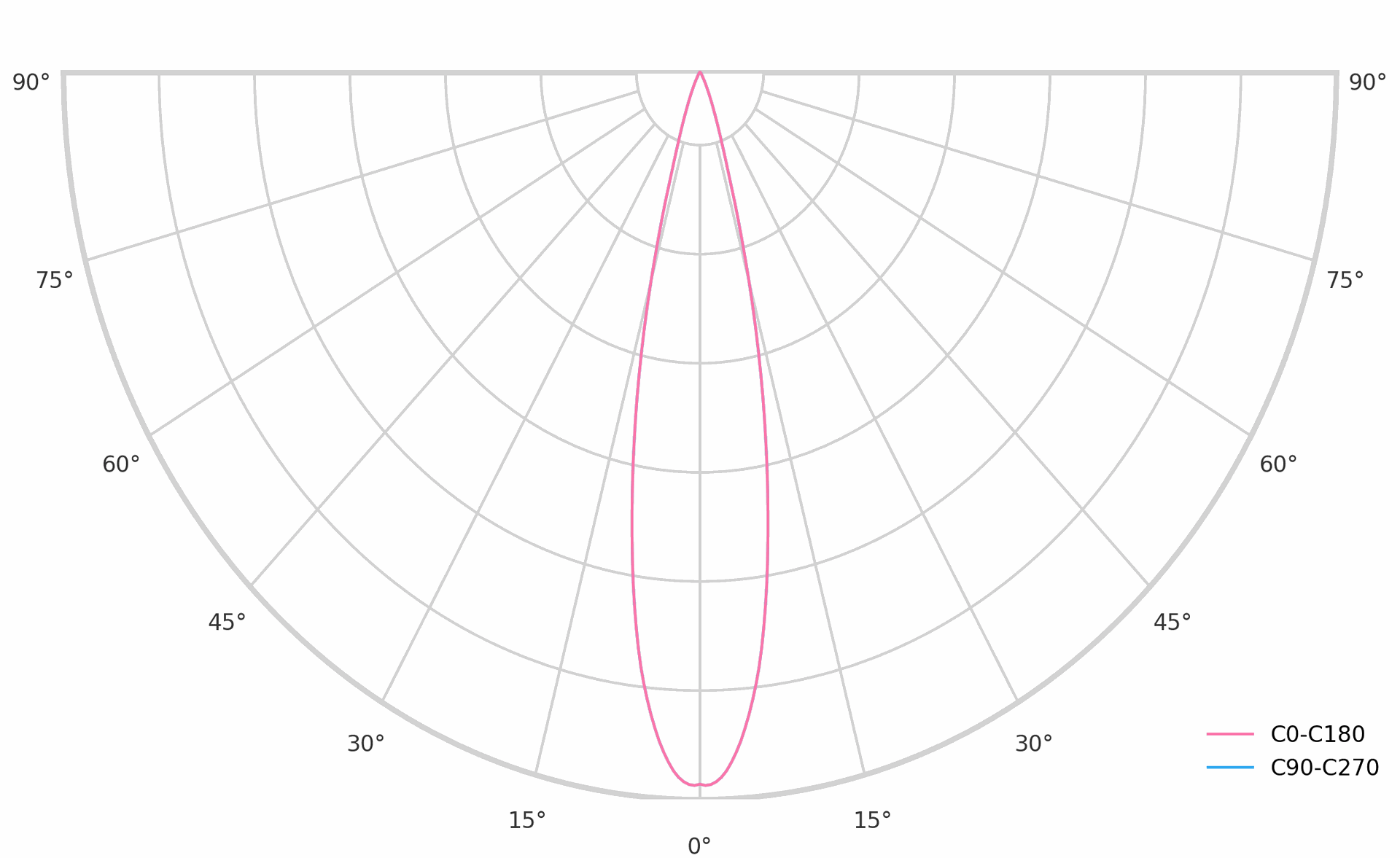

Dimmensions and light distribution
