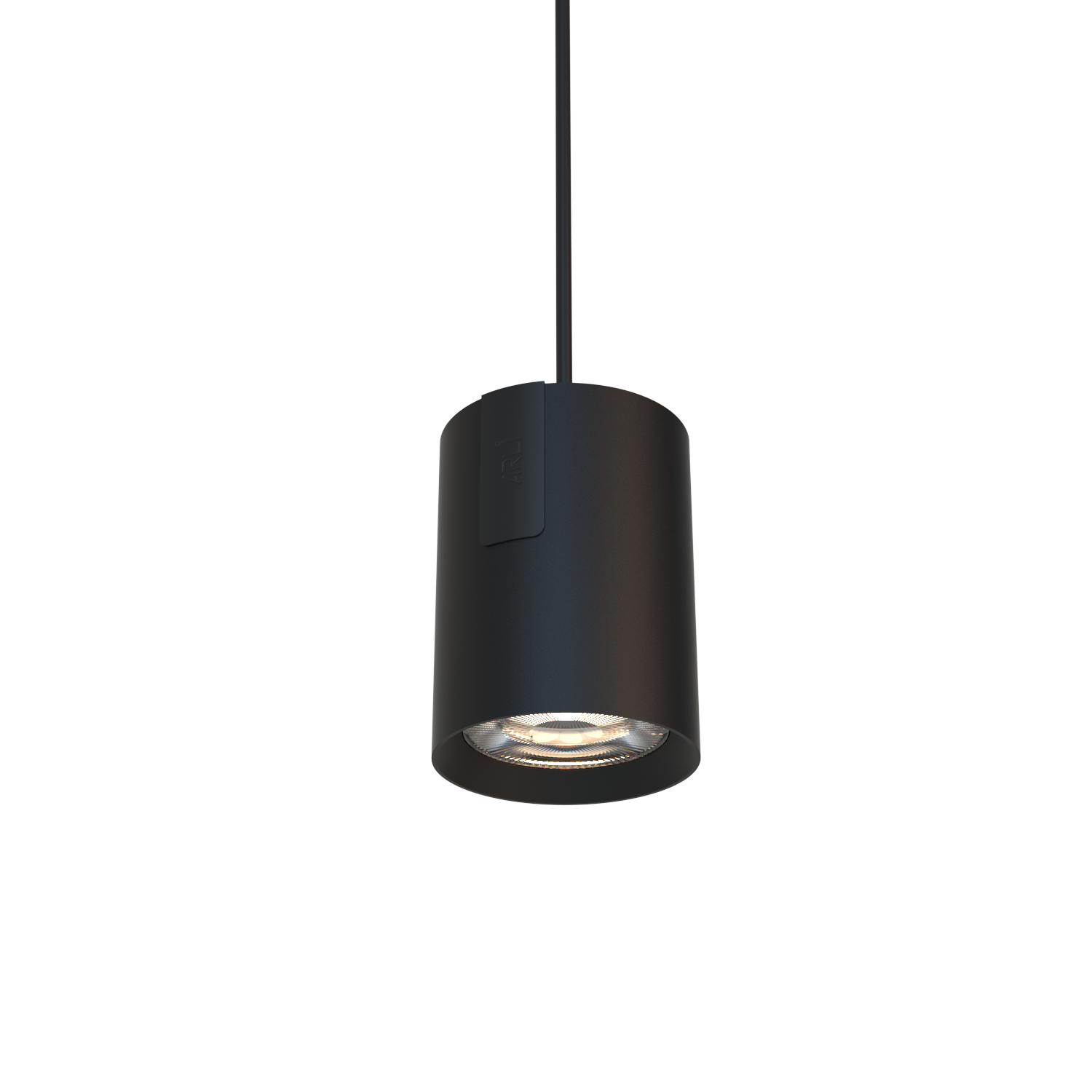

DIABLOSUS-M-835-1-36-BL-

Technical specifications

Light Source

LED

Switching type

Non-dimmable

Connected load

19.11 W

Lumen output

2,786.96 lm

Efficiency

145.8 lm/W

Downloads

Datasheet

LDT file

Manual

Technical data

Mains voltage

220 - 240V AC, 50/60Hz

Connection method

3-phase track adapter

Switching type

Non-dimmable

IP protection

Protection class

Ambient temperature

0 to +25 °C

Light Source

LED

Connected load

19.11 W

Lumen output

2,786.96 lm

Efficiency

145.8 lm/W

Ripple

5 %

Inrush current

7 A

Inrush time

28 μs

Optical system

Lenses

Optical part material

PMMA

Housing material

Die-cast aluminium

Surface finish

Powder coated

Service lifetime (L80 B10)

50 000 h

Warranty

5 years

Illuminance Calculator

Room width (m) *

Enter room width (1-100 m)

Room length (m) *

Enter room length (1-100 m)

Room height (m) *

Enter room height (2-20 m)

Mounting heights of lights (m) *

Must be less than or equal to room height

Room type *

Select a room type

Use custom illuminance and uniformity values

Room cleanliness *

Select room cleanliness

Illuminance calculation completed successfully

Calculation Results

Number of luminaires

Average illuminance

- lx

Uniformity

Total power

- W

Product

Flux

Power

Total power

Total flux

Maintenance factor

0.8

Room dimensions

Area

Room type

Total flux per area

Total power per area

Floor Plan

Light distribution Map

Room cross-section

* This is an indicative calculation only. For a precise lighting design project, do not hesitate to contact us.

Want to save calculations and see your prices? Get in touch — we'll set up your account.

Housing color

RAL 9005

Cable colors

0111

0900

8765

7953

3119

4867

4906

5305

2166

4406

3358

5474

5744

1257

3119z

0900z

5305z

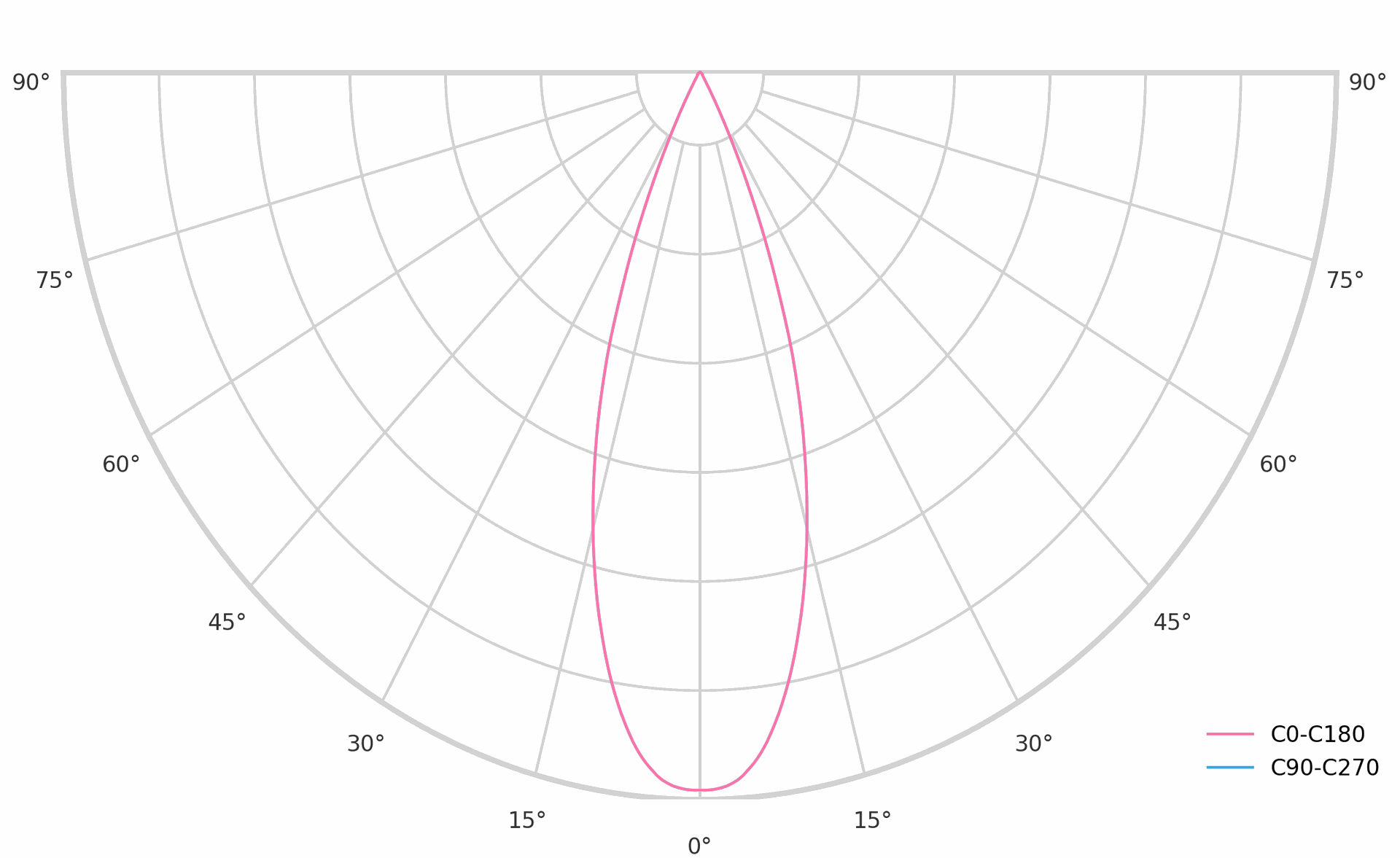

Dimmensions and light distribution
