DLR1

Office solutions · LED

DLR1-830-M

DLR1 is a surface-mounted LED luminaire with LED source with 30,000 hours lifetime. Available in 3 sizes, color temperatures 3000K/4000K with CRI 80+. Plastic body with PC diffuser for uniform light. Ideal for corridors and residential spaces. 3-year warranty.

Technical specifications

Light Source
LED
CCT
3000
CRI
80
Connected load
18.00 W
Lumen output
1,890.00 lm
Efficiency
105.0 lm/W
LED
220 - 240V AC, 50/60Hz
44/20
II
ce
80

Downloads

↓ Datasheet PDF → ↓ LDT file LDT → ↓ CE PDF → ↓ Manual PDF →

Technical data

Mains voltage

220 - 240V AC, 50/60Hz

Connection method

Plug-in terminal

IP protection

44/20

Protection class

II

Ambient temperature

0 to +25 °C

Light Source

LED

CCT

3000

CRI

80

Connected load

18.00 W

Lumen output

1,890.00 lm

Efficiency

105.0 lm/W

Optical system

Diffuser

Optical part material

PC

Housing material

Plastic

Height

21.50 mm

Diameter

300.00 mm

Weight

0.70 kg

Service lifetime (L70 B50)

30 000 h

Warranty

3 years

Illuminance Calculator

1890 lm · 18.0 W
Enter room width (1-100 m)
Enter room length (1-100 m)
Enter room height (2-20 m)
Must be less than or equal to room height
Select a room type
Select room cleanliness

Dimmensions and light distribution

DLR1
Dimmensions
DLR1

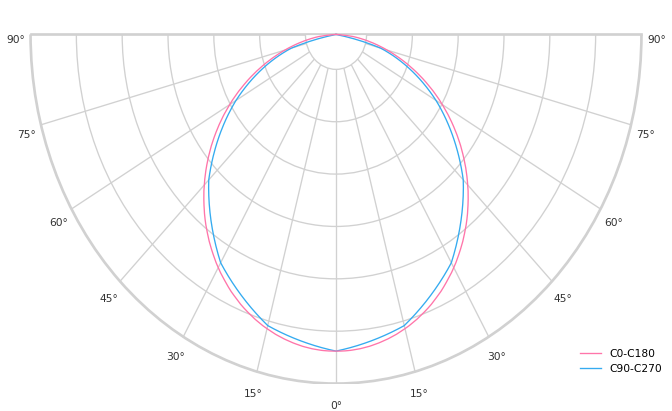

Polar curve
