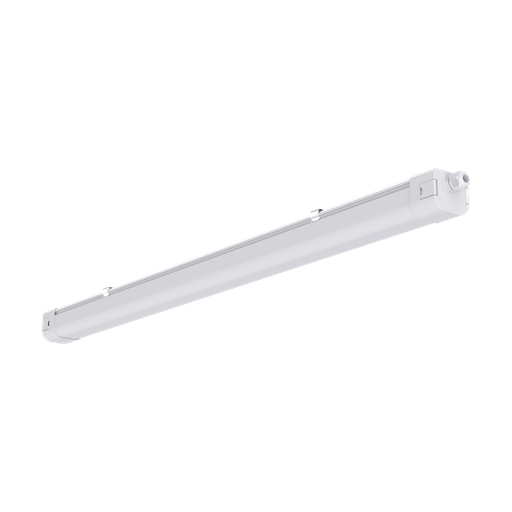

IP65 easy

Industrial solutions · LED

IP65-600-S-840-1

Led linear luminaire for dusty environments with IP65 protection and 5 year warranty.

Technical specifications

Light Source
LED
Switching type
Non-dimmable
Connected load
19.40 W
Lumen output
2,657.00 lm
Efficiency
137.0 lm/W
LED
220 - 240V AC, 50/60Hz
65
I
ce
True

Downloads

↓ Datasheet PDF → ↓ LDT file LDT → ↓ CE PDF → ↓ Manual PDF →

Technical data

Mains voltage

220 - 240V AC, 50/60Hz

Connection method

Plug-in terminal

Switching type

Non-dimmable

IP protection

65

Protection class

I

Impact rating

IK 08

Ambient temperature

-20 to +40 °C

Light Source

LED

Connected load

19.40 W

Lumen output

2,657.00 lm

Efficiency

137.0 lm/W

Inrush current

13 A

Inrush time

220 μs

Optical system

Diffuser

Optical part material

PC

Housing material

Plastic

Width

74.00 mm

Height

64.00 mm

Length

600.00 mm

Weight

0.93 kg

Service lifetime (L80 B10)

50 000 h

Warranty

5 years

Illuminance Calculator

2657 lm · 19.4 W · Non-dimmable
Enter room width (1-100 m)
Enter room length (1-100 m)
Enter room height (2-20 m)
Must be less than or equal to room height
Select a room type
Select room cleanliness

Dimmensions and light distribution

IP65 easy
Dimmensions
IP65 easy

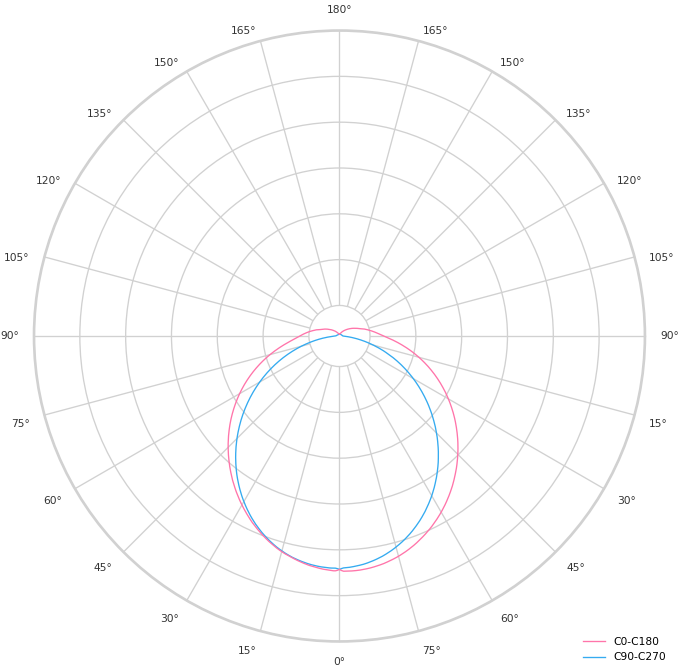

Polar curve
