Office solutions · LED
FLITSUS-1000-S-940-2-90-WH

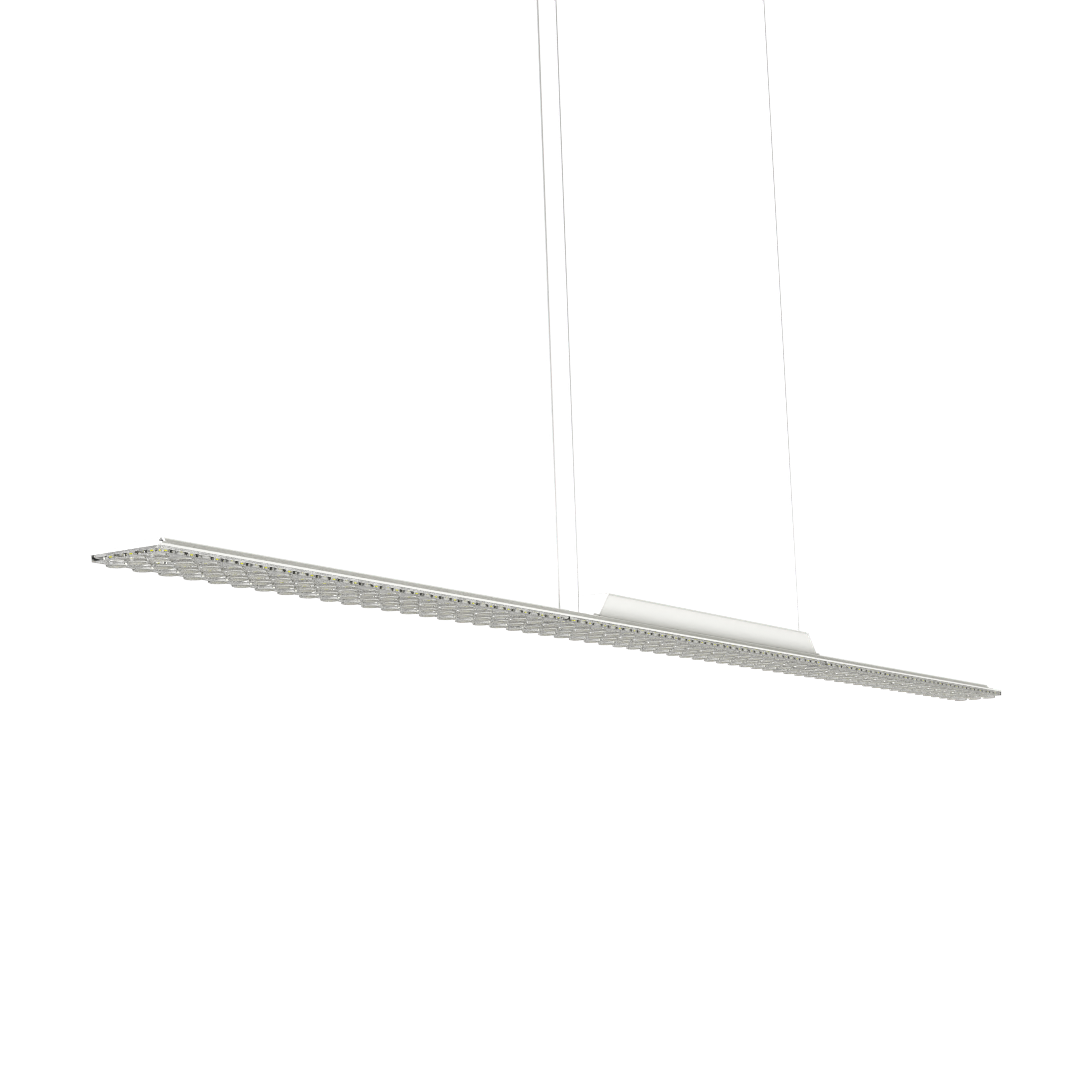

Flit Suspended is a suspended linear LED luminaire with LED source with 60,000 hours lifetime and high efficiency up to 165 lm/W. Available in 2 lengths and 4 power options, wide range of color temperatures (3000K-6500K) with CRI 80+/90+. Five light distribution types and DALI control option available. Ideal for commercial premises, offices, warehouses and production halls with demanding visual tasks. 5-year warranty.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 90
- Switching type
- DALI
- Connected load
- 19.23 W
- Lumen output
- 2,584.00 lm
- Efficiency
- 134.4 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
DALI
IP protection
20
Protection class
I
Ambient temperature
0 to +30 °C
Light Source
LED
CCT
4000k
CRI
90
Connected load
19.23 W
Lumen output
2,584.00 lm
Efficiency
134.4 lm/W
Ripple
1 %
DALI address
1
Inrush current
6 A
Inrush time
800 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
62.00 mm
Height
57.00 mm
Length
1,000.00 mm
Weight
1.40 kg
Service lifetime (L80 B10)
60 000 h
Warranty
5 years
Illuminance Calculator
Housing colors

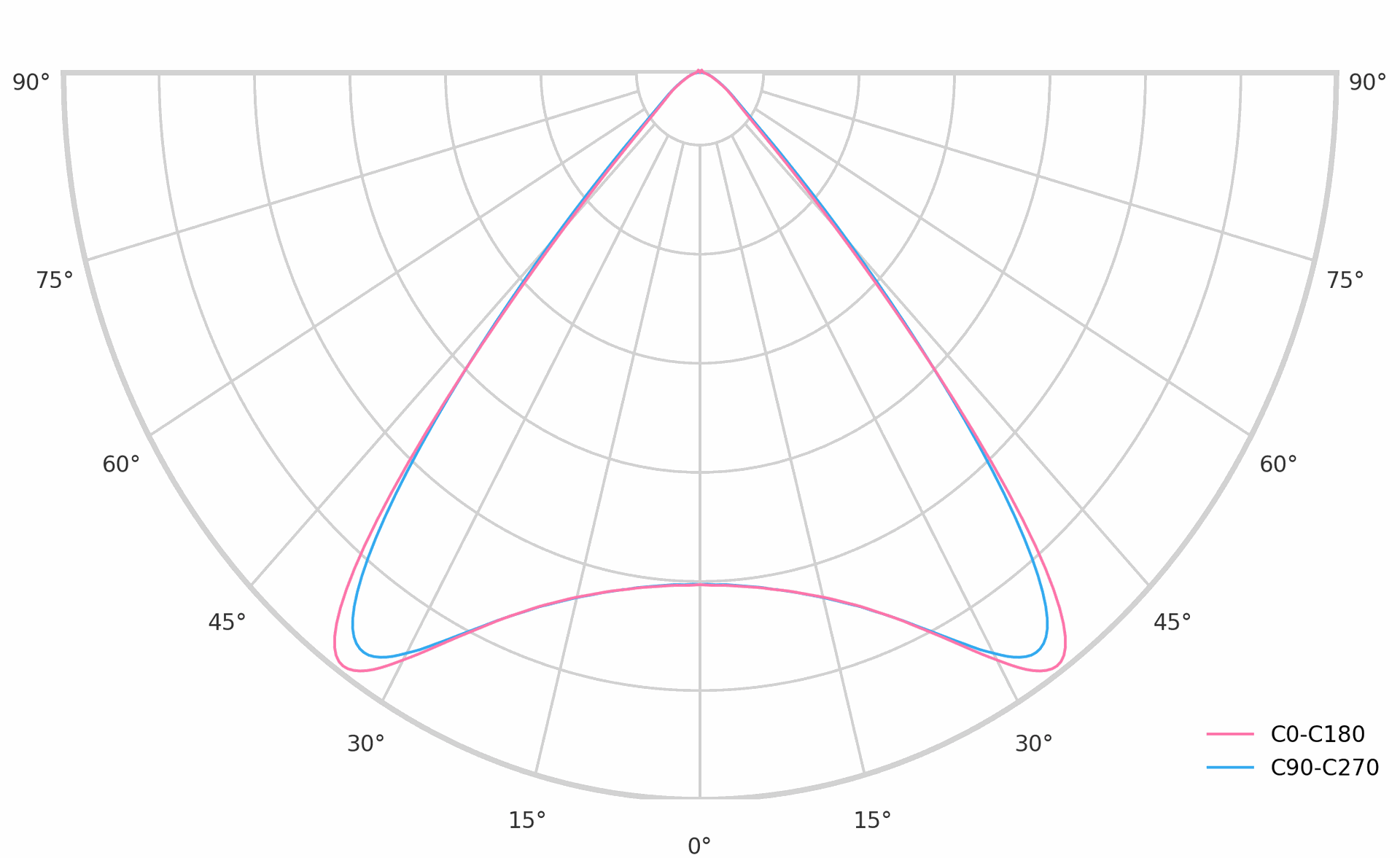

Dimmensions and light distribution
