Office solutions · LED
HEXSUR-600-S-940-2-WH

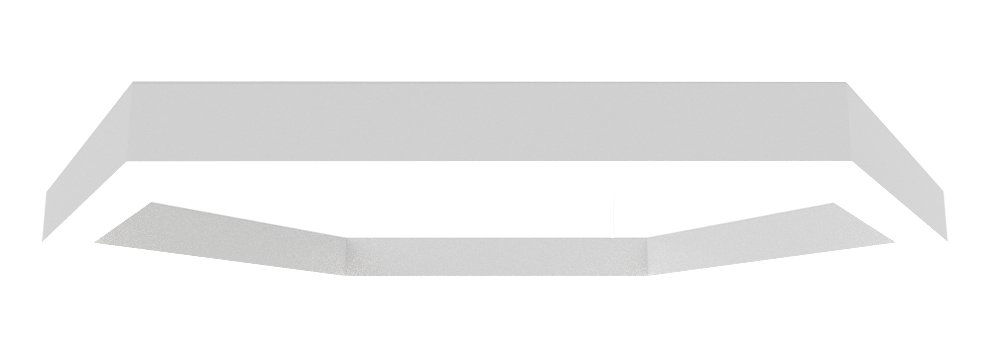

The design of the luminaire returns to the power of the basic geometric shapes of the hexagon. By combining several diameters, it is possible to achieve different configurations and lighting scenarios with a great visual impact on the interior.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 90
- Switching type
- DALI
- Connected load
- 16.32 W
- Lumen output
- 1,496.04 lm
- Efficiency
- 91.7 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
DALI
IP protection
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
90
Connected load
16.32 W
Lumen output
1,496.04 lm
Efficiency
91.7 lm/W
Ripple
1 %
DALI address
1
Standby power
0.50 W
Inrush current
18 A
Inrush time
180 μs
Optical system
Diffuser
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
600.00 mm
Height
70.00 mm
Length
600.00 mm
Weight
5.40 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing colors

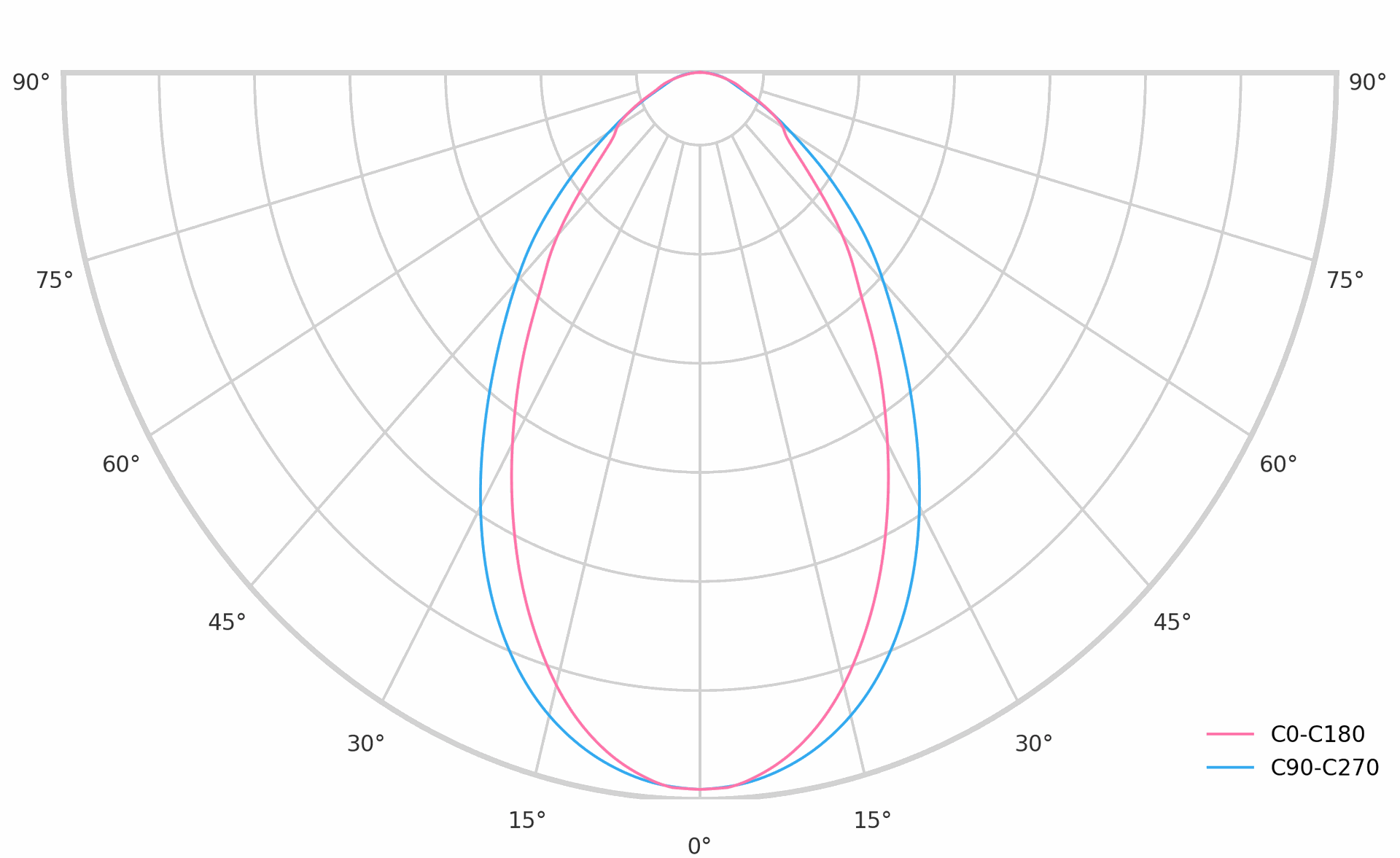

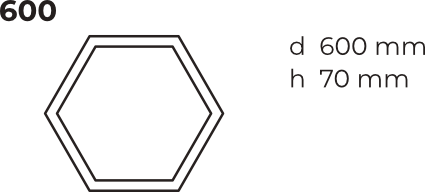

Dimmensions and light distribution
