Hexagon Surface

Office solutions · LED

HEXSUR-1200-M-830-1-BL

The design of the luminaire returns to the power of the basic geometric shapes of the hexagon. By combining several diameters, it is possible to achieve different configurations and lighting scenarios with a great visual impact on the interior.

Technical specifications

Light Source
LED
CCT
3000k
CRI
80
Switching type
Non-dimmable
Connected load
52.60 W
Lumen output
5,369.11 lm
Efficiency
102.1 lm/W
LED
220 - 240V AC, 50/60Hz
20
I
ce
3000k
80

Downloads

↓ Datasheet PDF → ↓ LDT file LDT → ↓ CE PDF → ↓ Manual PDF →

Technical data

Mains voltage

220 - 240V AC, 50/60Hz

Connection method

Plug-in terminal

Switching type

Non-dimmable

IP protection

20

Protection class

I

Ambient temperature

0 to +25 °C

Light Source

LED

CCT

3000k

CRI

80

Connected load

52.60 W

Lumen output

5,369.11 lm

Efficiency

102.1 lm/W

Ripple

1 %

Inrush current

37 A

Inrush time

188 μs

Optical system

Diffuser

Optical part material

PMMA

Housing material

Aluminium

Surface finish

Powder coated

Width

1,200.00 mm

Height

70.00 mm

Length

1,200.00 mm

Weight

6.40 kg

Service lifetime (L80 B10)

50 000 h

Warranty

5 years

Illuminance Calculator

5369 lm · 52.6 W · Non-dimmable
Enter room width (1-100 m)
Enter room length (1-100 m)
Enter room height (2-20 m)
Must be less than or equal to room height
Select a room type
Select room cleanliness

Housing colors

Black Black RAL 9005
White White RAL 9003

Dimmensions and light distribution

Hexagon Surface

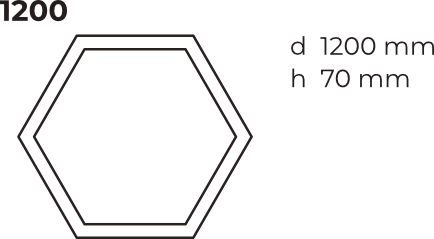

Dimmensions
Hexagon Surface

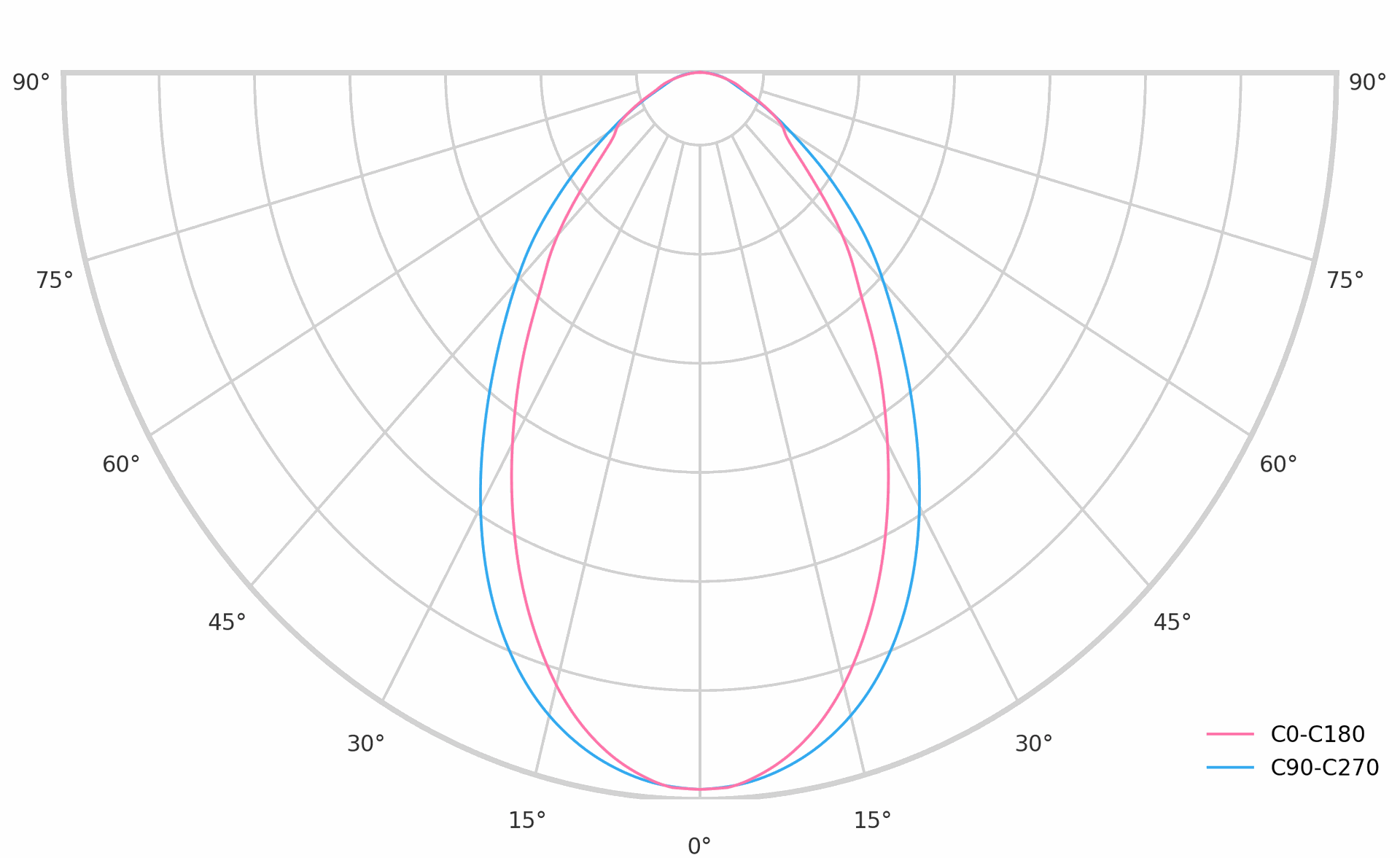

Polar curve
