Office solutions · LED
HEXSUS-1800-L-930-2-BL-

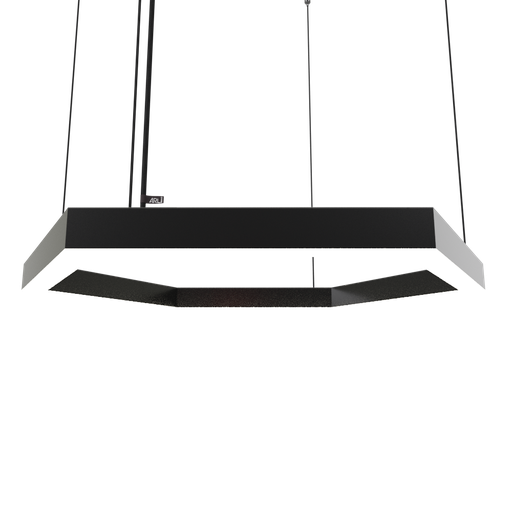

The design of the luminaire returns to the power of the basic geometric shapes of the hexagon. By combining several diameters, it is possible to achieve different configurations and lighting scenarios with a great visual impact on the interior.
Technical specifications
- Light Source
- LED
- CCT
- 3000k
- CRI
- 90
- Switching type
- DALI
- Connected load
- 77.57 W
- Lumen output
- 6,377.81 lm
- Efficiency
- 82.2 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
DALI
IP protection
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
90
Connected load
77.57 W
Lumen output
6,377.81 lm
Efficiency
82.2 lm/W
Ripple
1 %
DALI address
1
Standby power
0.50 W
Inrush current
53 A
Optical system
Diffuser
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
1,800.00 mm
Height
70.00 mm
Length
1,800.00 mm
Weight
10.00 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing colors
Cable colors

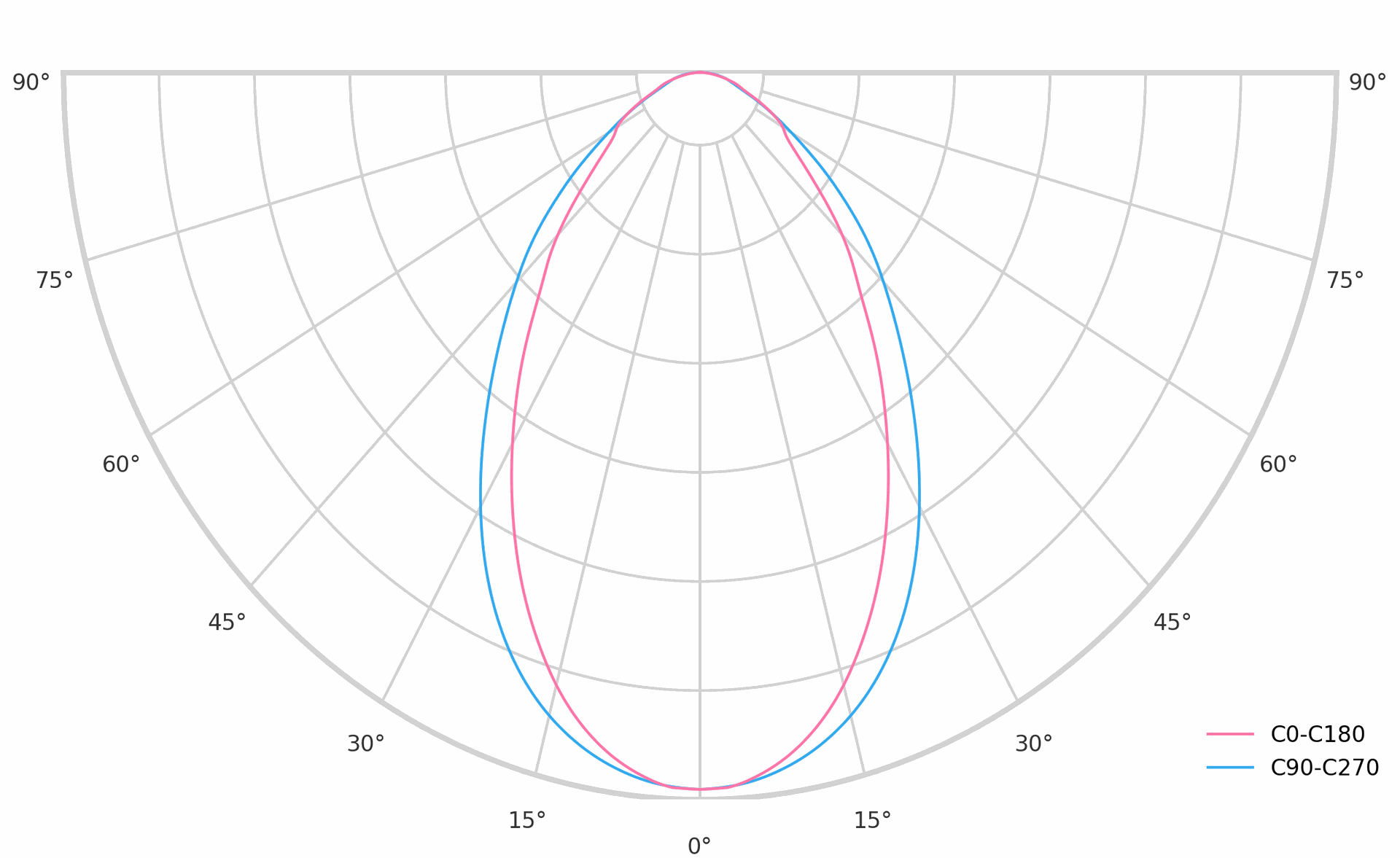

Dimmensions and light distribution
