Basic Surface

Office solutions · LED

BASICSUR-1500-840-2-PD-BL

Basic linear led luminaire for offices, meeting rooms, corridors and households.

Technical specifications

Light Source
LED
CCT
4000k
CRI
80
Switching type
DALI
Connected load
31.62 W
Lumen output
3,895.60 lm
Efficiency
123.2 lm/W
LED
220 - 240V AC, 50/60Hz
20
I
ce
4000k
80

Downloads

↓ Datasheet PDF → ↓ LDT file LDT → ↓ CE PDF → ↓ Manual PDF →

Technical data

Mains voltage

220 - 240V AC, 50/60Hz

Connection method

Plug-in terminal

Switching type

DALI

IP protection

20

Protection class

I

Ambient temperature

0 to +25 °C

Light Source

LED

CCT

4000k

CRI

80

Connected load

31.62 W

Lumen output

3,895.60 lm

Efficiency

123.2 lm/W

Optical system

Diffuser

Optical part material

PC

Housing material

Aluminium

Surface finish

Powder coated

Width

50.00 mm

Height

70.00 mm

Length

1,500.00 mm

Weight

2.00 kg

Service lifetime (L80 B30)

50 000 h

Warranty

3 years

Illuminance Calculator

3895 lm · 31.62 W · DALI
Enter room width (1-100 m)
Enter room length (1-100 m)
Enter room height (2-20 m)
Must be less than or equal to room height
Select a room type
Select room cleanliness

Housing colors

Black Black RAL 9005
White White RAL 9003

Dimmensions and light distribution

Basic Surface
Dimmensions
Basic Surface

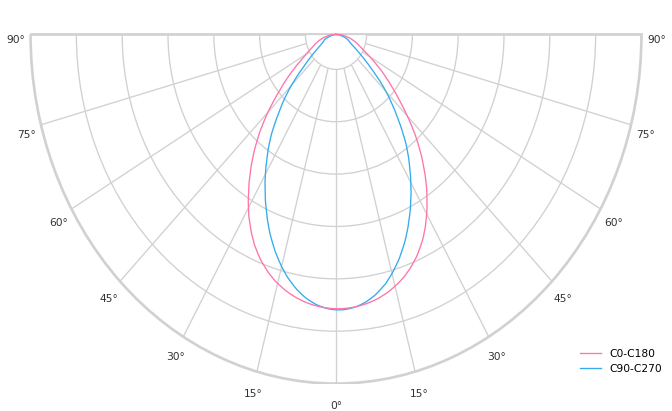

Polar curve
