IP65-1500-S-840-1
Technical specifications
Light Source
LED
Switching type
Non-dimmable
Connected load
42.80 W
Lumen output
5,835.00 lm
Efficiency
136.3 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
Non-dimmable
IP protection
65
Protection class
I
Impact rating
IK 08
Ambient temperature
-20 to +40 °C
Light Source
LED
Connected load
42.80 W
Lumen output
5,835.00 lm
Efficiency
136.3 lm/W
Inrush current
24 A
Inrush time
220 μs
Optical system
Diffuser
Optical part material
PC
Housing material
Plastic
Width
74.00 mm
Height
64.00 mm
Length
1,502.00 mm
Weight
1.70 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator

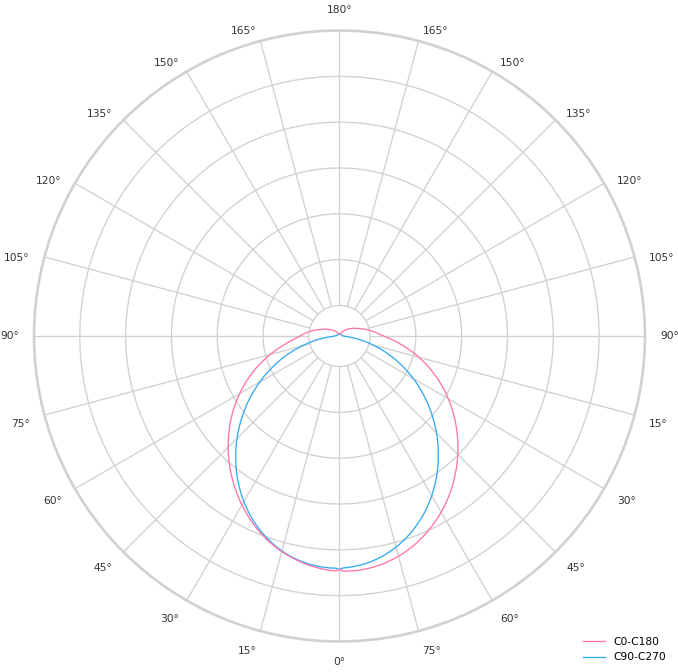

Dimmensions and light distribution
