Office solutions · LED
PRIME-4-S-840-1-D-BL

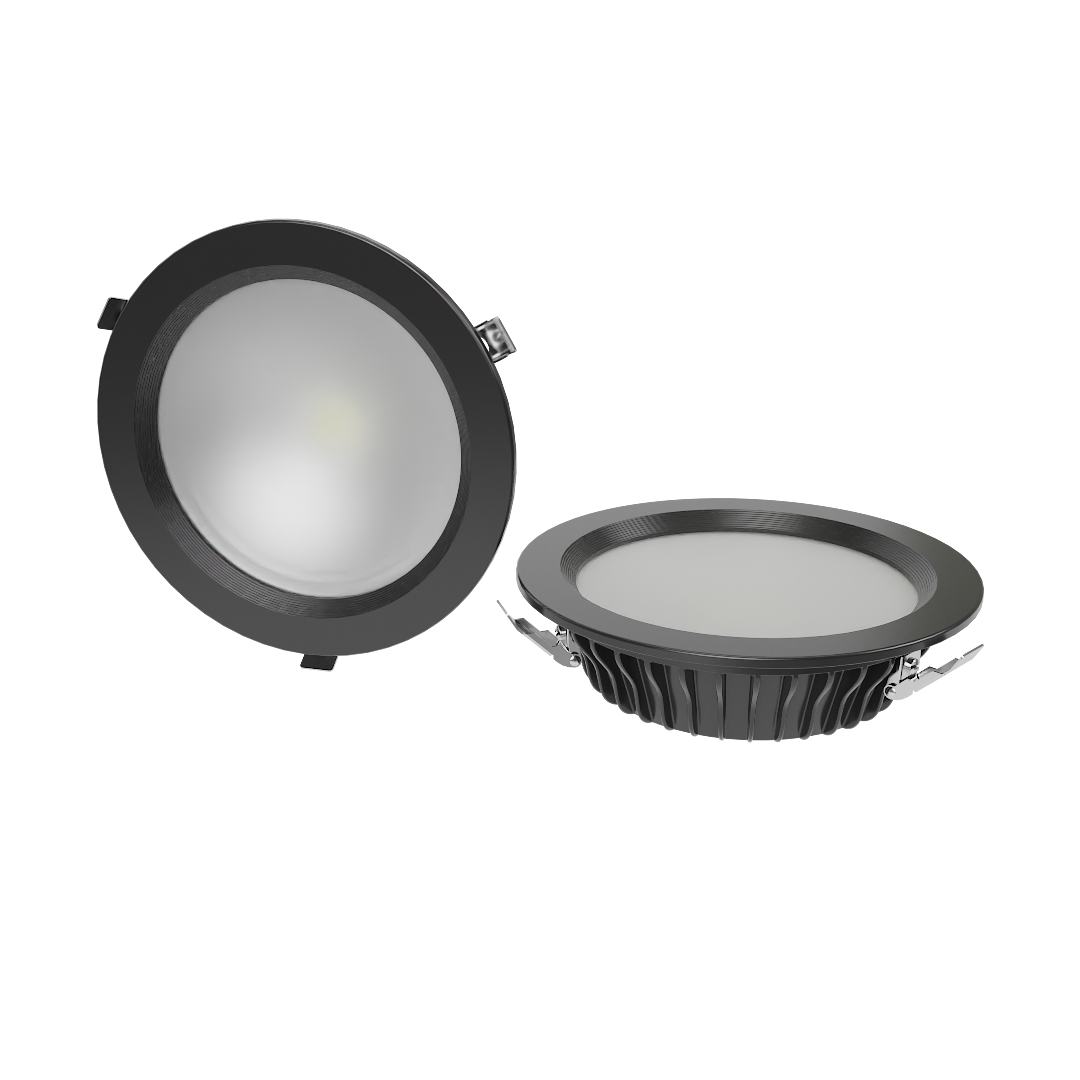

Prime is a recessed LED downlight with aluminum reflector and LED source with 50,000 hours lifetime. Available in 3 sizes and 3 power options, color temperatures 3000K/4000K with CRI 80+. Three light distribution types (Clear, Diffuse, Partly diffuse) with separate LED driver and DALI control option available. Ideal for offices, commercial spaces and residential buildings. 5-year warranty.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 80
- Switching type
- Non-dimmable
- Connected load
- 12.60 W
- Lumen output
- 1,575.00 lm
- Efficiency
- 125.0 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
Non-dimmable
IP protection
44/20
Protection class
II
Ambient temperature
0 to +30 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
12.60 W
Lumen output
1,575.00 lm
Efficiency
125.0 lm/W
Optical system
Reflector
Optical part material
Hardened glass
Housing material
Die-cast aluminium
Surface finish
Powder coated
Height
75.00 mm
Diameter
145.00 mm
Weight
0.60 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing colors

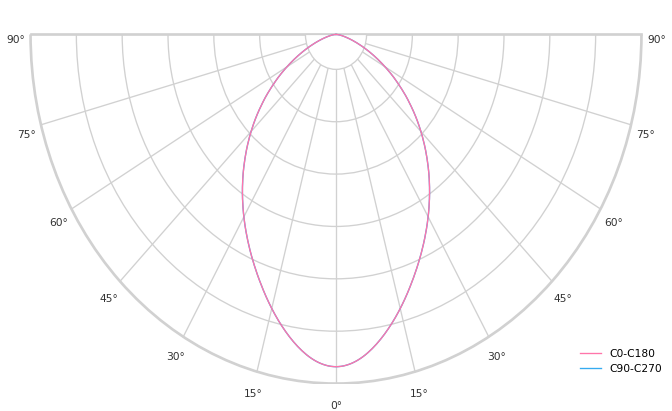

Dimmensions and light distribution
