Office solutions · LED
LINESUS2258-M-940-2-BL-DI-

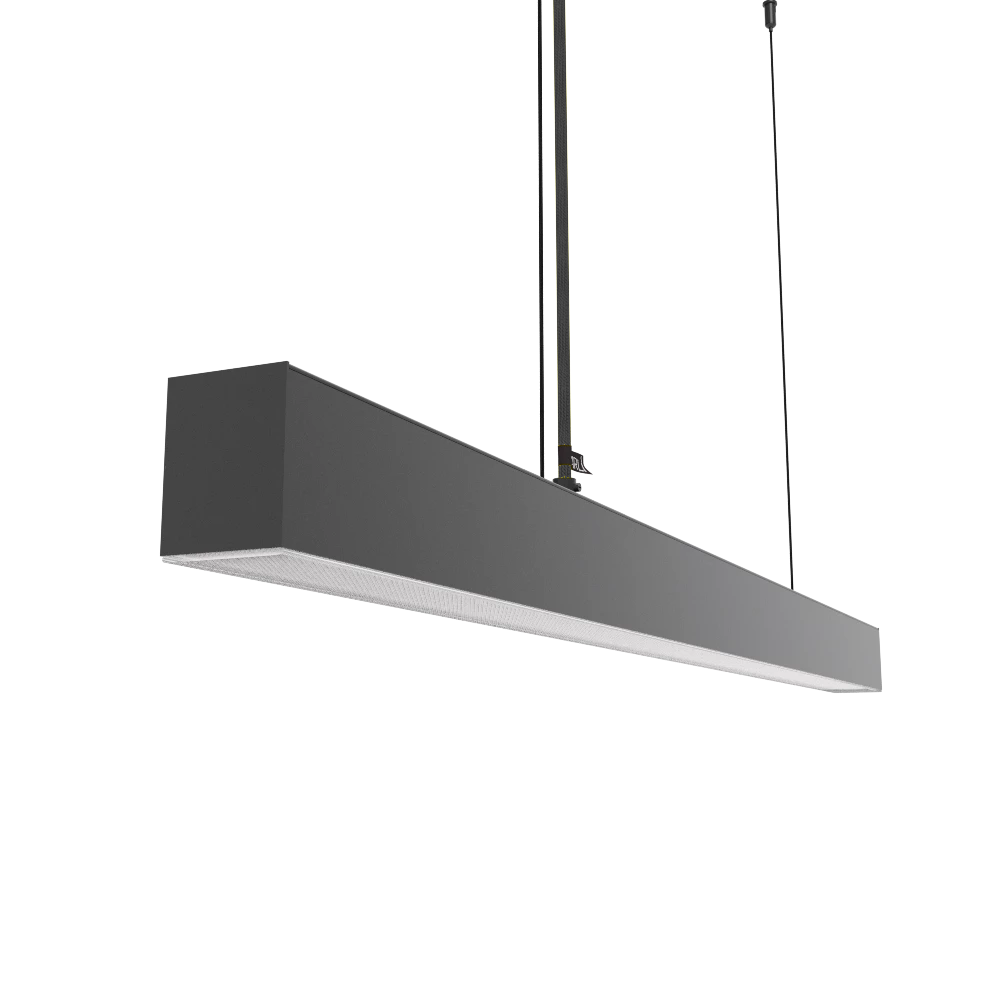

LINE Suspended is a pendant linear LED luminaire with high-quality LED source with 50,000 hours lifetime and PMMA diffuser. Available in 5 sizes (572-2820mm), color temperatures 3000K/4000K with CRI 80+/90+. Direct and indirect lighting options with DALI control available. Wide range of cable colors. Ideal for offices and commercial spaces. 5-year warranty.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 90
- Switching type
- DALI
- Connected load
- 46.20 W
- Lumen output
- 3,905.03 lm
- Efficiency
- 84.5 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
DALI
IP protection
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
90
Connected load
46.20 W
Lumen output
3,905.03 lm
Efficiency
84.5 lm/W
Ripple
1 %
DALI address
1
Standby power
0.50 W
Inrush current
18 A
Inrush time
180 μs
Optical system
Diffuser
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
50.00 mm
Height
70.00 mm
Length
2,258.00 mm
Weight
5.50 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing colors
Cable colors

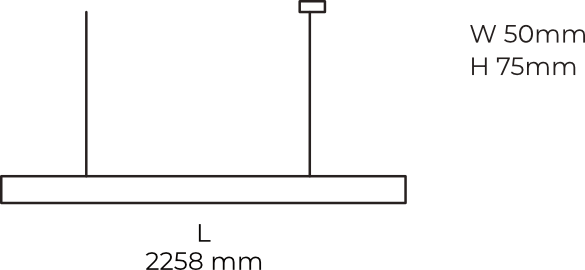

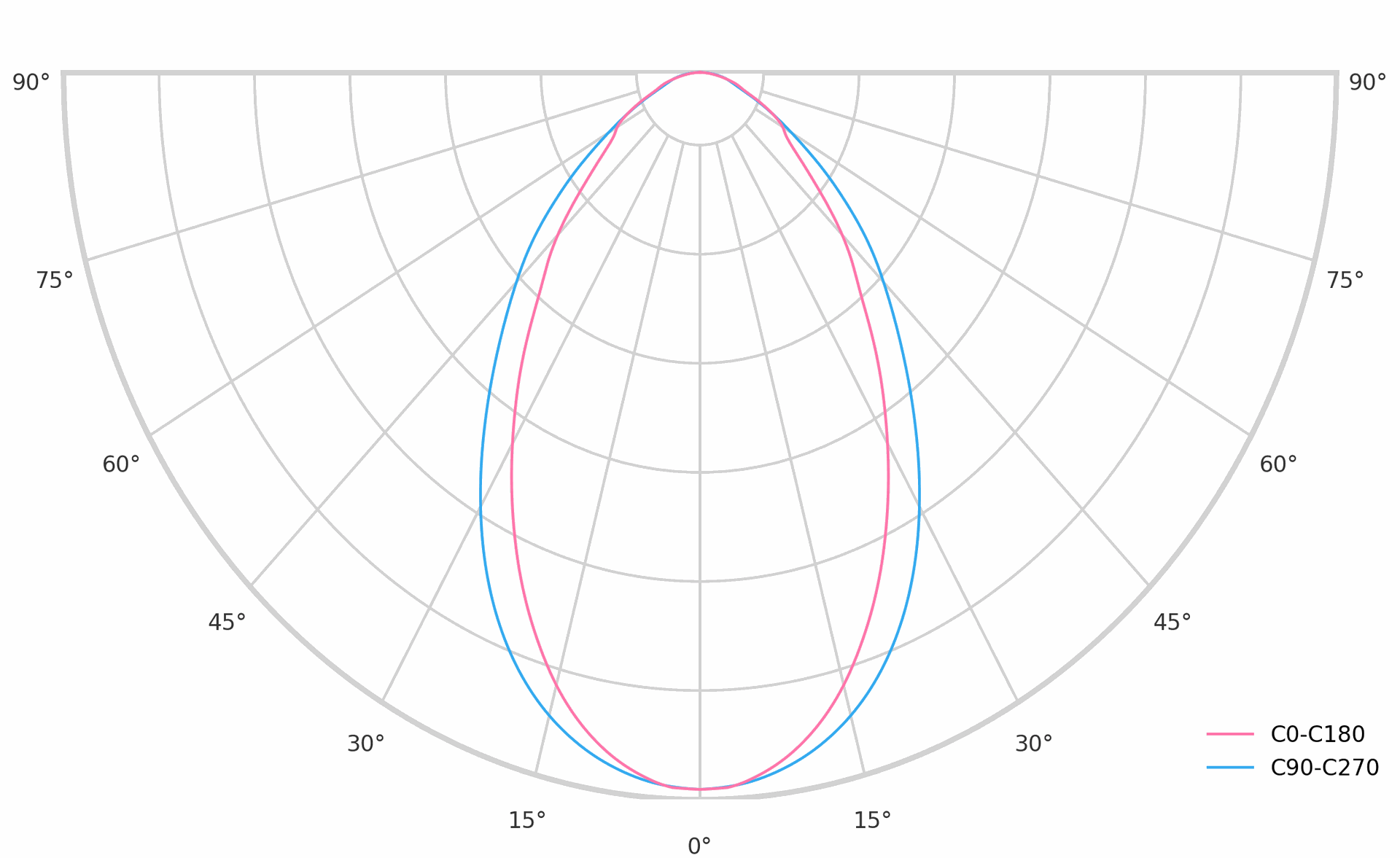

Dimmensions and light distribution
