Geminy

Office solutions · LED

GEMINYL-830-1-BL-

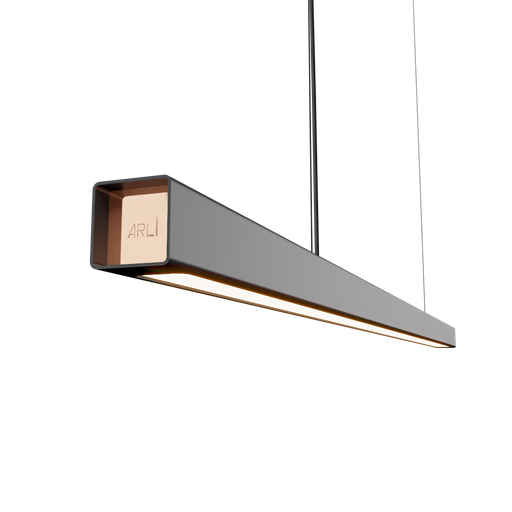

Geminy linear lamp is designed to create smaller atmospheres within larger spaces. The design features elegant lines and subtle details, along with copper details that complement the structure of the lamp and provide a rich material contrast to powder-coated parts, creating a modern and functional light for any space.

Technical specifications

Light Source
LED
CCT
3000k
CRI
80
Switching type
Non-dimmable
Connected load
29.23 W
Lumen output
3,779.46 lm
Efficiency
129.3 lm/W
LED
220 - 240V AC, 50/60Hz
20
I
ce
3000k
80

Downloads

↓ Datasheet PDF → ↓ LDT file LDT → ↓ CE PDF → ↓ Manual PDF →

Technical data

Mains voltage

220 - 240V AC, 50/60Hz

Connection method

Plug-in terminal

Switching type

Non-dimmable

IP protection

20

Protection class

I

Ambient temperature

0 to +25 °C

Light Source

LED

CCT

3000k

CRI

80

Connected load

29.23 W

Lumen output

3,779.46 lm

Efficiency

129.3 lm/W

Ripple

1 %

Inrush current

17 A

Inrush time

162 μs

Optical system

Diffuser

Optical part material

PMMA

Housing material

Steel

Surface finish

Powder coated

Width

40.00 mm

Height

40.00 mm

Length

1,200.00 mm

Weight

4.00 kg

Service lifetime (L80 B10)

50 000 h

Warranty

5 years

Illuminance Calculator

3779 lm · 29.23 W · Non-dimmable
Enter room width (1-100 m)
Enter room length (1-100 m)
Enter room height (2-20 m)
Must be less than or equal to room height
Select a room type
Select room cleanliness

Housing colors

Black Black RAL 9005
White White RAL 9003

Cable colors

White White 0111
Black Black 0900
Gray Gray 8765
Brown Brown 7953
Red Red 3119
Blue Blue 4867
Light blue Light blue 4906
Cyan Cyan 5305
Orange Orange 2166
Purple Purple 4406
Pink Pink 3358
Green Green 5474
Dark green Dark green 5744
Yellow Yellow 1257
Red/white Red/white 3119z
Black/white Black/white 0900z
Cyan/white Cyan/white 5305z

Dimmensions and light distribution

Geminy
Dimmensions
Geminy

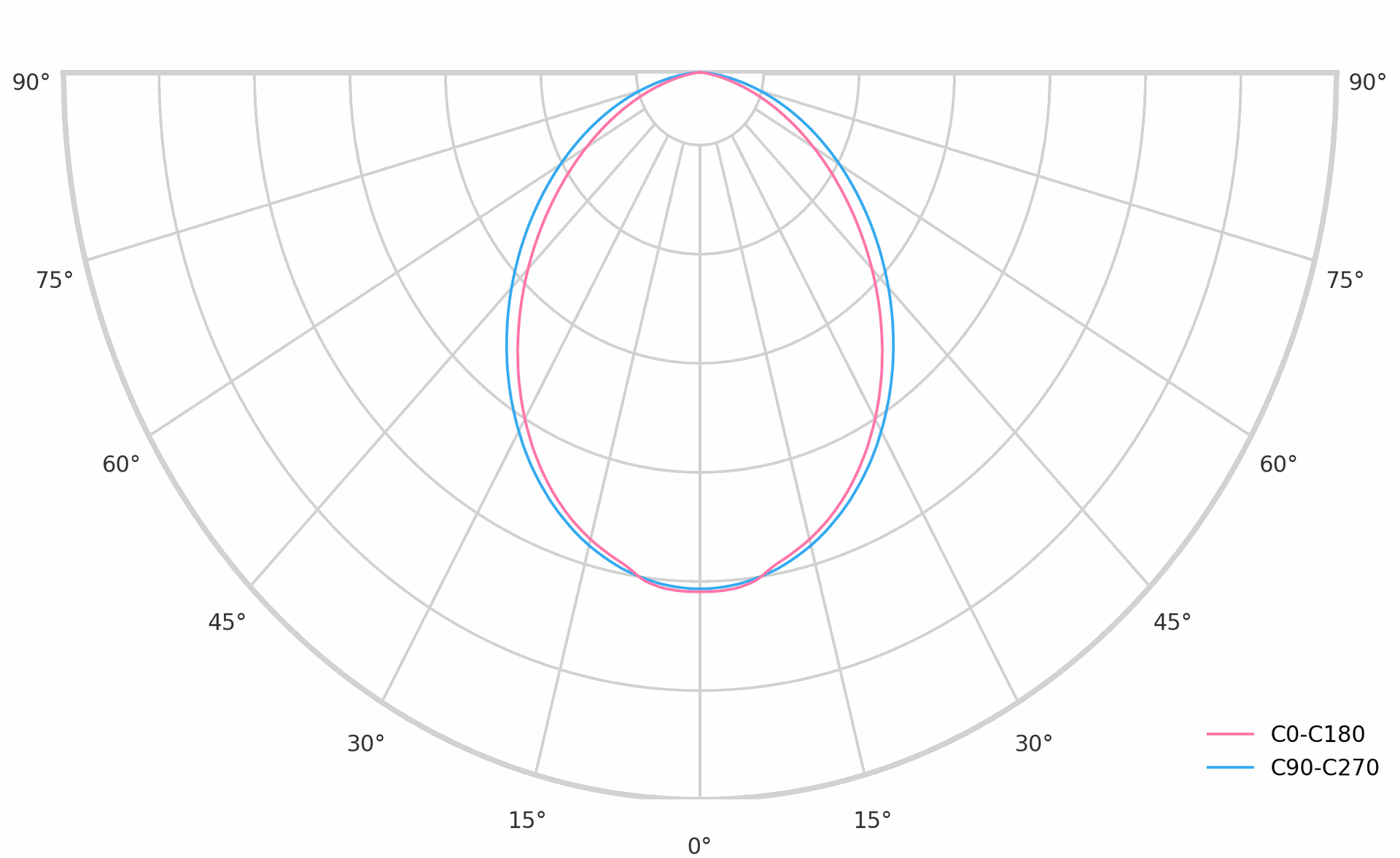

Polar curve
