Office solutions · LED
GEMINYM-930-2-WH-

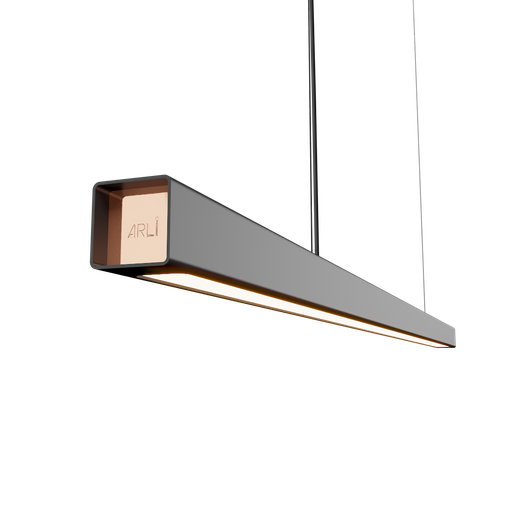

Geminy linear lamp is designed to create smaller atmospheres within larger spaces. The design features elegant lines and subtle details, along with copper details that complement the structure of the lamp and provide a rich material contrast to powder-coated parts, creating a modern and functional light for any space.
Technical specifications
- Light Source
- LED
- CCT
- 3000k
- CRI
- 90
- Switching type
- DALI
- Connected load
- 25.79 W
- Lumen output
- 2,641.41 lm
- Efficiency
- 102.4 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
DALI
IP protection
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
90
Connected load
25.79 W
Lumen output
2,641.41 lm
Efficiency
102.4 lm/W
Ripple
1 %
DALI address
1
Standby power
0.50 W
Inrush current
18 A
Inrush time
180 μs
Optical system
Diffuser
Optical part material
PMMA
Housing material
Steel
Surface finish
Powder coated
Width
40.00 mm
Height
40.00 mm
Length
1,200.00 mm
Weight
4.00 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing colors
Cable colors

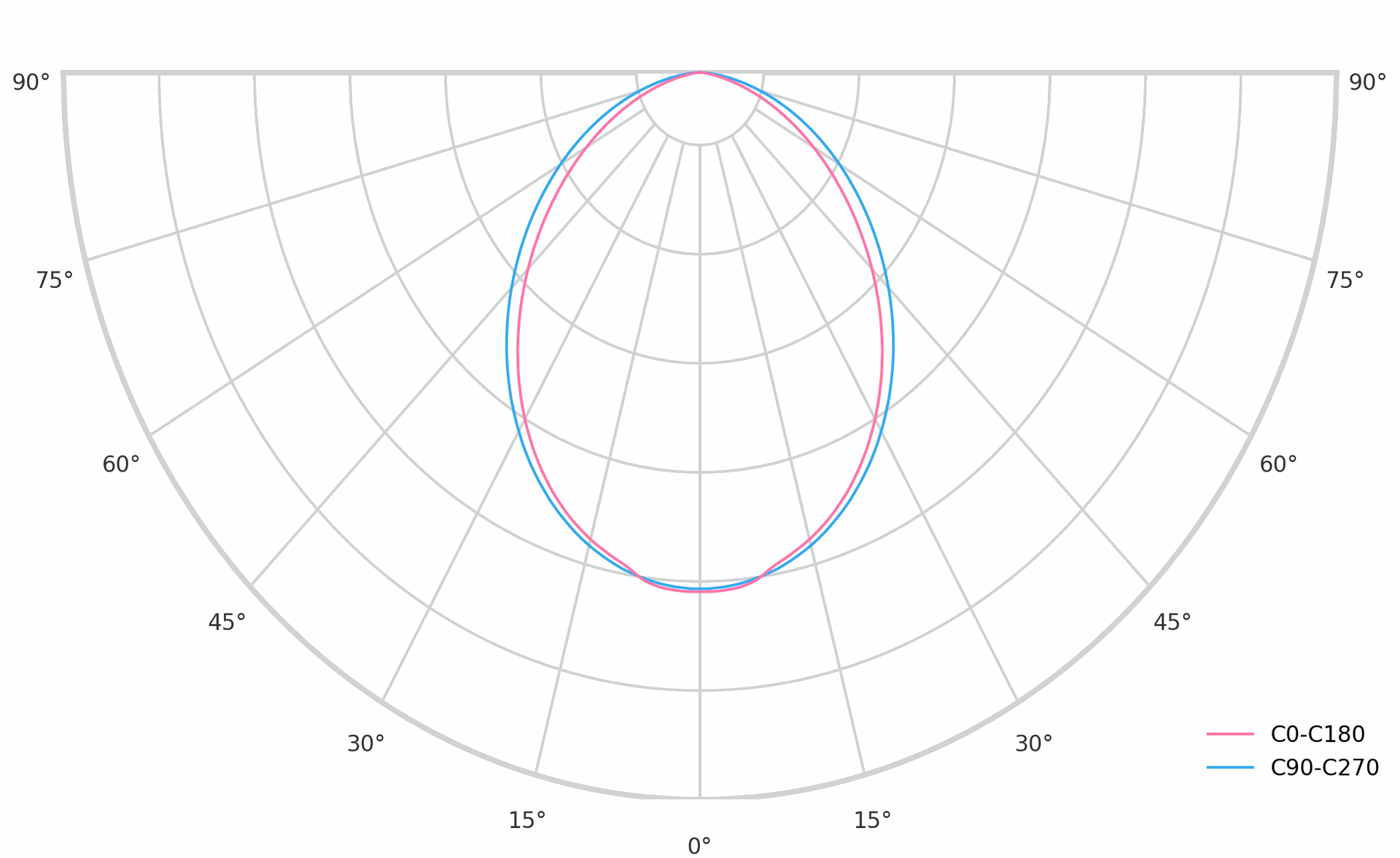

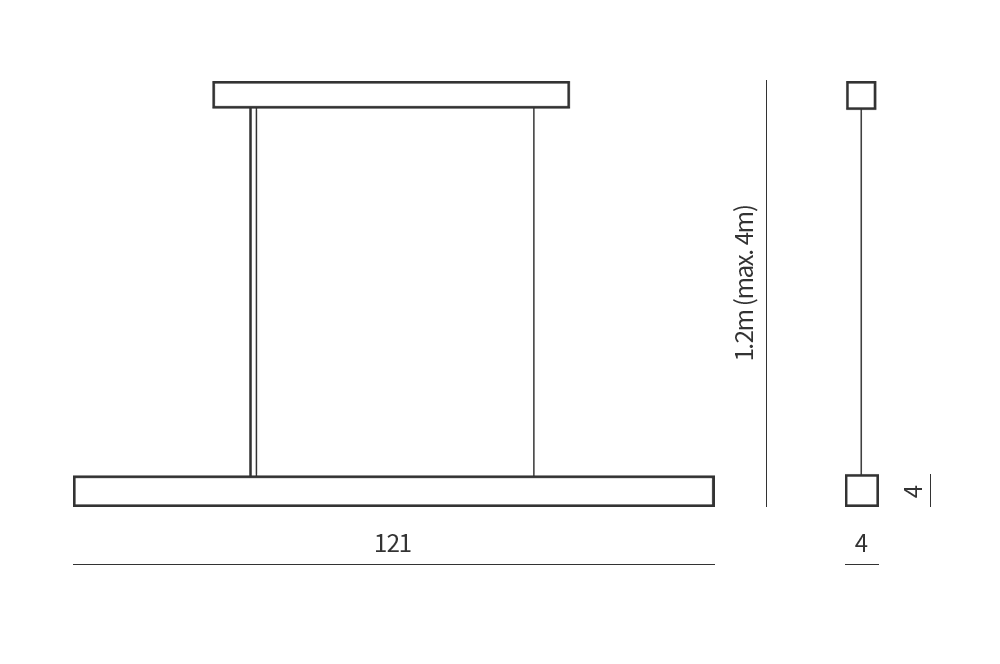

Dimmensions and light distribution
