Office solutions · LED
LINESUR-1696-M-940-1-WH

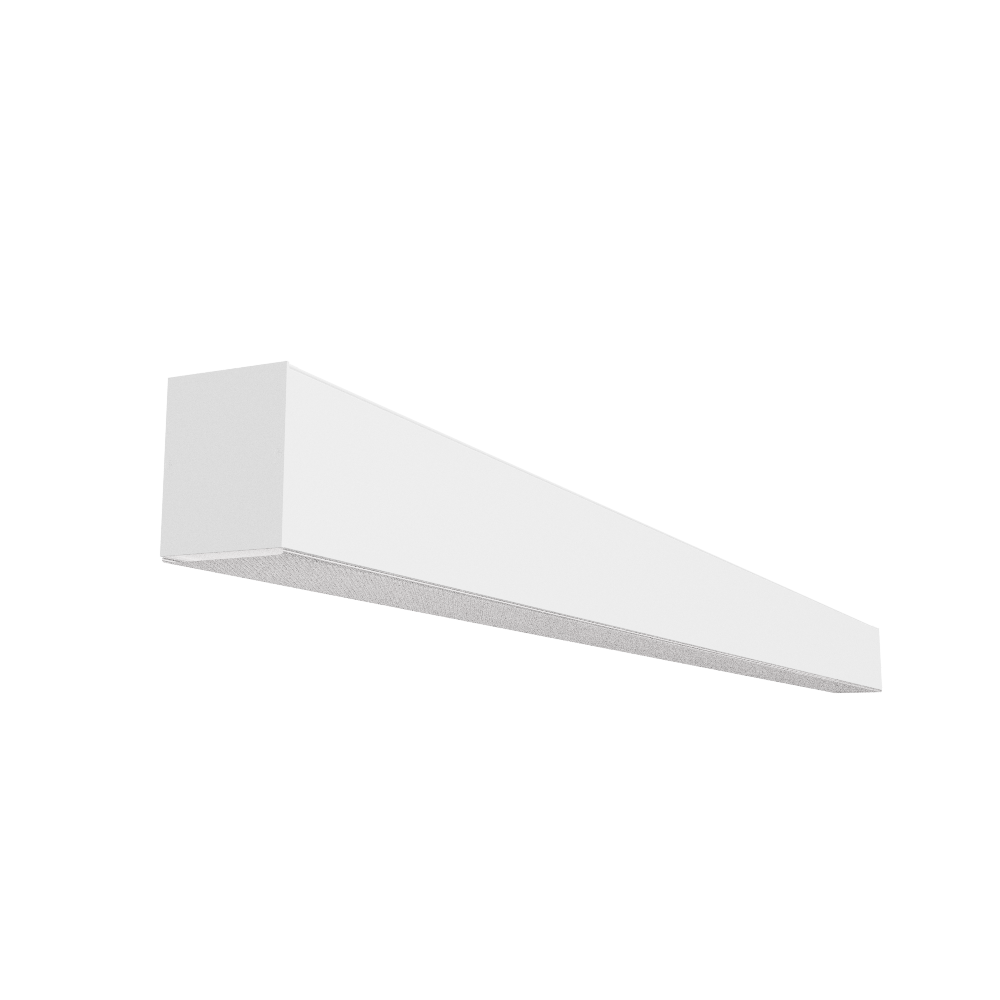

LINE Surface is an elegant linear LED luminaire with high-quality LED source with 50,000 hours lifetime and PMMA diffuser for uniform light. Available in 5 sizes (572-2820mm), color temperatures 3000K/4000K with CRI 80+/90+. DALI control option available. Ideal for offices and commercial spaces. 5-year warranty.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 90
- Switching type
- Non-dimmable
- Connected load
- 32.75 W
- Lumen output
- 2,928.77 lm
- Efficiency
- 89.4 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
Non-dimmable
IP protection
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
90
Connected load
32.75 W
Lumen output
2,928.77 lm
Efficiency
89.4 lm/W
Ripple
1 %
Inrush current
17 A
Inrush time
162 μs
Optical system
Diffuser
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
50.00 mm
Height
70.00 mm
Length
1,696.00 mm
Weight
4.00 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing colors

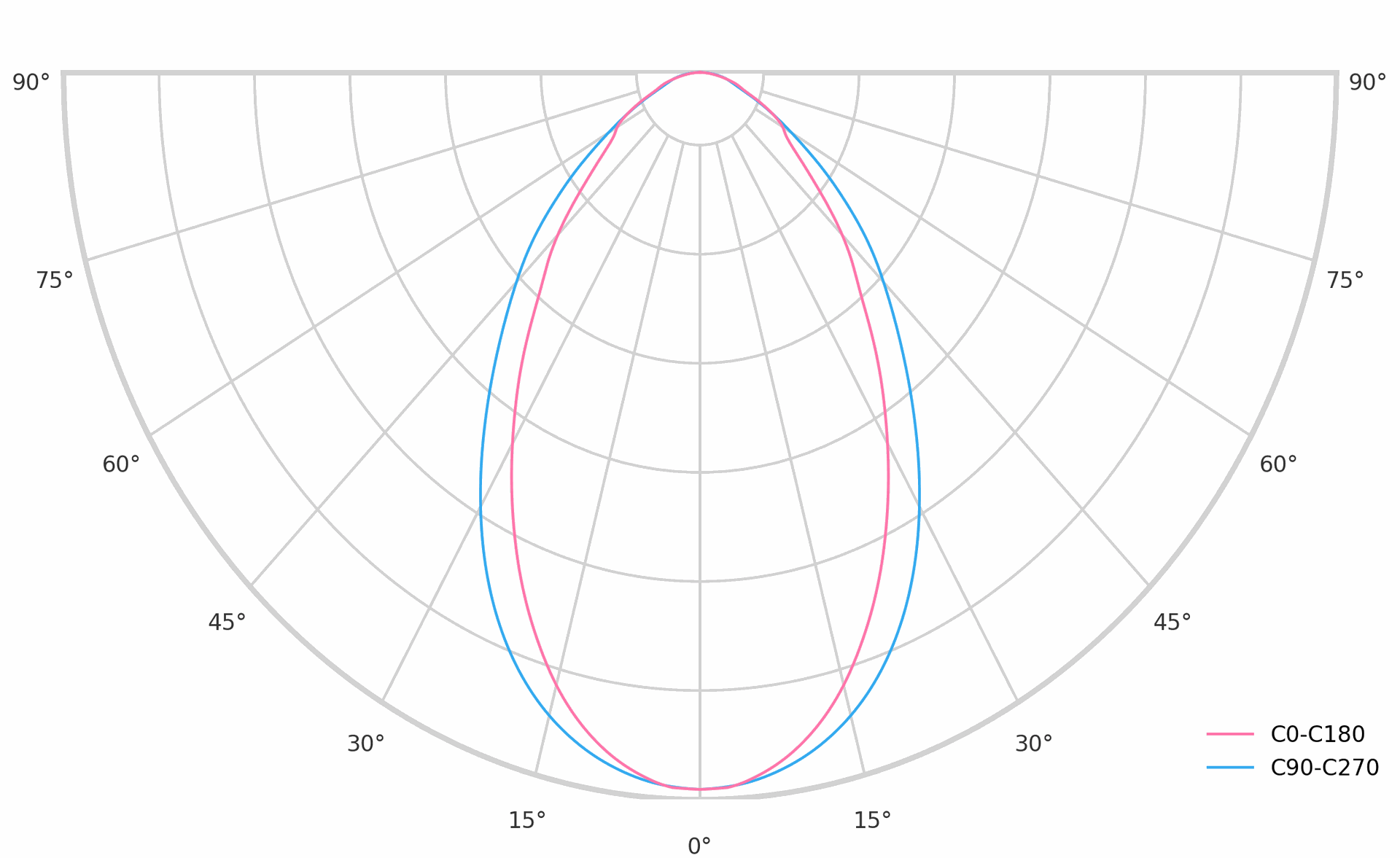

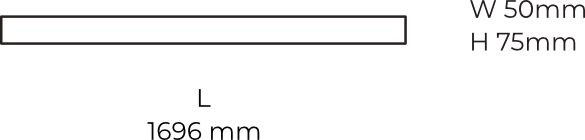

Dimmensions and light distribution
