Industrial solutions · LED

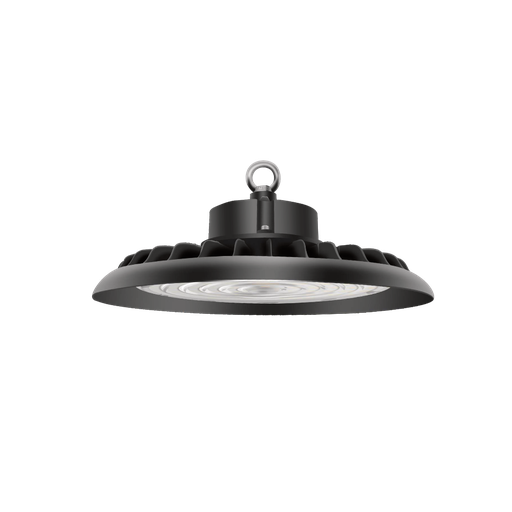

Cross-L-850-1-120
High-bay led light created with an emphasis on efficiency and easy installation. Suitable for installation in warehouses and production halls.
Technical specifications
- Light Source
- LED
- CCT
- 5000k
- CRI
- 80
- Switching type
- Non-dimmable
- Connected load
- 198.80 W
- Lumen output
- 30,795.00 lm
- Efficiency
- 154.9 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
Non-dimmable
IP protection
65
Protection class
I
Impact rating
IK 08
Ambient temperature
-25 to 30 °C
Light Source
LED
CCT
5000k
CRI
80
Connected load
198.80 W
Lumen output
30,795.00 lm
Efficiency
154.9 lm/W
Inrush current
100 A
Optical system
Lenses
Optical part material
PC
Housing material
Aluminium
Surface finish
Powder coated
Height
142.00 mm
Diameter
347.00 mm
Weight
3.70 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
30795 lm
· 198.8 W
· Non-dimmable
Dimmensions and light distribution
Dimmensions

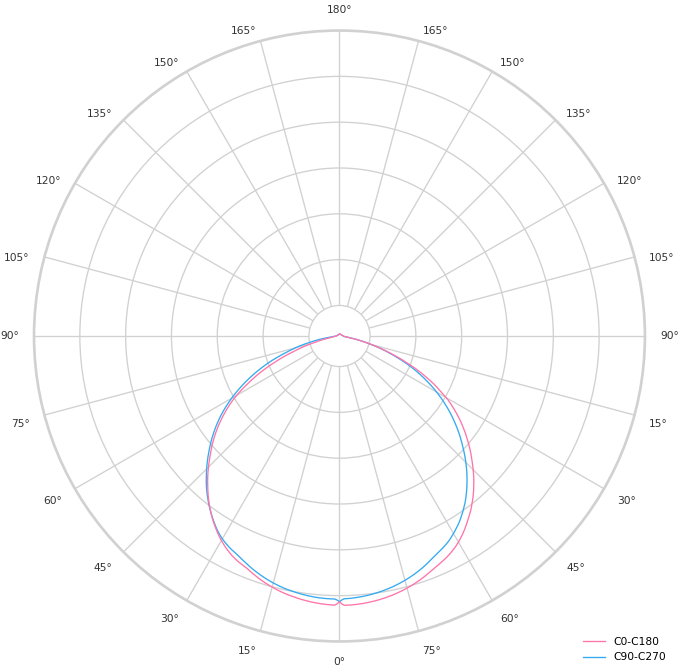

Polar curve
