Industrial solutions · LED

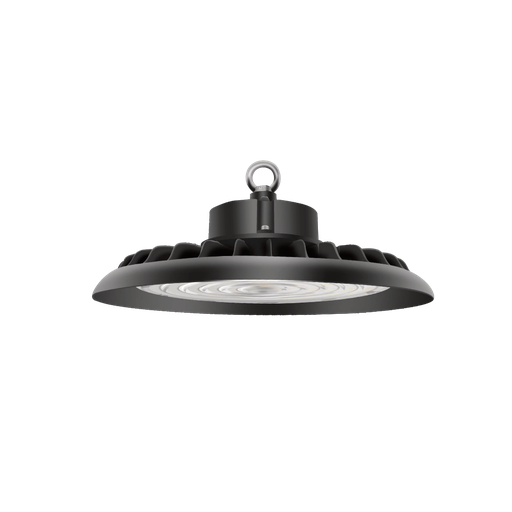

Cross-M-840-4-60
High-bay led light created with an emphasis on efficiency and easy installation. Suitable for installation in warehouses and production halls.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 80
- Switching type
- 1-10V
- Connected load
- 150.60 W
- Lumen output
- 23,197.00 lm
- Efficiency
- 154.0 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
1-10V
IP protection
65
Protection class
I
Impact rating
IK 08
Ambient temperature
-25 to 30 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
150.60 W
Lumen output
23,197.00 lm
Efficiency
154.0 lm/W
Inrush current
100 A
Optical system
Lenses
Optical part material
PC
Housing material
Aluminium
Surface finish
Powder coated
Height
139.00 mm
Diameter
299.00 mm
Weight
2.70 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
23197 lm
· 150.6 W
· 1-10V
Dimmensions and light distribution
Dimmensions

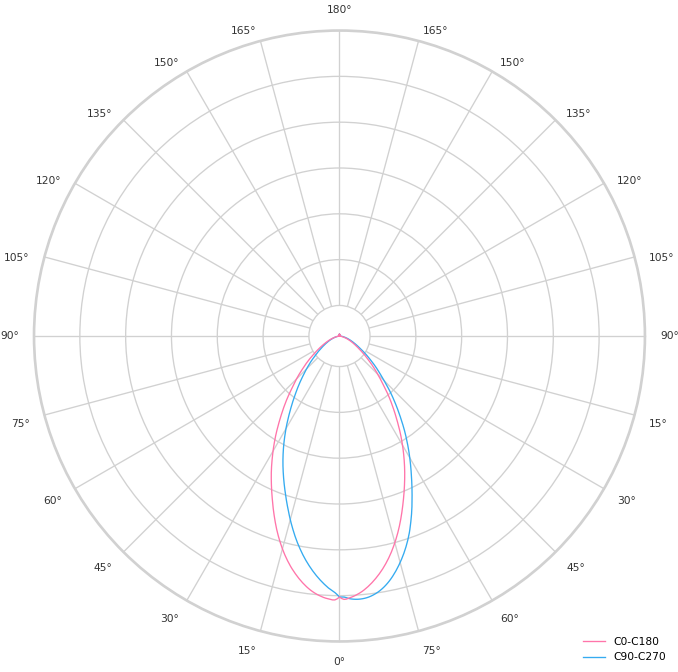

Polar curve
