Industrial solutions · LED
Cross-S-850-4-120
High-bay led light created with an emphasis on efficiency and easy installation. Suitable for installation in warehouses and production halls.
Technical specifications
- Light Source
- LED
- CCT
- 5000k
- CRI
- 80
- Switching type
- 1-10V
- Connected load
- 99.58 W
- Lumen output
- 15,365.00 lm
- Efficiency
- 154.3 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
1-10V
IP protection
65
Protection class
I
Impact rating
IK 08
Ambient temperature
-25 to 30 °C
Light Source
LED
CCT
5000k
CRI
80
Connected load
99.58 W
Lumen output
15,365.00 lm
Efficiency
154.3 lm/W
Inrush current
80 A
Optical system
Lenses
Optical part material
PC
Housing material
Aluminium
Surface finish
Powder coated
Height
139.00 mm
Diameter
258.00 mm
Weight
2.00 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
15365 lm
· 99.58 W
· 1-10V
Dimmensions and light distribution
Dimmensions

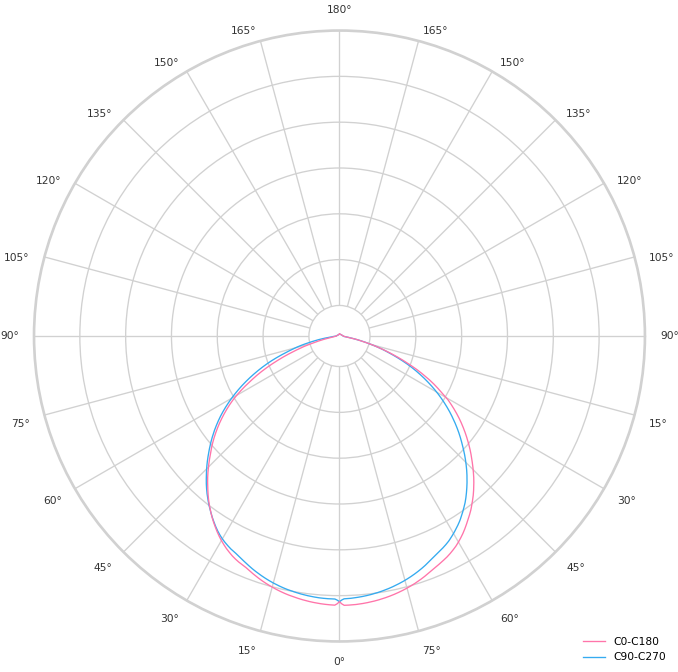

Polar curve
