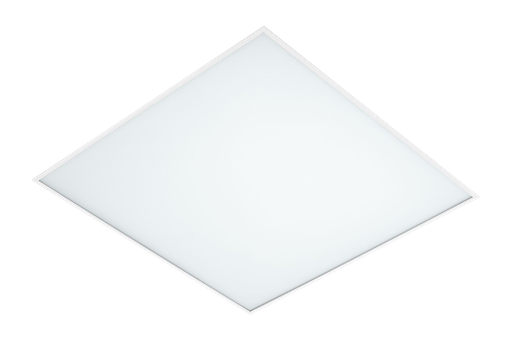

SQEA-S-840-2

Technical specifications

Light Source

LED

CCT

4000k

CRI

Switching type

DALI

Connected load

22.00 W

Lumen output

3,520.00 lm

Efficiency

160.0 lm/W

Downloads

Datasheet

LDT file

Manual

Technical data

Mains voltage

220 - 240V AC, 50/60Hz

Connection method

Plug-in terminal

Switching type

DALI

IP protection

Protection class

Ambient temperature

0 to +30 °C

Light Source

LED

CCT

4000k

CRI

Connected load

22.00 W

Lumen output

3,520.00 lm

Efficiency

160.0 lm/W

Optical system

Diffuser

Optical part material

PMMA

Housing material

Steel

Surface finish

Powder coated

Service lifetime (L80 B10)

50 000 h

Warranty

5 years

Illuminance Calculator

Room width (m) *

Enter room width (1-100 m)

Room length (m) *

Enter room length (1-100 m)

Room height (m) *

Enter room height (2-20 m)

Mounting heights of lights (m) *

Must be less than or equal to room height

Room type *

Select a room type

Use custom illuminance and uniformity values

Room cleanliness *

Select room cleanliness

Illuminance calculation completed successfully

Calculation Results

Number of luminaires

Average illuminance

- lx

Uniformity

Total power

- W

Product

Flux

Power

Total power

Total flux

Maintenance factor

0.8

Room dimensions

Area

Room type

Total flux per area

Total power per area

Floor Plan

Light distribution Map

Room cross-section

* This is an indicative calculation only. For a precise lighting design project, do not hesitate to contact us.

Want to save calculations and see your prices? Get in touch — we'll set up your account.

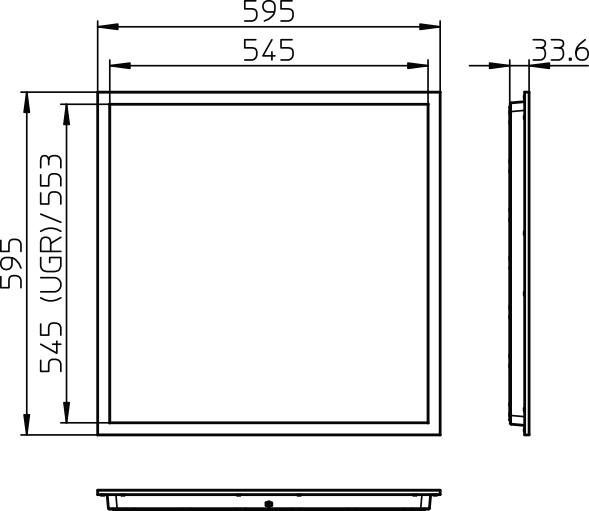

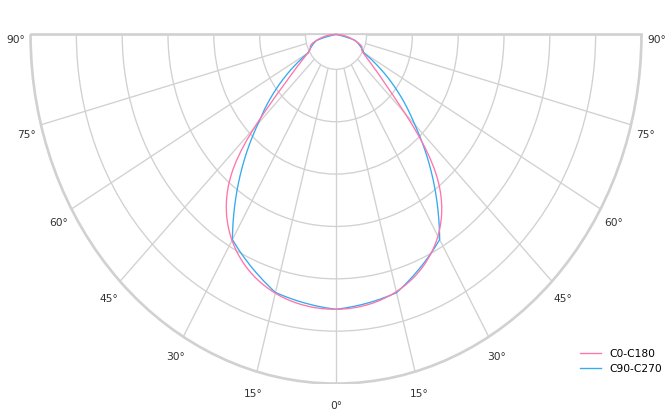

Dimmensions and light distribution

Accessories

Square suspension kit
