SQEA-S-830-1
Square easy is a 595x595 mm LED panel with state-of-the-art LED technology and LED source with 50,000 hours lifetime. Available in 3 power options, color temperatures 3000K/4000K with CRI 80+. Steel body with PMMA diffuser for optimal light distribution and DALI control option available. Fully compatible with existing lighting infrastructure. Ideal for offices, halls and commercial spaces. 5-year warranty.
Technical specifications
- Light Source
- LED
- CCT
- 3000k
- CRI
- 80
- Switching type
- Non-dimmable
- Connected load
- 22.00 W
- Lumen output
- 3,520.00 lm
- Efficiency
- 160.0 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
Non-dimmable
IP protection
20
Protection class
II
Ambient temperature
0 to +30 °C
Light Source
LED
CCT
3000k
CRI
80
Connected load
22.00 W
Lumen output
3,520.00 lm
Efficiency
160.0 lm/W
Optical system
Diffuser
Optical part material
PMMA
Housing material
Steel
Surface finish
Powder coated
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator

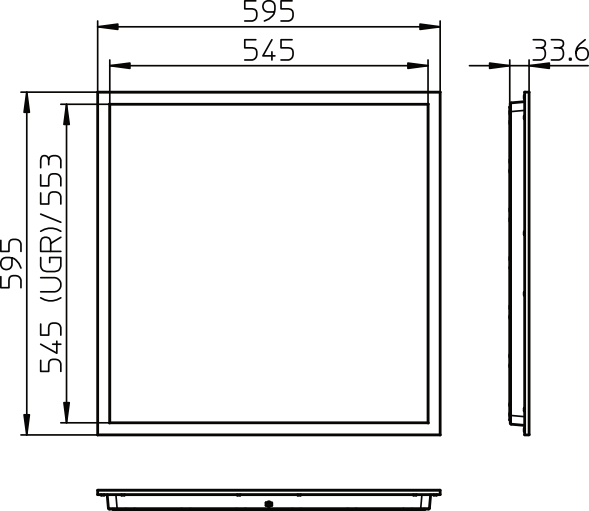

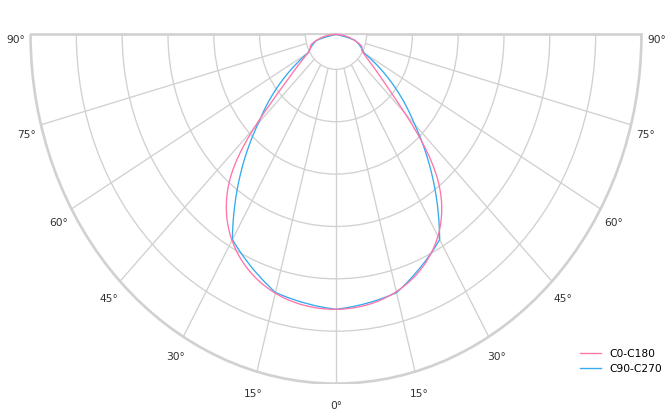

Dimmensions and light distribution
