Office solutions · LED
DIABLO-M-835-1-15-BL
Diablo is a compact 3-phase LED spotlight with integrated power supply and aluminum heatsink with 50,000 hours lifetime. Available in 3 power options, wide range of color temperatures (2700K-4000K) with CRI 80+/90+. Four light distribution types (15°, 24°, 36°, 60°) and DALI control option available. Ideal for commercial spaces, showrooms and households. 5-year warranty.
Technical specifications
- Light Source
- LED
- CCT
- 3500k
- CRI
- 80
- Switching type
- Non-dimmable
- Connected load
- 19.11 W
- Lumen output
- 2,786.96 lm
- Efficiency
- 145.8 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3-phase track adapter
Switching type
Non-dimmable
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3500k
CRI
80
Connected load
19.11 W
Lumen output
2,786.96 lm
Efficiency
145.8 lm/W
Ripple
5 %
Inrush current
7 A
Inrush time
28 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Die-cast aluminium
Surface finish
Powder coated
Height
132.00 mm
Diameter
90.00 mm
Weight
0.80 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing colors

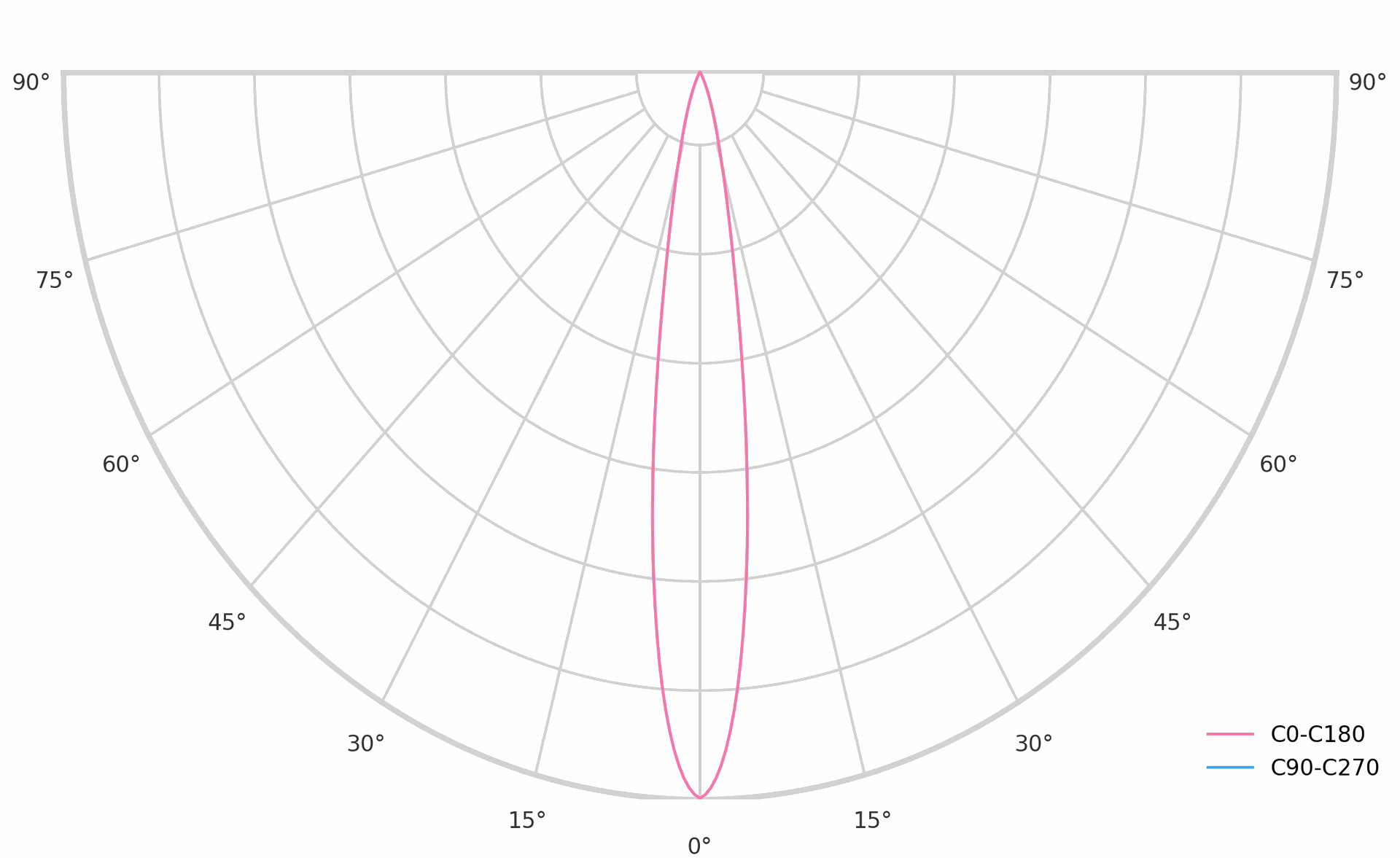

Dimmensions and light distribution
