Exterior solutions · LED

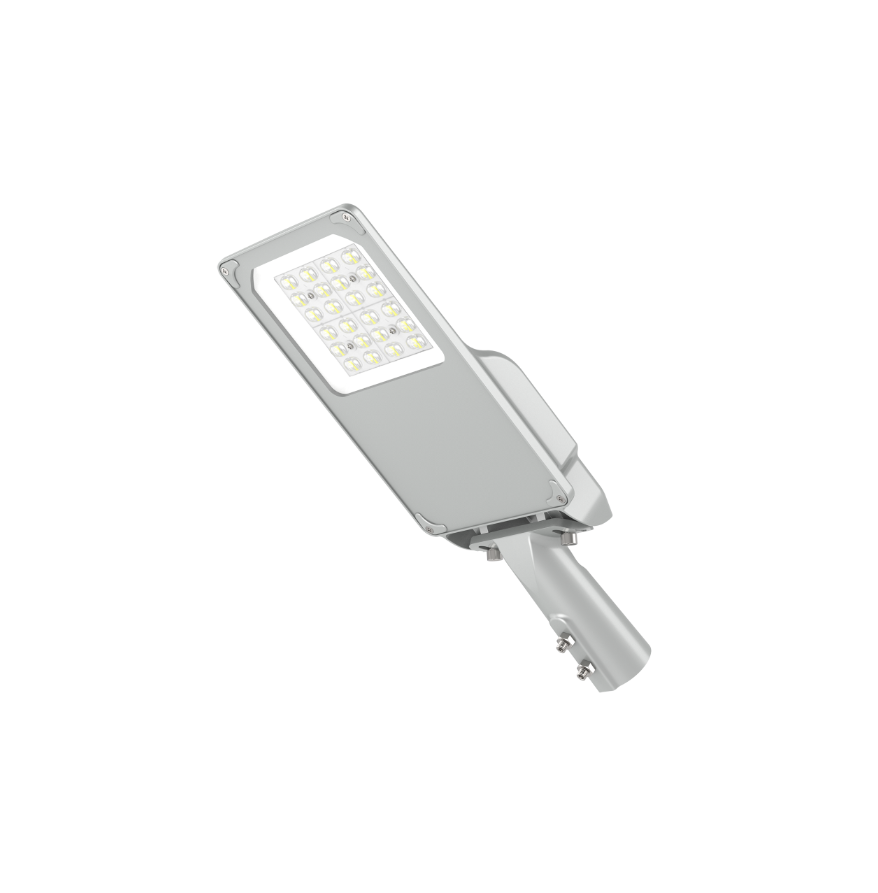

LUKA-L-722-1-C16505
Luka emits reliably efficient light on traffic roads and industrial areas to support safety and security outdoors. The smart function also offers a range of smart city functions.
Technical specifications
- Light Source
- LED
- CCT
- 2200k
- CRI
- 70
- Switching type
- Non-dimmable
- Connected load
- 50.70 W
- Lumen output
- 4,678.91 lm
- Efficiency
- 92.3 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
Non-dimmable
IP protection
66
Protection class
I
Ambient temperature
-40 to +40 °C
Light Source
LED
CCT
2200k
CRI
70
Connected load
50.70 W
Lumen output
4,678.91 lm
Efficiency
92.3 lm/W
Ripple
3 %
Inrush current
46 A
Inrush time
728 μs
Optical system
Lenses
Optical part material
Hardened glass
Housing material
Die-cast aluminium
Surface finish
Powder coated
Width
173.00 mm
Height
69.00 mm
Length
342.00 mm
Weight
5.00 kg
Service lifetime (L80 B10)
>100 000 h
Warranty
5 years
Dimmensions and light distribution
Dimmensions

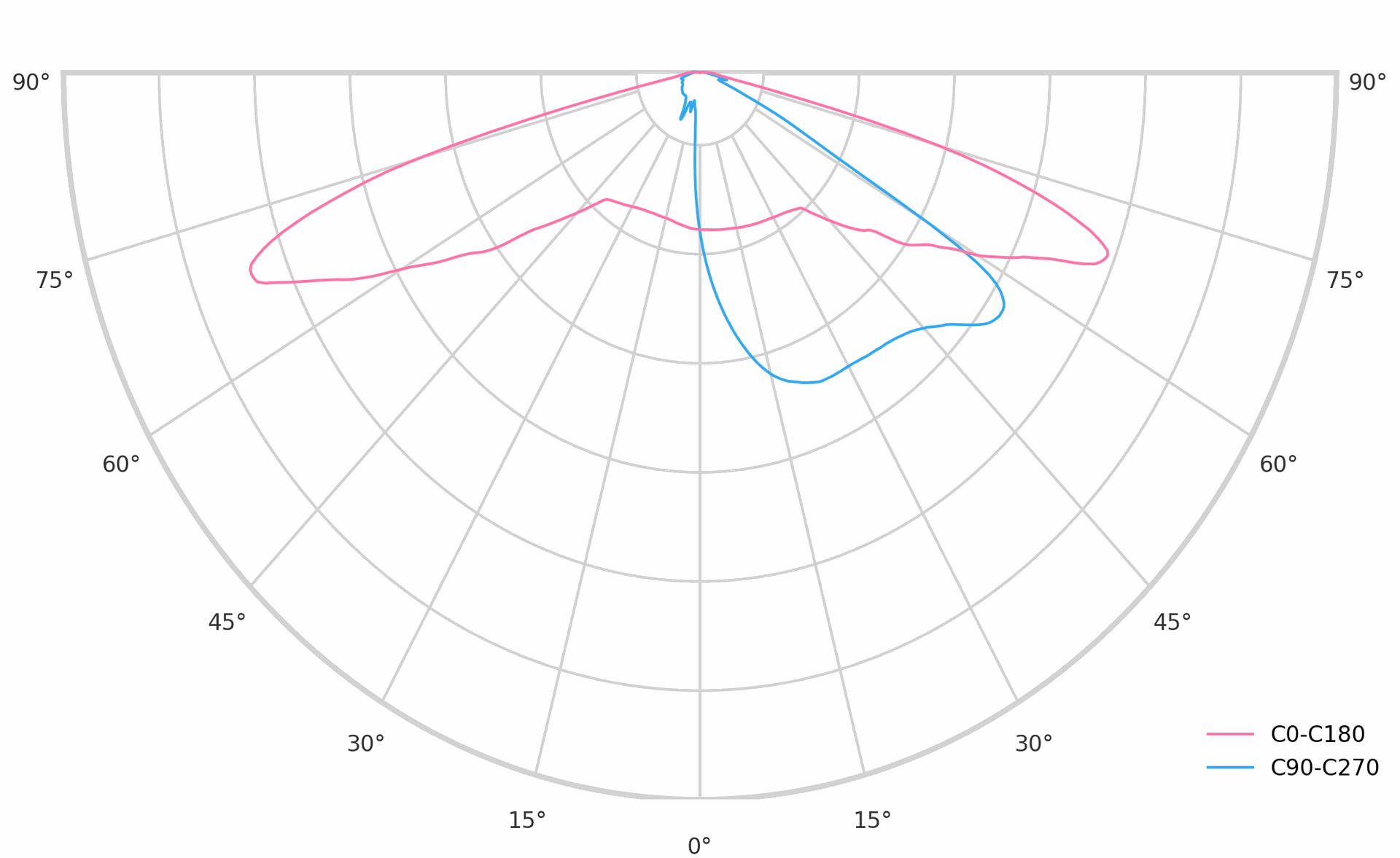

Polar curve
