Exterior solutions · LED
POS-S-740-1-C16926

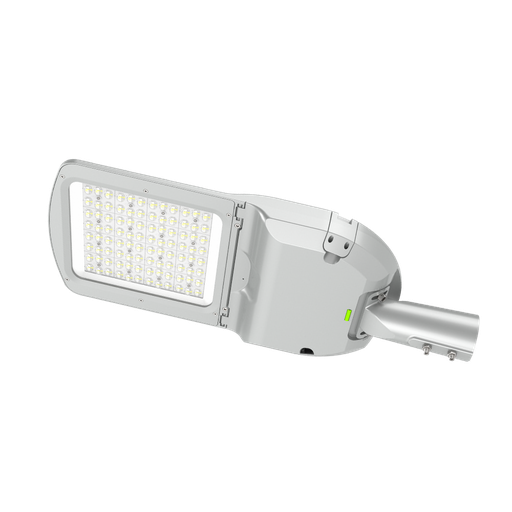

Pos emits reliably efficient light on traffic roads and industrial areas to support safety and security outdoors. The smart function also offers a range of smart city functions.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 70
- Switching type
- Non-dimmable
- Connected load
- 54.15 W
- Lumen output
- 7,670.10 lm
- Efficiency
- 141.6 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Screw terminal
Switching type
Non-dimmable
IP protection
66
Protection class
I
Ambient temperature
-40 to +50 °C
Light Source
LED
CCT
4000k
CRI
70
Connected load
54.15 W
Lumen output
7,670.10 lm
Efficiency
141.6 lm/W
Ripple
3 %
Inrush current
85 A
Inrush time
256 μs
Optical system
Lenses
Optical part material
Hardened glass
Housing material
Die-cast aluminium
Surface finish
Powder coated
Width
240.00 mm
Height
109.00 mm
Length
613.00 mm
Weight
5.10 kg
Service lifetime (L80 B10)
>100 000 h
Warranty
7 years
Dimmensions and light distribution
Dimmensions

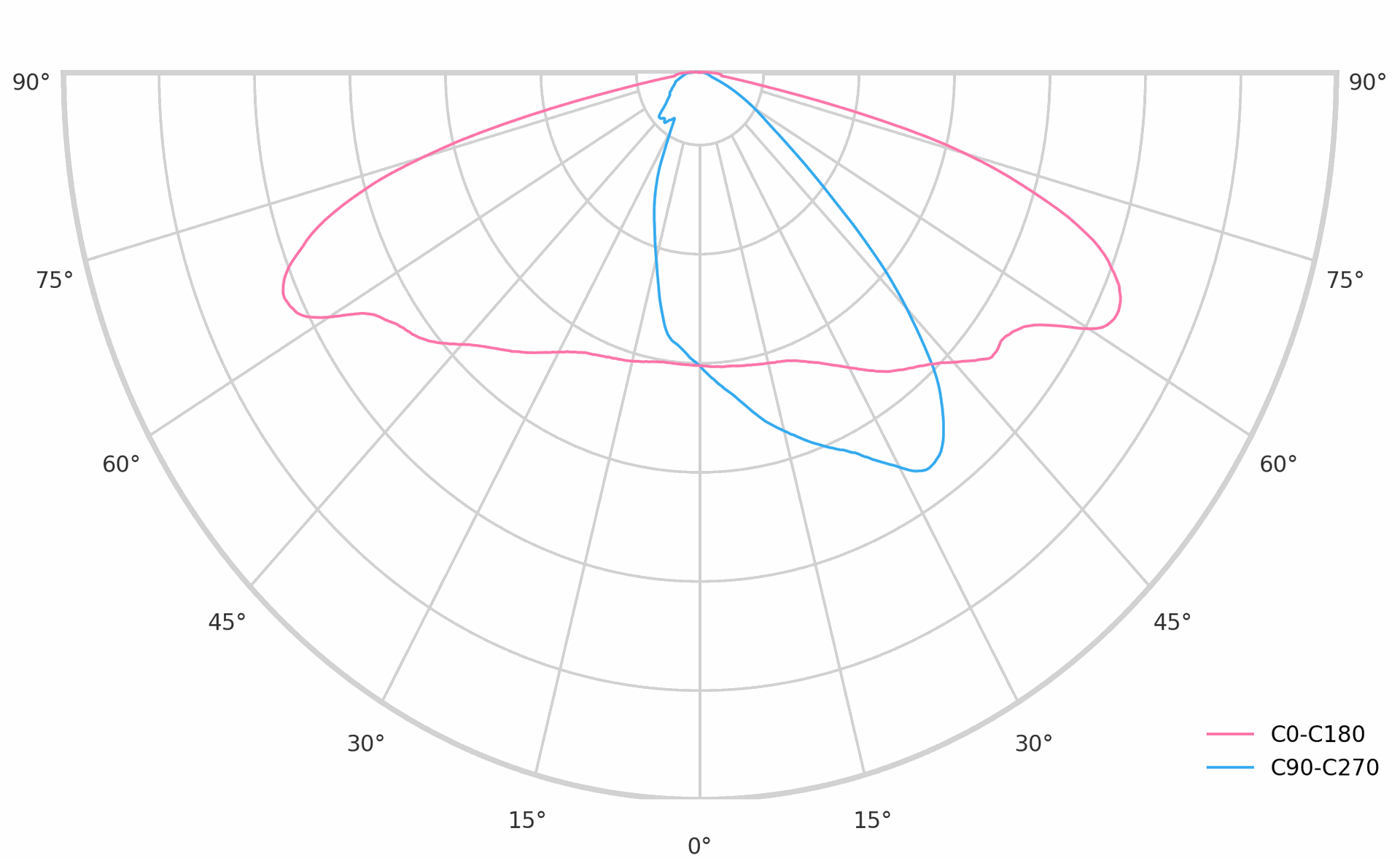

Polar curve
