WORT-M-940-2-ASYM-BL

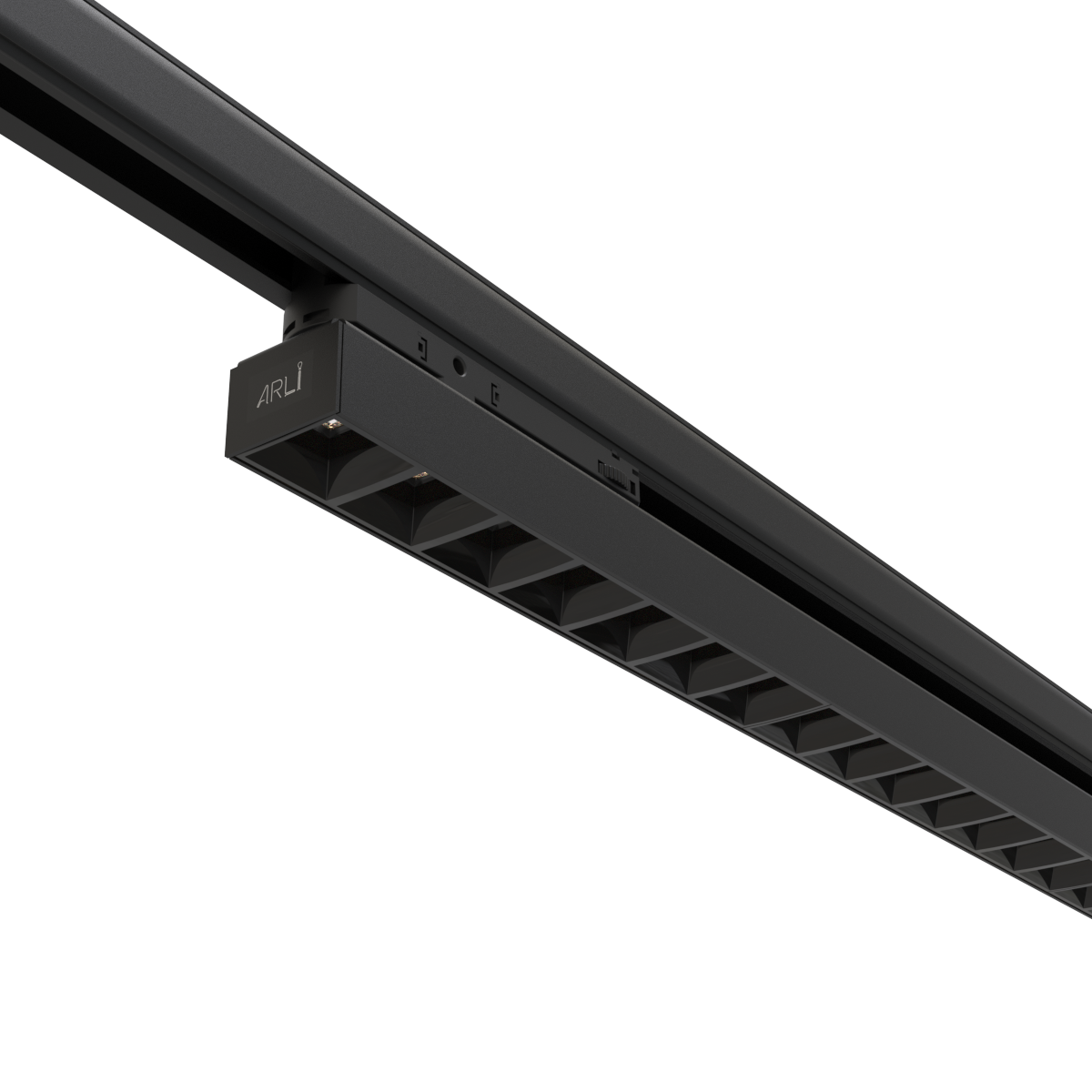

Worker Track Duo is a linear LED luminaire for 3-phase track system with LED source with 50,000 hours lifetime. Available in 3 power options, color temperatures 3000K/4000K/5000K with CRI 80+/90+. Five light distribution types (50°, 80°, ASYM, SYM, WAS) with special optics reducing glare and DALI control option available. Provides comfortable and natural lighting with easy track system installation. Ideal for offices and stores. 5-year warranty.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 90
- Switching type
- DALI
- Connected load
- 33.45 W
- Lumen output
- 3,218.40 lm
- Efficiency
- 96.2 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3-phase track adapter
Switching type
DALI
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
90
Connected load
33.45 W
Lumen output
3,218.40 lm
Efficiency
96.2 lm/W
Ripple
1 %
DALI address
1
Standby power
0.30 W
Inrush current
15 A
Inrush time
100 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Aluminium
Surface finish
Powder coated
Width
44.00 mm
Height
53.00 mm
Length
1,122.00 mm
Weight
2.80 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing colors

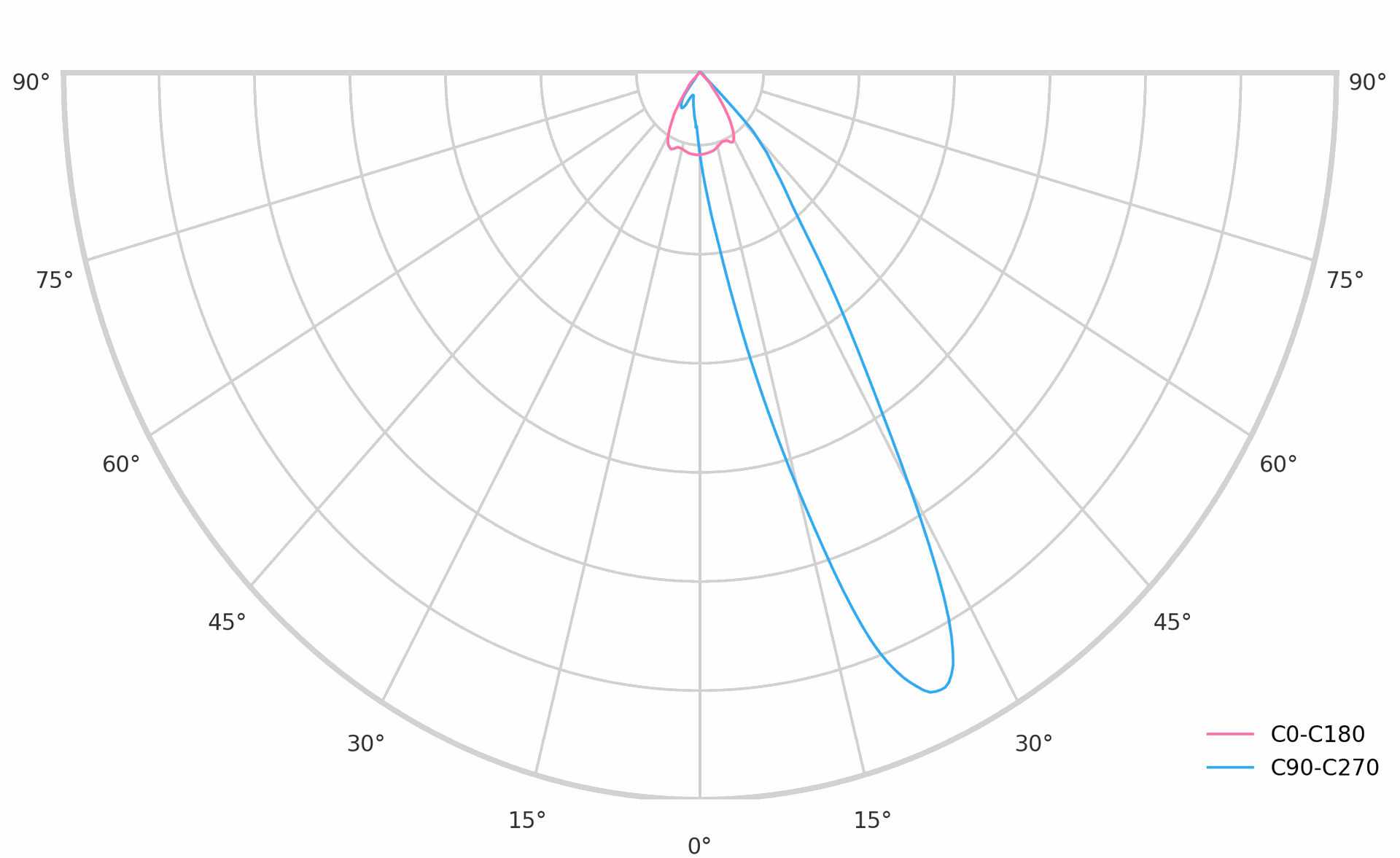

Dimmensions and light distribution
